7.10. ELECTRICAL CONNECTIONS
Electrical equipment: screwdrivers, wire cutters, wire strippers, etc.
Connections must be made in accordance with the installation diagrams ( Chap. 7.5) and the electrical diagrams which
remain the reference.
The user is responsible for supplying the power and control cables, which are specified on the installation diagram.
Control cables must be kept separate from power cables to avoid interference and must therefore be routed through separate
uprights.
• Connect the two phases of the power supply and the earth connection (single-phase 110/240 VAC - 50/60 Hz) to the circuit
breaker. If necessary, cut off the excess length of cable. Protect the line upstream with a 16 A circuit breaker.
AS1635R01
CN1
• Make sure that the incoming cables are not live. All internal connections were done in the factory (pictograms, lock
actuation, position detector, etc.).
• Make sure that the metal parts of the equipment are securely connected to the main earth (vertical uprights, head unit,
etc.).
• Make any other connections according to the installation specifications (control cables, card reader connection, etc.).
• Switch on and put the control logic access panel back in place.
110/240 VAC
power supply
Earth connection
AS1635 - TRS - CN1 - 1/2
AS1633R01
CN1
W18
W17

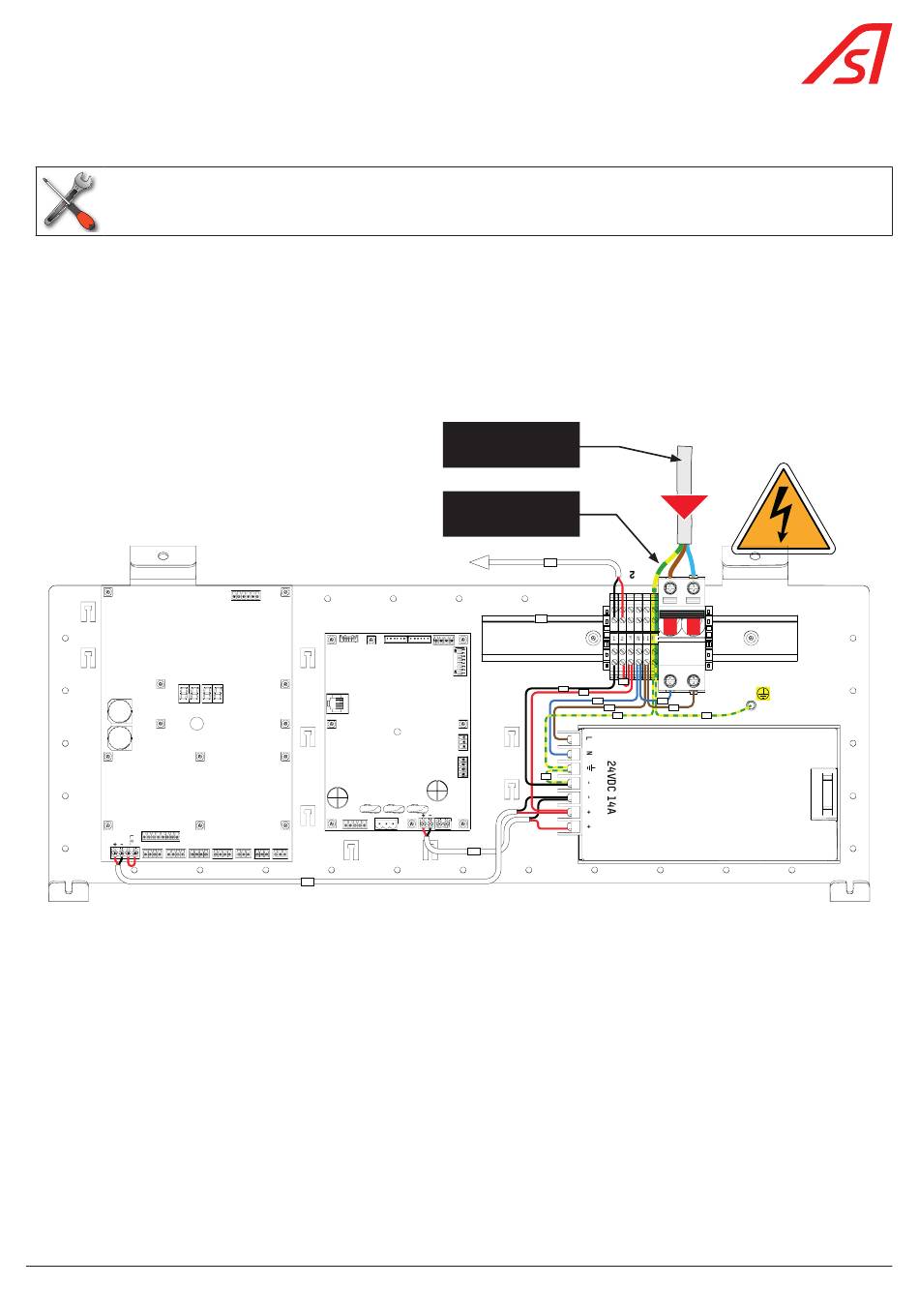

Fig. 46 - Electrical Connections
