Automatic Systems TRS 372 Technical Manual page 35

TRS 372
4. Attach the centre uprights (B) to the head unit (A) using the screws (1), fan-lock washers (2) and flat washers (3), feeding
the electrical cables through the inside of the unit.
3
1
2

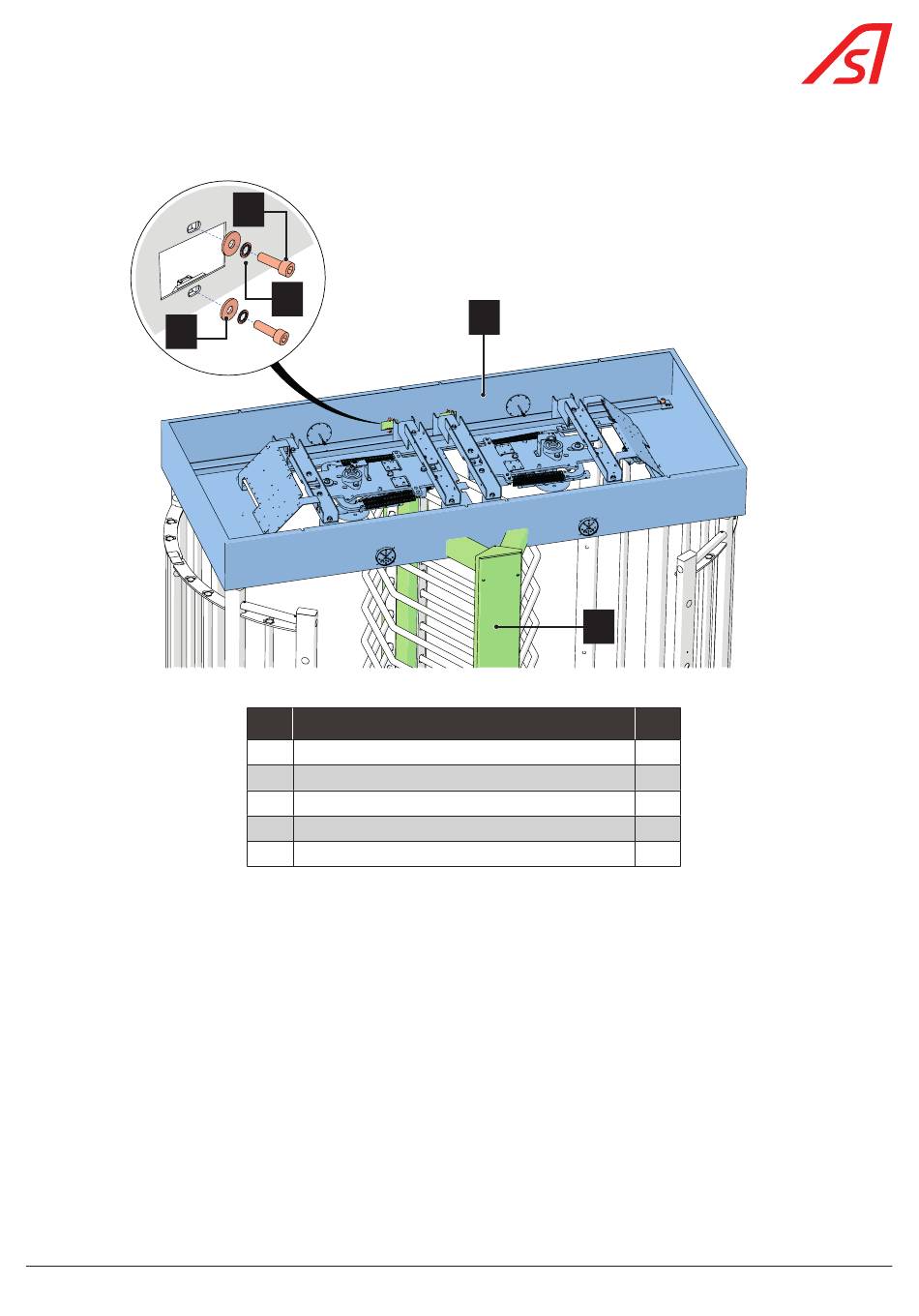

Fig. 26 - Attaching the Head Unit to the Centre Uprights
ITEM DESCRIPTION
A Head unit
B Aluminium upright assembly
1 Screws DIN 933 M6 x 20
2 Fan-lock washer DIN 6798 M6
3 Flat washer DIN 9021 M6
A
B
33
QTY.
1
2
4
4
4
