7.9.2. MOUNTING THE CARD READER BOX(ES) (OPTIONAL)
1. If this has not already been done, remove the caps from the mounting holes and cable routing inlet on the upright of the
curved part.
2. If this has not already been done, feed the card reader connection cable through the upright. The cable must connect the
card reader to the electronics in the head unit.
SEE THE ELECTRICAL DIAGRAM(S) SUPPLIED WITH THE EQUIPMENT FOR CONNECTING THE CARD READER(S).
3. Position the intermediate gasket (2) on the upright (A) and attach the card reader box (1) using the screws and washers
supplied (5) + (6) + (7).
4. Position the gasket (4) on the card reader box and attach the front panel (3) using the stainless-steel screws (8).
See also Chapter 6.7. Box for Card Reader Integration (Optional), page 17.
1 The front panel of the card reader box can be customised according to the type of card reader required. Please contact your regional sales manager for
further information.
2
1
7
6
5

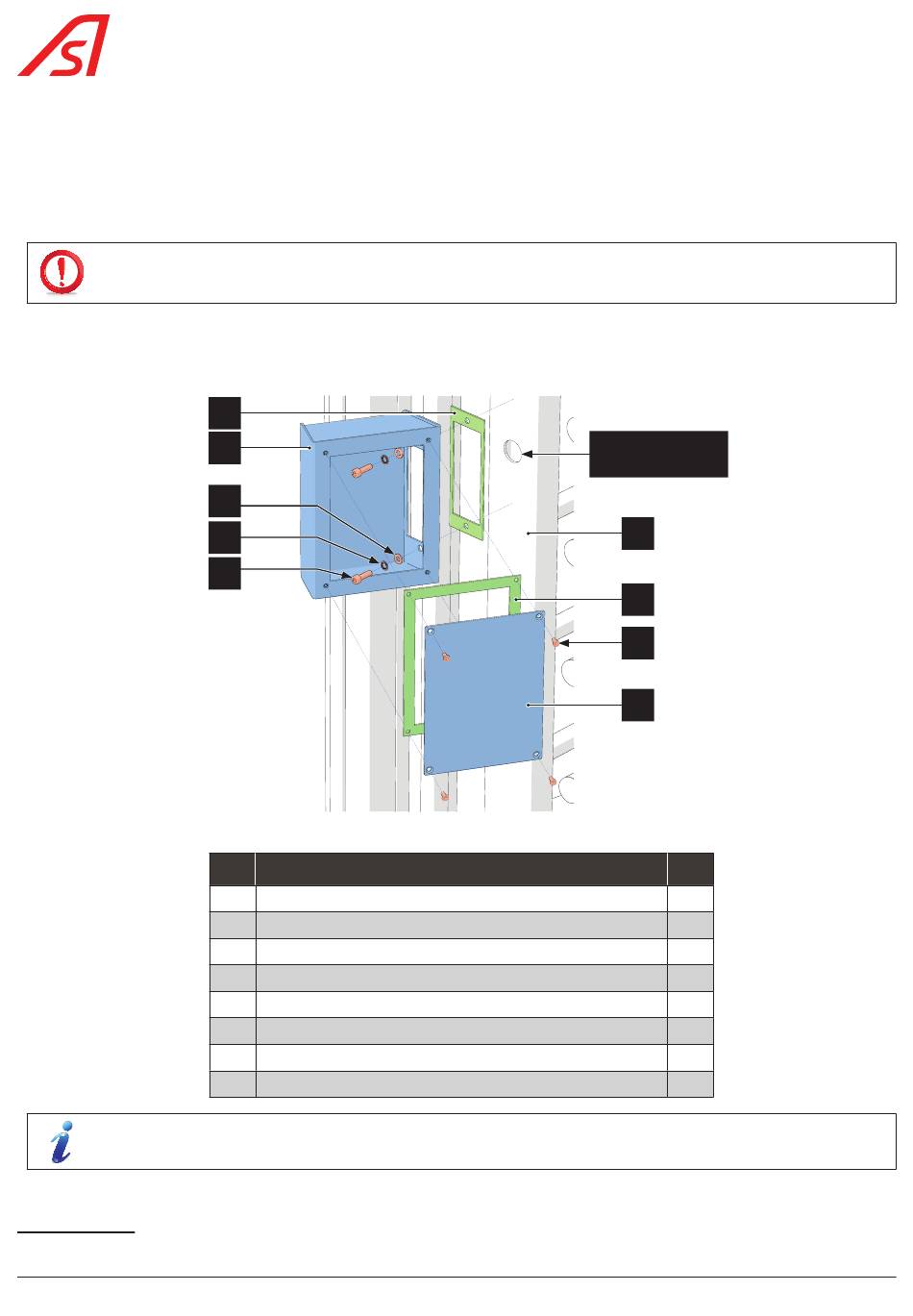

Fig. 45 - Mounting the Card Reader Box
ITEM DESCRIPTION
1 Card reader box
2 Intermediate gasket on upright
3 Front panel for card reader box
4 Gasket for card reader box
5 Screws DIN 912 M6 x 20
6 Fan-lock washer DIN 6798 M6
7 Flat washer DIN 125 M6
8 TORX stainless-steel screws DIN 965C - ISO14581 M4 x 10
Cable routing inlet
1
44
TRS 372
A
4
8
3
QTY.
1
1
1
1
2
2
2
4
