7.7.12. MOUNTING THE ROOF

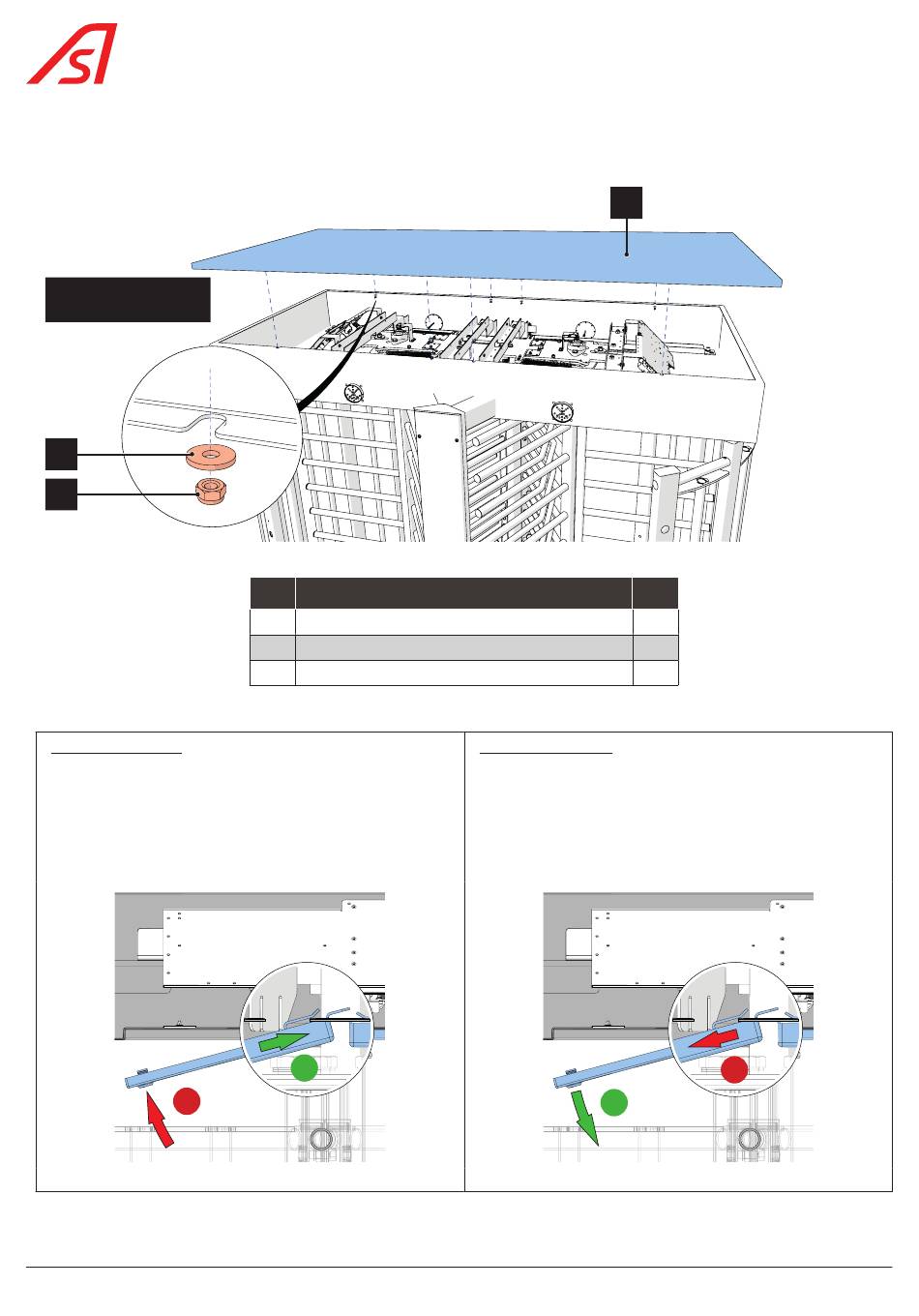

The roof (A) is attached with the bolts (1) and washers (2).
8 roof mounting holes (4 on
each side)
2
1
7.7.13. INSTALLING / REMOVING THE DOOR
Installing the door:
1. Insert the door into the recess in the head unit and
overlap the fold of the door with the fold of the unit.
2. While pushing the door, tip it towards the unit so that it
engages in the recess.
3. Once it is correctly positioned, turn the key clockwise
180° to lock the door.
2
Fig. 34 - Installing the door
Fig. 33 - Mounting the Roof
ITEM DESCRIPTION
A Head unit roof
1 Lock nut DIN 985 M6
2 Large flat washer DIN 9021 M6
1
A
Removing the door:
1. Turn the key 180° anticlockwise while supporting the
door.
2. Then let the door swing down on its own.
3. While supporting the door, pull it towards you to pull it
out of its position in the unit and remove it.
2
Fig. 35 - Removing the door
38
TRS 372
QTY.
1
8
8
