4. Check that the elements of the fixing frame are perpendicular to each other and check the dimension of the passageway
(670 mm):
5. Position the fixing frame in the shaft:
- Check that it is correctly oriented with the direction of passage.
- Feed the power supply and remote-control cable conduits through the uprights supplied.
- Make sure that the mounting rails are recessed relative to the finished floor level as shown on the installation diagram
(the painted part of the rails must remain above the concrete).
Finished floor level
6 7 0
6 7 0

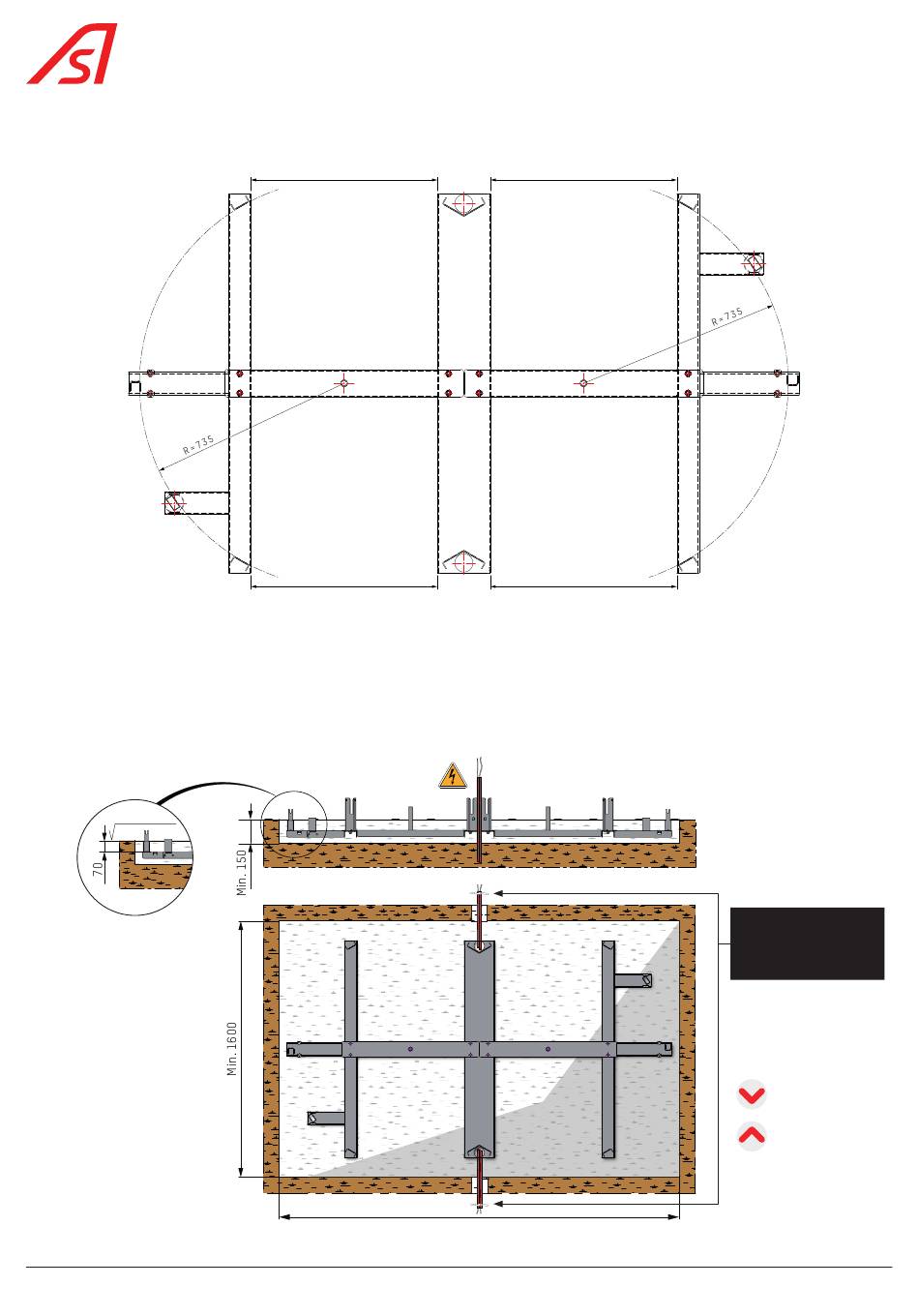

Fig. 38 - Centre Distance for the Fixing Frame
Min. 2500
40
6 7 0
6 7 0
2 Ø25 PVC tubes for routing
the control and power cables
b
A
