7.7. PROCEDURE FOR INSTALLATION ON A FINISHED FLOOR
7.7.1. PREPARING FOR INSTALLATION ON A FINISHED FLOOR
1. Allow for the conduits (not supplied) for routing the cables for the power supply and any remote controls in the places
shown on the installation diagram (CH6762). Allow for 3 m of extra cable above the floor, as the connections to control
circuit are made in the head unit.
2. Make sure that the floor on which the equipment is to be installed is flat (free of rough spots), perfectly level and made of
standard concrete or another non-combustible material (strong enough to stiffen the whole).
3. Draw the main axes in the space provided for the installation of the TRS 372:
1203

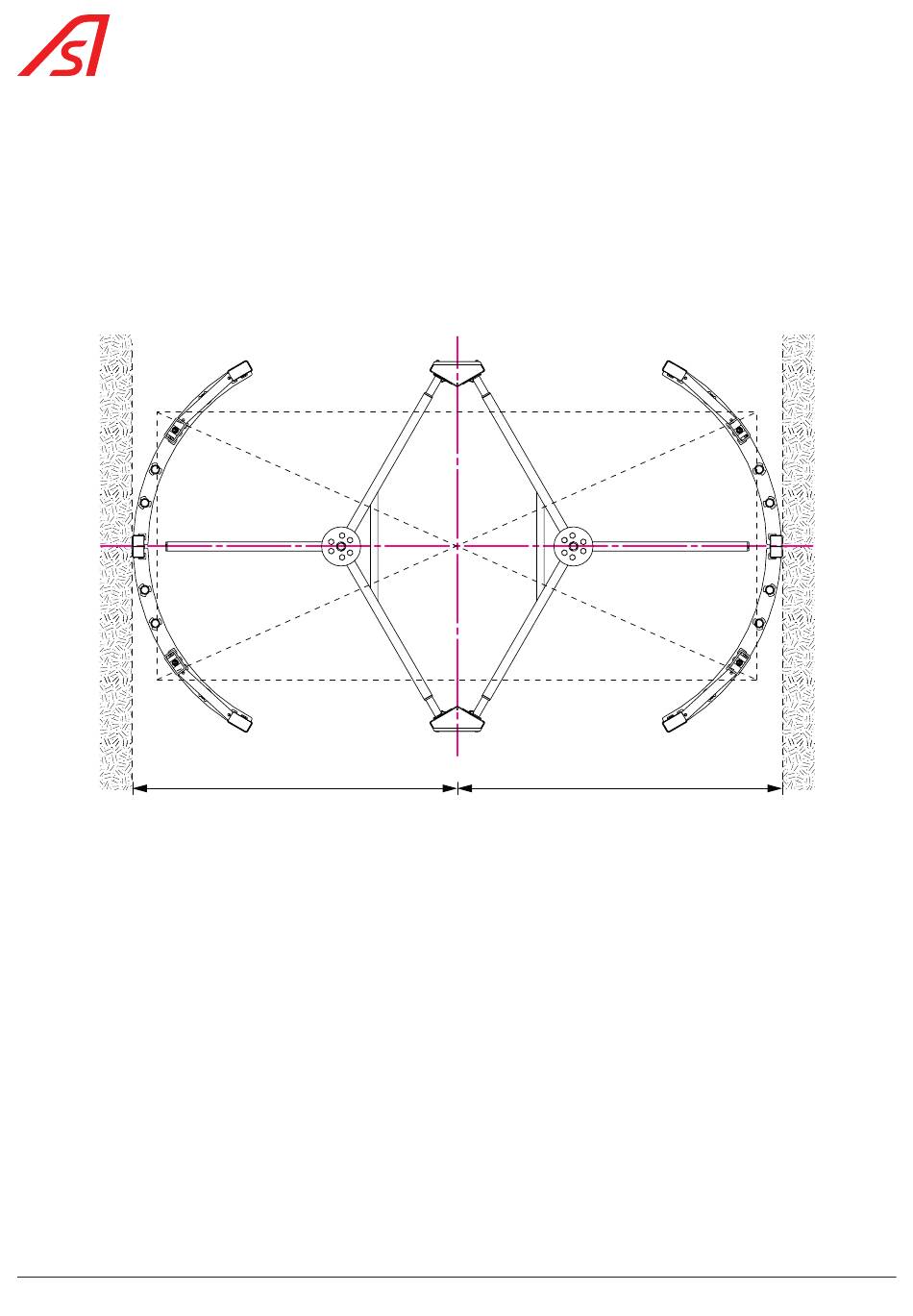

Fig. 16 - Drilling Templates - Drawing the Main Axes (Step 1)
1203
24
TRS 372
