TRS 372
7.8. INSTALLATION PROCEDURE WITH FIXING FRAME (OPTIONAL)
7.8.1. PREPARING FOR INSTALLATION WITH A FIXING FRAME
1. Allow for the conduits (not supplied by AS) for routing the cables for the power supply and any remote controls in the places
shown on the installation diagram (CH6731). Allow for 3 m of extra cable above the floor, as the connections are made in
the head unit.
2. Prepare the shaft or the formwork for the concrete slab.
3. Assemble the various parts of the fixing frame using the screws and washers supplied.
1
P/N DESCRIPTION
1
Fixing frame (2) TRS370
2
Fixing frame (1) TRS370
3
Fixing frame (3) TRS372
Min. 2500

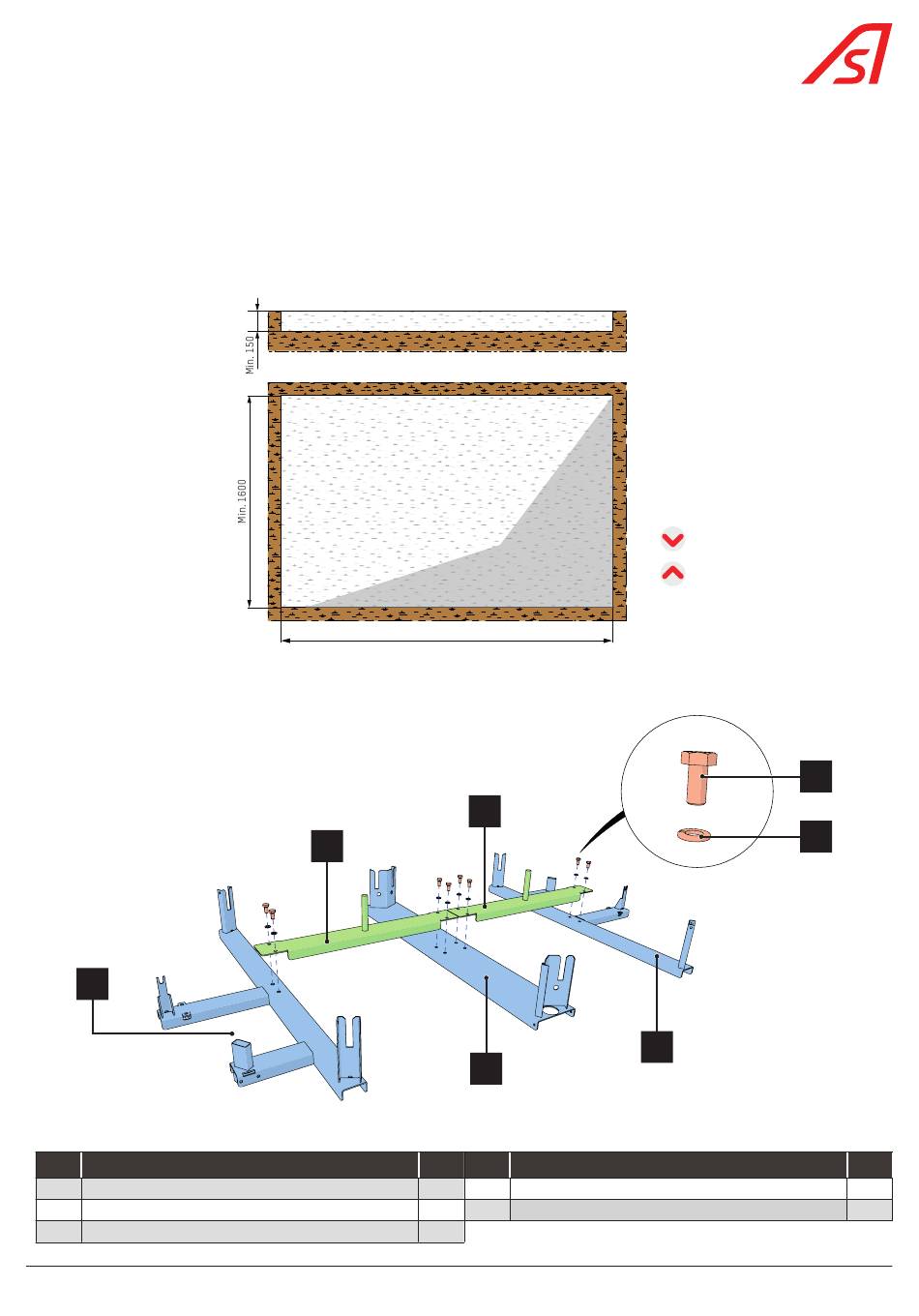

Fig. 36 - Shaft Dimensions
2
2
3
Fig. 37 - Assembling the Fixing Frame (GBR-E-0004248)
QTY.
P/N DESCRIPTION
2
4
2
5
1
39
b
A
1
GROWER galvanised lock washer M12 ZN DIN 127
Galvanised screw DIN 933 TH T.F. M 12 x 25
5
4
QTY.
9*
9*
