9. CONNECTIONS

9.1. Condensate Discharge Connection

All condensing boilers generate condensing discharge. The amount of the condensate
Information
water depends on the working conditions of your appliance. This can be up to 1.7 litres
condensate water an hour.
The condensation water must be connected to a drain with the help of a plastic hose which is connected to
the end of siphon. The use of standard discharge hose ,which is given with boiler (50 cm), is recommended
for connection to the drain. The addition of 1 cable connection on the hose should be made for fixing.
If drain hose will be connected to drain outside of the building, insulation should be provided to prevent
freeze of hose.
The condensate discharge hose and interconnection parts must be made of plastic material.
All horizontal parts must be connected at a slight 2° or 3° downwards incline to ensure to a good flow.

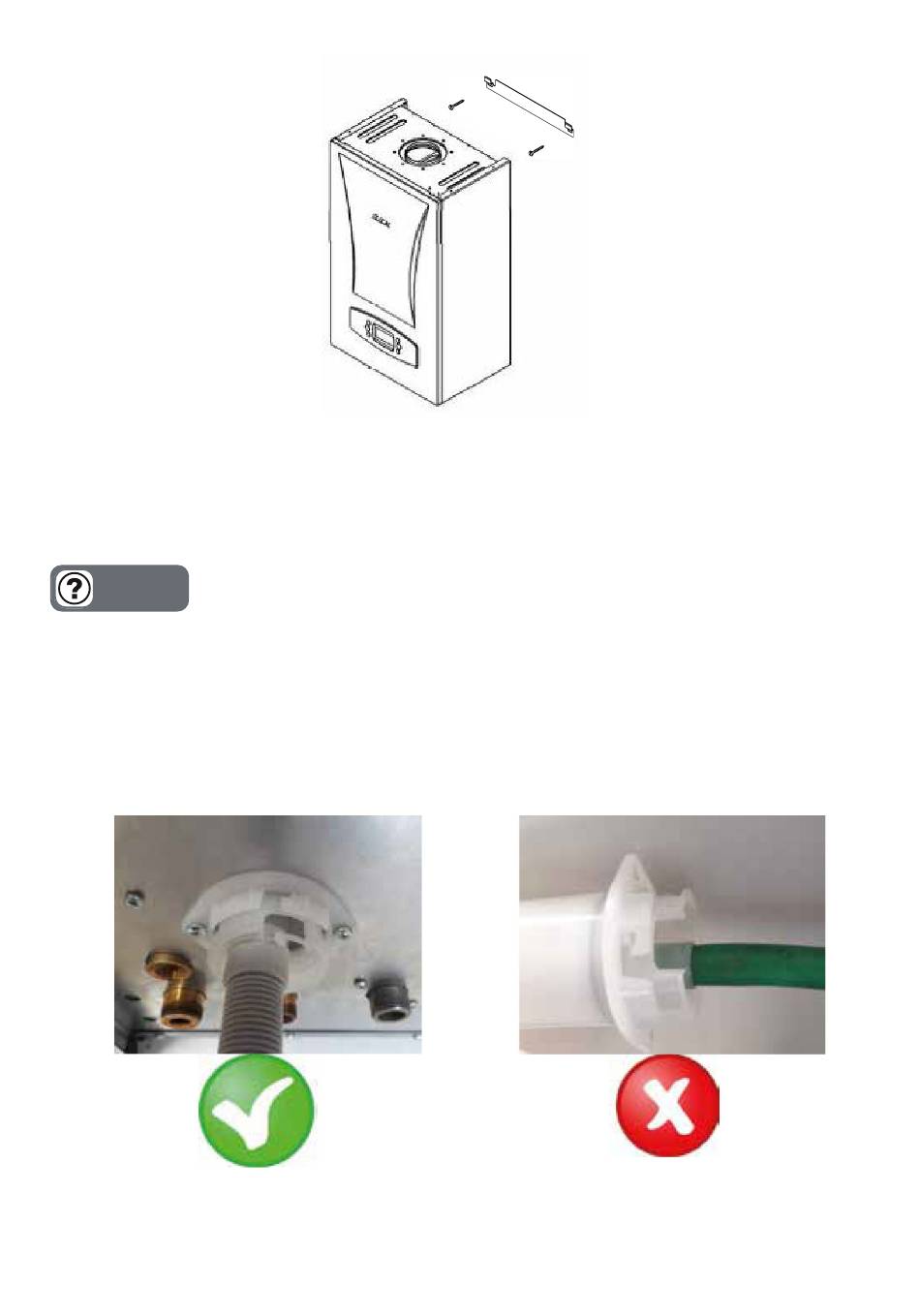

Figure 10
