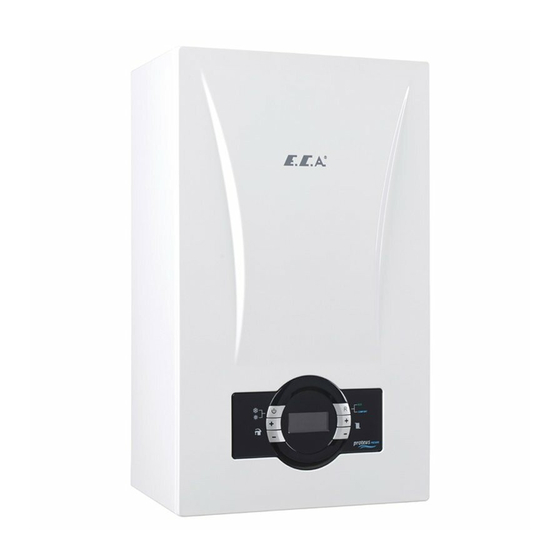

Summary of Contents for E.C.A. PROTEUS PREMIX 14 HM NG ERP UK

  • Page 1 RUCTIONS...

  • Page 2: Table Of Contents

    INDEX 1- SAFETY RULES AND WARNINGS......1.1. Safety Instructions....................... 1.2. Water Systems & Gas Supply Line................1.3. Gas Type Conversion....................1.4. Installation........................1.5. Boiler Start Up......................1.6. Usage and Maintenance..................... 2- 2- NOTES ON THE DOCUMENTATION................. 2.1. Installer’s Responsibility..................... 2.2. Definition of Symbols....................3- 3- USEFUL INFORMATION ON PRODUCT..............

  • Page 3: 1-Safety Rules And Warnings

    1-SAFETY RULES AND WARNINGS The boiler must be installed in indoor spaces under normal conditions. However, it can be operated in a suitable cabinet in places such as garage, open balcony. Please consult 1.1. Safety Instructions E.C.A for proper cabine sizes. When a gas leak is found or suspected;...

  • Page 4: 2- 2- Notes On The Documentation

    Code of Practice which is available from the Heating and Hotwater Industry Council who manage and promote the scheme. Visit centralheating.co.uk or installersfirst.co.uk for more information PRODUCT NAME PRODUCT CODE GC NUMBER PROTEUS PREMIX 14 HM NG ERP UK 8116941010 47-814-30 PROTEUS PREMIX 20 HM NG ERP UK 8116944010 47-814-29...

  • Page 5: Installer's Responsibility

    HM Model (Boiler) : Both Central Heating (CH) and Domestic Hot Water (DHW). It means that you may connect HCH Model (Heat Only): Only for Central Heating (CH). ground wire. HST Model (System Boiler) : Both for Central Heating (CH) and Domestic Hot Water (DHW) with external storage tank (not included).

  • Page 6: 3- 3- Useful Information On Product

    3.4. Boiler Features 3- USEFUL INFORMATION ON PRODUCT 3.1. Efficient Use of the Combi Boiler in Terms of Control panel is ergonomic and easy to use. The Proteus Safety and Energy Consumption Premix condensing boiler with elegant plastic control panel and advanced LCD screen provides ease of use Isolation of your building is extremely important.

  • Page 7: 4- 4- Technical Data

    4- TECHNICAL DATA PROTEUS PROTEUS PROTEUS PROTEUS PROTEUS PROTEUS PREMIX 14 PREMIX 20 PREMIX 24 PREMIX 28 PREMIX 30 PREMIX 35 Product type Unit HM-HCH- HM-HCH- HM-HCH- HM-HCH- HM-HCH- HM-HCH- Gas Category I2H, I3P, I2Esi, I2E(S), II2L3P, II2H3P, II2ELL3P, II2Esi3P Flue Types (X), C (X), C...
  • Page 8 Domestic Hot Water (only valid for HM) Min. Domestic flow for operating L�min 2 (±%10) 2 (±%10) 2 (±%10) 2 (±%10) 2 (±%10) 2 (±%10) Min. Domestic flow for closing L�min 1,5 (±%10) 1,5 (±%10) 1,5 (±%10) 1,5 (±%10) 1,5 (±%10) 1,5 (±%10) 12 ±%15 14 ±%15 10 ±%15 (ΔT...

  • Page 9: 5- 5- Erp Technical Data

    5- ERP TECHNICAL DATA Proteus Premix Boiler ERP HM MODEL Units Supplier's name or trademark E.C.A. Proteus Proteus Proteus Proteus Proteus Proteus Supplier's model identifier Premix Premix Premix Premix Premix Premix Space Heating-Temperature application Medium Seasonal Space heating Efficiency Class Water heating Water heating load profile Rated heat output (P...

  • Page 10: Package Label Calculations

    5.1. PACKAGE LABEL CALCULATIONS Package fiche for boilers indicating the space heating energy efficiency of the package 5.1.1. Package Fiche-Boilers Seasonal space heating energy efficiency of boiler “T”: The value of the seasonal space heating energy efficiency of the preferential space heater, expressed in %. Temperature Control Class I = 1%, Class II = 2%, Class III = 1.5%, from fiche of temperature control...
  • Page 11 Supplementary Heat Pump from fiche of heat pump ''II' : The factor for weighting the heat output of preferential and supplementary heaters of a package as set out in the following table. Seasonal space heating energy efficiency (in %) - 'T ') x 'II' = Solar Contribution and Supplementary Heat Pump...
  • Page 12 Solar Contribution Auxillary electricity from fiche of solar device ( 1.1 x 'I' - 10 % ) x 'II' - 'III' - 'I' = + Water Heating Energy Efficiency of Package under Average Climate Water Heating Energy Efficiency Class of Package under Average Climate Water Heating Energy Efficiency under Colder and Warmer Climate Conditions Colder: - 0.2 x...

  • Page 13: 6- 6- Using The Boiler

    6- USING THE BOILER Once the Reset button is pressed when operating in Comfort mode, the boiler will switch to Eco mode. Then when Reset button is pressed again, the unit will 6.1. Switching Off the Boiler switch to Comfort mode. You can switch off the boiler by holding down the ON/ OFF C-Domestic Hot Water Increase Temperature button for 3 seconds.

  • Page 14: Operation Functions

    7.3. Operation Functions 7.3.6. ECO Mode: By pressing the "Reset" button, Eco-Comfort modes can be switched. When Eco 7.3.1. Standby (OFF Mode): The mode where boiler can mode is active, "Eco" icon is displayed on the LCD be set to standby mode. In this mode, no requests for heating screen.

  • Page 15: Error Codes And Description

    8-ERROR CODES AND DESCRIPTION Error Error Type Possible Cause Troubleshooting Code 1- Check that the gas valve is open. 2- Check if there is gas in installation. E01 Ignition Fault No gas connection for combi boiler. 3- Press reset button. 4- If the error is still present (or persists) after reset, notify gas safe engineer.
  • Page 16 1- Press reset button. Measurement deviation Temperature sensors might be 2- If the error is still present (or fault of temperature defective. persists) after reset, notify gas sensors safe engineer. 1- Press reset button. Error on Temperature No temperature is detected by 2- If the error is still present Sensor for Supply Water temperature sensor for supply water.
  • Page 17 1- Check water pressure in heater installation of your boiler. 2- Fill the system with water until the pressure reaches 1.5-2 bar (device will eliminate It occurs when water pressure sensor error when the pressure is over Low Water Pressure Fault detects a relatively low water pressure 0,8 bar).

  • Page 18: Warranty And Service

    9-WARRANTY AND SERVICE 7.The boiler has to be installed at an accessible area where Engineers can perform servicing without health and safety risk. Warranty Registration 8.Cupboard installations must provide minimum working clearances as detailed in the installation manual. Homeowner will provide removal of cupboards, kitchen units or trims in order to gain Scan the QR code to register your access for service.
  • Page 19 Charges 10.Visits by the service personnel would be charged to customer if; Servicing and Commissioning appointments are any failure caused by contaminated water in the system charged at a fixed price inclusive of VAT, with the price the boiler is not accessible or an engineer cannot gain being dependant on the product.
  • Page 20 Organize Sanayi Bölgesi 3.Kısım Mustafa Kemal Bulvarı No:13 45030 MANİSA + 90 236 213 00 21 SALES & TECHNICAL SUPPORT Call Center Tel:+44 800 640 9988 Office Tel: +44 203 978 1212 www.ecaboilers.co.uk/warranty-registration complate and return in the envelope provided *We reserve the right to make technical changes and improvements in our products without any...

This manual is also suitable for:

Proteus premix 20 hm ng erp ukProteus premix 24 hm ng erp ukProteus premix 28 hm ng erp ukProteus premix 30 hm ng erp ukProteus premix 35 hm ng erp ukProteus premix 14 hst ng erp uk ... Show all
