INSTALLATION
INSTALLING THE OIL CONTAINER
• Locate 2 Brackets at the hood bottom, one on
each side, near the back of the range hood.
• Align the oil container with the hood body and
slide it, from front to back, into the Brackets.
8

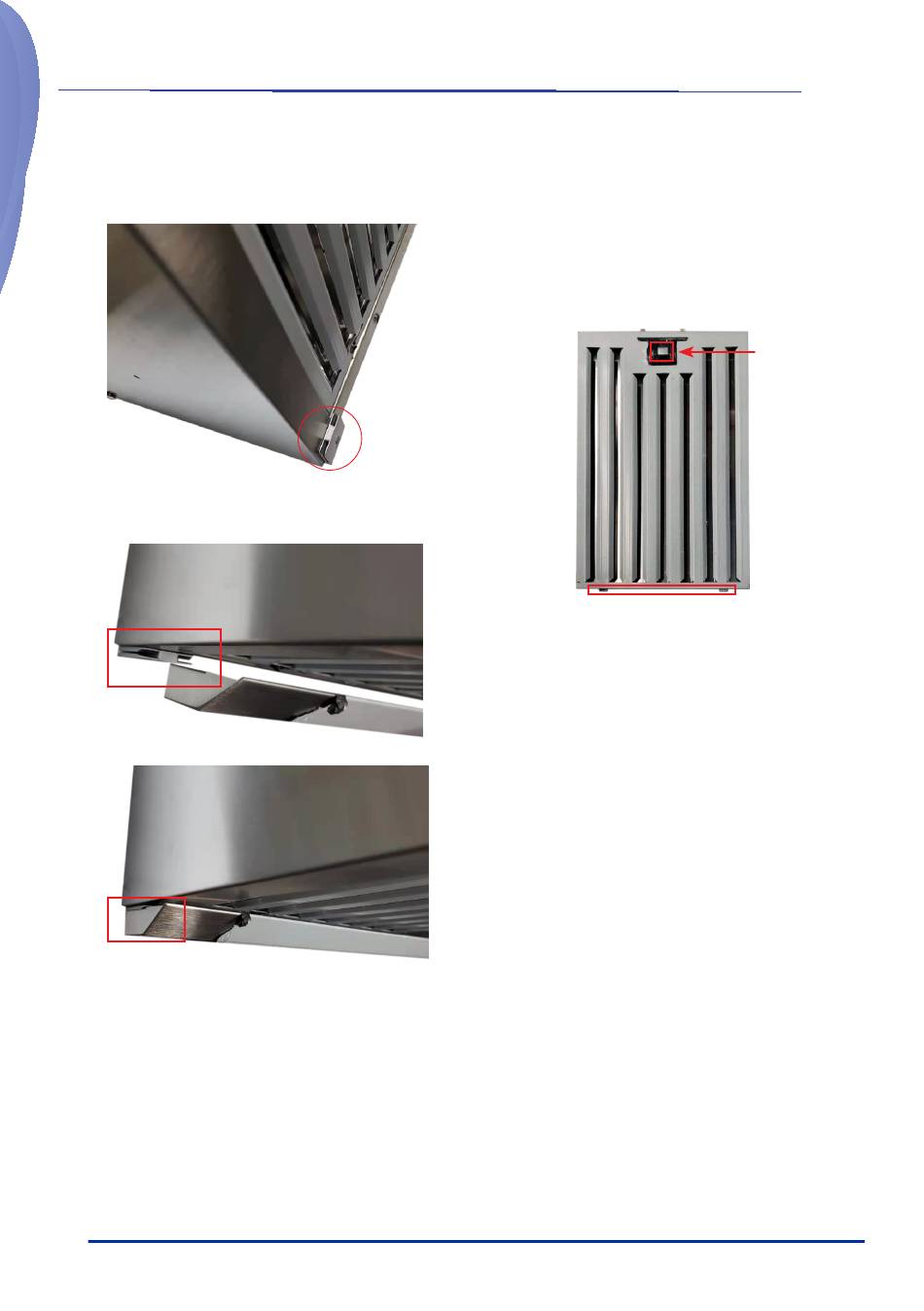

INSTALLING THE BAFFLE FILTERS
• Peel off the protective film from the baffle
filters if there's any.
• Align the baffle filter's bottom pins to the
holes on the hood. (Step 1)
• Pull and hold the latch. The top pins of the
baffle filter will retrack into the filter while the
latch is pulled. (Step 2)
Filter
Top
Filter
Bottom
• Keep pulling and holding the latch and push
the top end of the baffle filter upwards till it
reaches the hood.
• Release the latch to lock the baffle filter in
place.
• Repeat these steps to install the rest of the
baffle filters.
Note
• Make sure all baffle filters are securely
locked and won't come off.
• These Baffle Filters collect the oil/grease
while you cook. There's no need to install
other types of filters.
• Clean the Baffle Filters every 2 to 3
months regularly. Follow the cleaning guide
in Page 10.
COMPLETING THE INSTALLATION
Turn blower ON in the control panel. Check all lights
and fan operations.
Step 2:
Pull and hold the
latch.
Step 1:
Align the pins.
