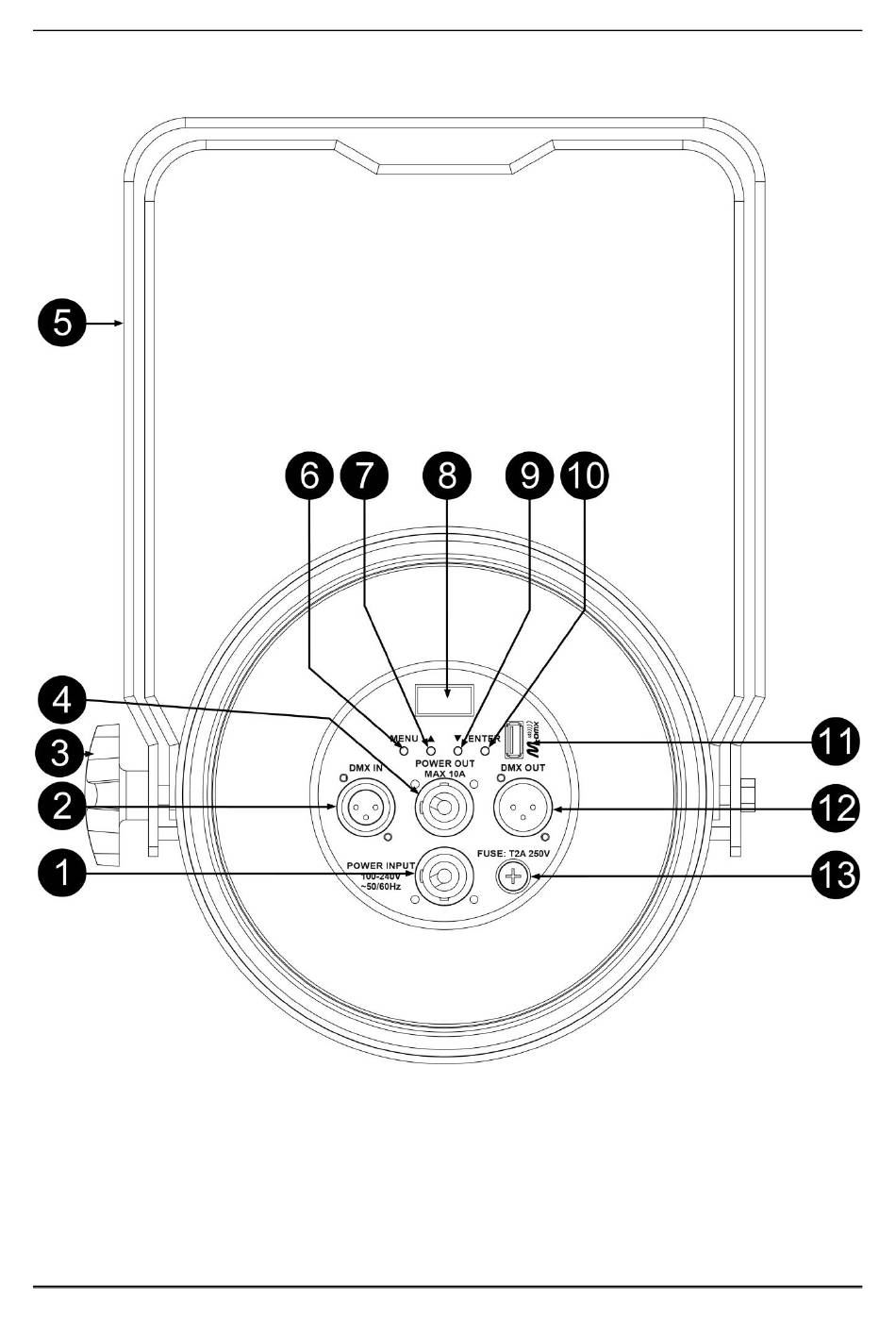

DESCRIPTION:
1. POWER input: Seetronic SAC3MPA socket, connect the supplied mains cable here.
2. DMX INPUT: 3pin male XLR-connector used to connect the projector with the DMX controller or with the
previous unit in the DMX chain.
3. KNOB : to fasten the double hanging bracket.
4. POWER output: Seetronic SAC3MPB socket.Use this to connect this output with the mains input of the
next LED PAR64FC ZOOM for easier linking up to 10A.
5. DOUBLE BRACKET: with a knob to fasten the unit in the desired position and a mounting hole to fix a
truss clamp.
6. MENU button: used to browse the different functions in the menu.
