JB Systems LED PAR64FC ZOOM Operation Manual page 15

ENGLISH
SPECIFICATIONS
This device carries the prescribed CE marking. It was tested for this purpose in a specialized CE lab and fully
complies with all currently valid European and national standards. The corresponding CE conformity
declarations can be found on the product page of this product on our website..
Mains Input:
Power consumption:
Fuse:
Power linking:
Sound Control:
DMX connections:
DMX modes:
LED Source:
Beam angle:

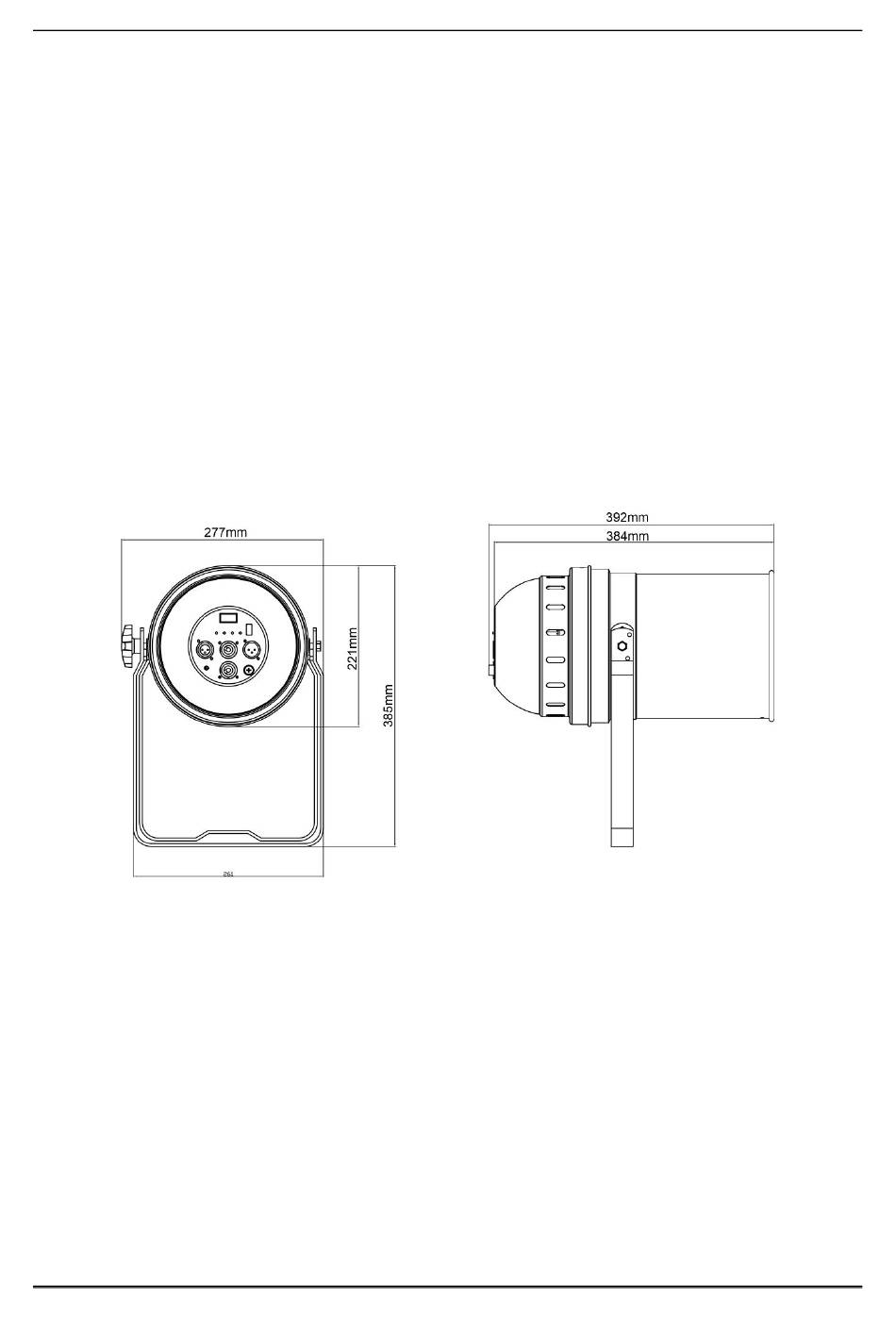

Size:
Weight:
You can download the latest version of this user manual on our website: www.jb-systems.eu
JB SYSTEMS
®
100-240Vac, 50/60Hz
154 Watt
250V /5A slow blow (20mm glass)
max. linking load = 10A
Internal microphone
XLR 3pin Male/Female
4CH RGB+DIM – 4CH RGBL - 5CH – 6CH – 6CH+ - 7CH
150W RGBL COB LED
9 to 30°
47 x 27 x 22cm.
3,4 kg
All the information is subject to change without prior notice
13/13
USER MANUAL
LED PAR64FC ZOOM
