7. ▲ button: to increase the values shown on the display or to go up in the menu.
8. OLED display : shows the various menus and the selected functions.
9. ▼ button: to lower the values shown on the display or to go down in the menu.
10. ENTER button: used to confirm your choice or to enter the setup mode of a function.
11. M-DMX INPUT: Please note that this USB-connector is NOT used for updates or to connect the unit to a
PC! Instead this USB-connector makes it very easy to add wireless DMX to the unit! Just add the
(optional) WTR-DMX DONGLE from BRITEQ
to connect other DMX-controlled equipment to the DMX-output so you can share the wireless DMX
function with all connected units! No extra settings to be made in the setup menu, just follow the
procedure in the user manual supplied with the WTR-DMX DONGLE from BRITEQ
WTR-DMX DONGLE is available from WWW.BRITEQ-LIGHTING.COM (order code: B04645).
12. DMX OUTPUT: 3pin female XLR-connector used to connect the projector with the next unit in the DMX
chain.
13. Fuse holder
OVERHEAD RIGGING
• Important: The installation must be carried out by qualified service personal only. Improper
installation can result in serious injuries and/or damage to property. Overhead rigging requires
extensive experience! Working load limits should be respected, certified installation materials
should be used, the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging
and servicing.
• The device should be installed out of reach of people and outside areas where persons may walk by or be
seated.
• Before rigging, make sure the installation can hold a minimum point load of 10times the device's weight.
• Always use a certified safety cable that can hold 12times the weight of the device when installing the unit.
This secondary safety attachment should be installed in a way that no part of the installation can drop
more than 20cm if the main attachment fails.
• The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
• Don't cover any ventilation openings as this may result in overheating.
• The operator has to make sure that the safety-relating and machine-technical installations are approved by
an expert before using them for the first time. The installations should be inspected every year by a skilled
person to be sure that safety is still optimal.
ELECTRICAL INSTALLATION
Important: The electrical installation should be carried out by qualified personal only,
according to the regulations for electrical and mechanical safety in your country.
Electrical installation for 1 standalone unit:
• Insert the mains cable. The unit starts working immediately in the last selected mode.
• Refer to chapter HOW TO SETUP to learn how to switch between the different working modes.

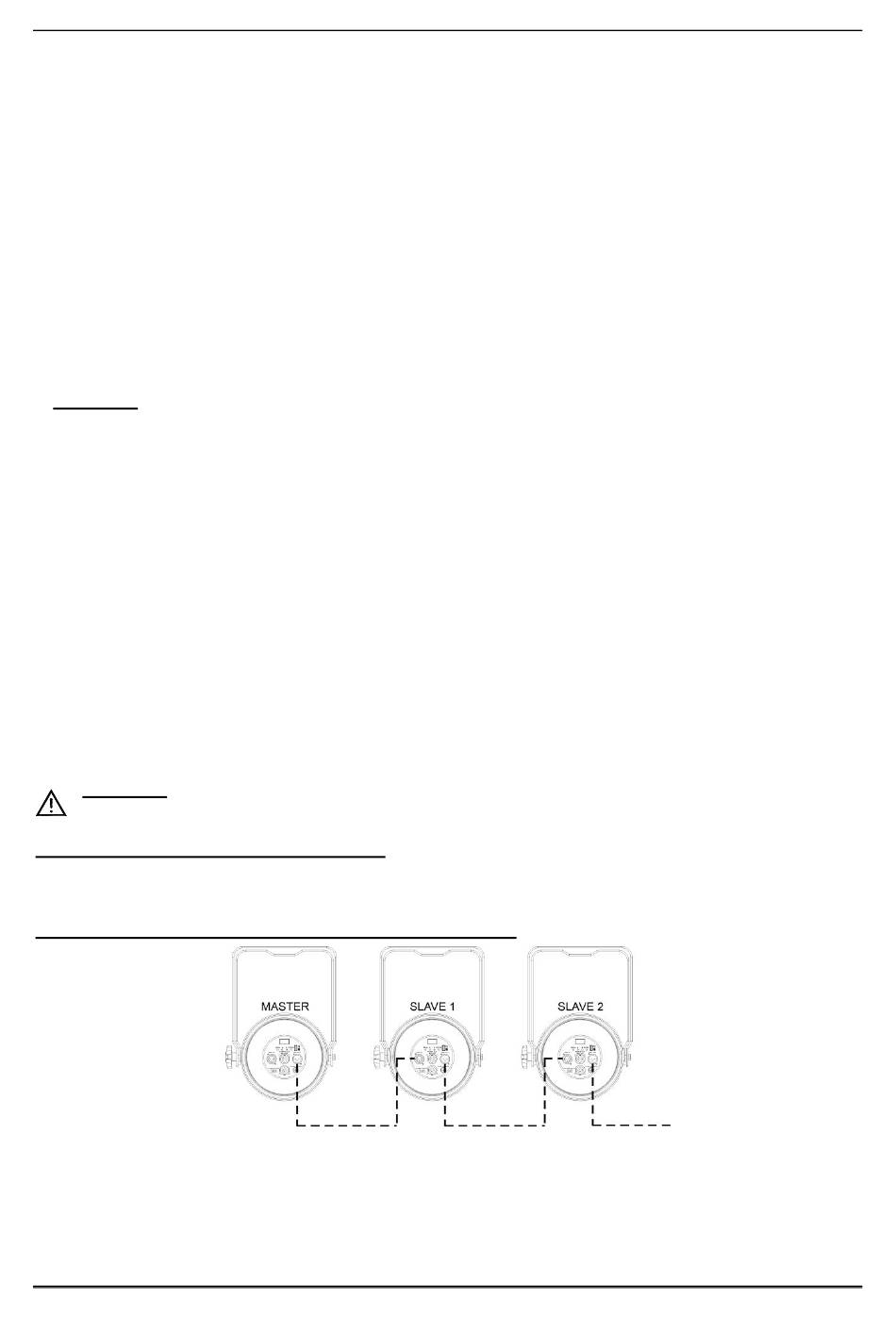

Electrical installation for two or more units in master/slave:
• Connect several units together using DMX- or good quality balanced microphone cables. The unit that
has no cable connected to its DMX-input is the "master", the others are the slave units.
• Make sure that all units are connected to the mains.
• Refer to chapter HOW TO SETUP for more information.
• Done!
