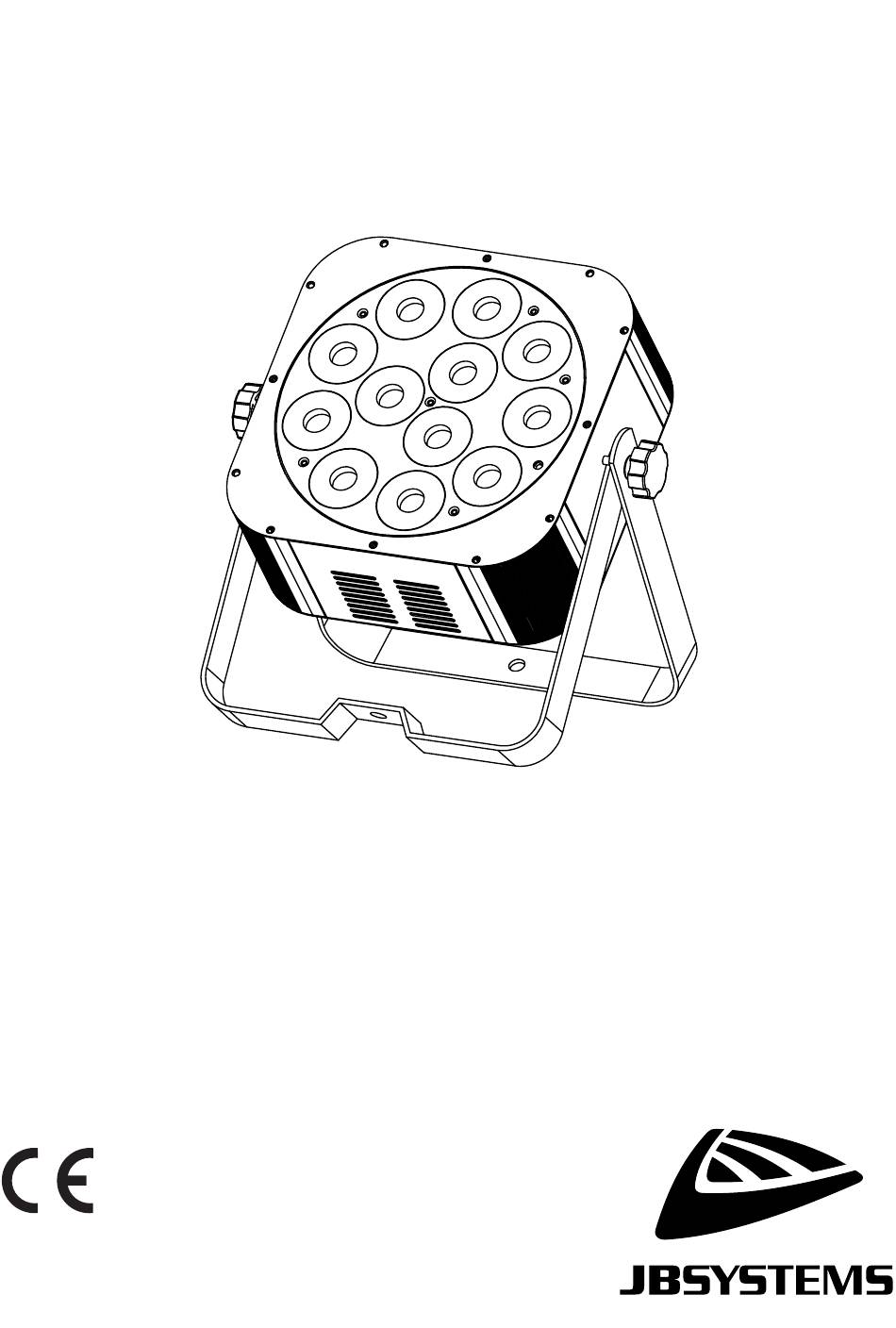

- Page 1 LED PLANO12-6in1 ENGLISH Operation Manual Other languages can be downloaded from: WWW.JB-SYSTEMS.EU Version: 1.0...
-
Page 3: Before Use
ENGLISH USER MANUAL OPERATION MANUAL ® Thank you for buying this JB SYSTEMS product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit. FEATURES •... - Page 4 • Due to safety reasons it is prohibited to make unauthorized modifications to the unit. Important: Never look directly into the light source! Don’t use the effect in the presence of persons suffering from epilepsy. JB SYSTEMS 2/12 LED PLANO12-6in1...
- Page 5 No extra settings to be made in the setup menu, just follow the procedure in the user manual supplied with the WTR-DMX DONGLE from BRITEQ ® . The separate WTR-DMX DONGLE is available from WWW.BRITEQ-LIGHTING.COM (order code: B04645). JB SYSTEMS 3/12 LED PLANO12-6in1 ®...
-
Page 6: Overhead Rigging
DMX-input is the “master”, the others are the slave units. • Make sure that all units are connected to the mains. • Refer to chapter HOW TO SETUP for more information. • Done! JB SYSTEMS 4/12 LED PLANO12-6in1 ®... -
Page 7: How To Set Up
Remark: on RDM-compatible controllers this option can also be remotely set. SLAVE MODE Used to set the projector as slave in a master/slave setup. • Press the MENU button or ▲/▼buttons until the desired function is showing on the display. JB SYSTEMS 5/12 LED PLANO12-6in1 ®... - Page 8 • Press the ENTER button: the display shows the value (000-255) for UV. (use ▲/▼buttons) • Press the ENTER button: the display shows the value (001-099) for F (STROBE). (use ▲/▼buttons) • Press the ENTER button to save your setting. JB SYSTEMS 6/12 LED PLANO12-6in1 ®...
- Page 9 • Once the correct option shows on the display, press the ENTER button to save it. LED TEMP Shows the actual LED temperature. • Press the MENU button or ▲/▼buttons until the desired function is showing on the display. JB SYSTEMS 7/12 LED PLANO12-6in1 ®...
- Page 10 Current setting in the menu Current setting in the menu Auto Lock Menu Current setting in the menu Current setting in the menu No DMX mode FREEZE Current setting in the menu Current setting in the menu JB SYSTEMS 8/12 LED PLANO12-6in1 ®...
- Page 11 ENGLISH USER MANUAL FIRMWARE Used to show the current version of the firmware. • Press the MENU button or ▲/▼buttons until the desired function is showing on the display. JB SYSTEMS 9/12 LED PLANO12-6in1 ®...
- Page 12 Strobe (slow to fast) 000-007 No Function 008-247 Color Fade (slow to fast) 248-255 Sound Chase LC02 DMX-Mode Select this DMX-mode while using the LEDCON-02 Mk2 easy controller. Channel: Value: Function: 000-255 Red (0-100%) JB SYSTEMS 10/12 LED PLANO12-6in1 ®...
-
Page 13: Maintenance
• Switch off the unit, unplug the mains cable and wait until the unit has been cooled down. During inspection the following points should be checked: • All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded. JB SYSTEMS 11/12 LED PLANO12-6in1 ®... -
Page 14: Specifications
±17° Size: 31 x 28,5 x 11,5cm. Weight: 3,6 kg All the information is subject to change without prior notice You can download the latest version of this user manual on our website: www.jb-systems.eu JB SYSTEMS 12/12 LED PLANO12-6in1 ®... -
