ENGLISH

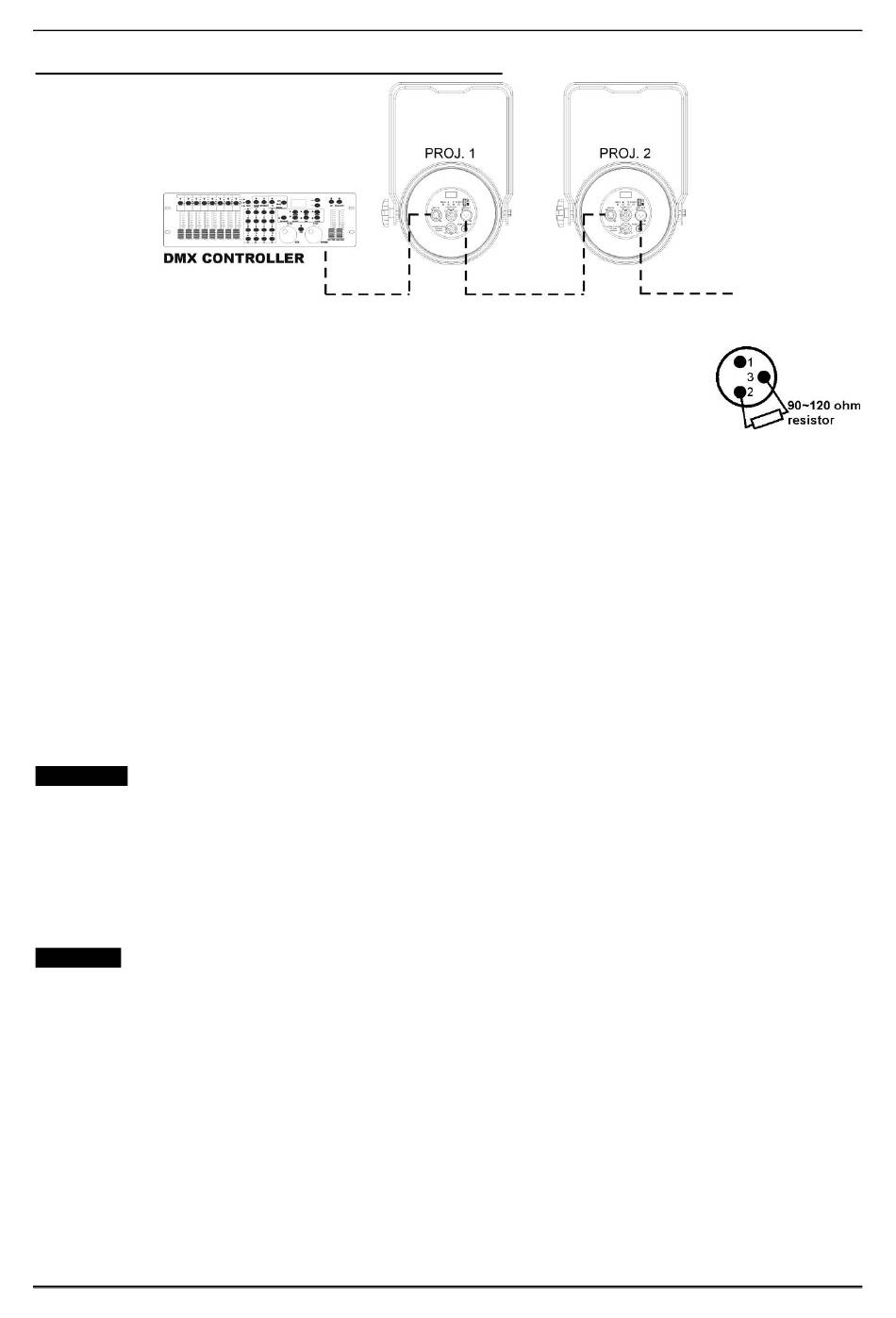

Electrical installation for two or more units in DMX-mode:
• The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to
"daisy chain" your DMX controller and all the connected units with a good quality
balanced cable.
• To prevent strange behavior of the light effects, due to interferences, you must use
a 90Ω to 120Ω terminator at the end of the chain. Never use Y-splitter cables, this
simply won't work!
• Make sure that all units are connected to the mains.
• Each light effect in the chain needs to have its proper start address so it knows which commands from
the controller it has to decode. In the section HOW TO SETUP you will learn how to set the DMX
addresses. If for example you use the 4 channel DMX mode, a possible address setup could be: unit1 =
001 ~ unit2 = 005 ~ unit3 = 009 ~ unit4 = 013 ~ etc.
HOW TO SETUP:
With the setup menu you can fully configure the projector. All settings are preserved when the unit is
disconnected from the mains.
• To select any of the functions, press the MENU button until the required function is shown on the display
or use the ▲/▼buttons to browse the menu.
• Select the function with the ENTER button.
• Use ▲/▼buttons to change the values.
• Once the required value is selected, press the ENTER button to confirm.
DMX ADDR
Used to set the desired DMX-address.
• Press the MENU button or ▲/▼buttons until the desired function is showing on the display.
• Press the ENTER button: the DMX value can now be changed
• Use ▲/▼buttons to select the desired DMX512 address. The last occupied DMX-address is also shown:
this makes it easier to set the address of the next unit in the chain.
• Once the correct address shows on the display, press the ENTER button to save it.
Note: on RDM-compatible controllers this option can also be remotely set.
CH. MODE
Used to set the desired channel mode.
• Press the MENU button or ▲/▼buttons until the desired function is showing on the display.
• Press the ENTER button: the values can be changed
• Use ▲/▼buttons to select the desired mode:
• 4RGB+DIM: R+G+B can be set separately, with combined strobe + master dimmer on CH4.
• 4CH RGBL: R+G+B+L can be set separately (no master dimmer or strobe).
• 5RGBL+DIM: R+G+B+L can be set separately, with combined strobe + master dimmer on CH5.
• 6CH: R+G+B+L can be set separately, with separate master dim & combined strobe/sound channels.
• 6CH+: R+G+B+L can be set separately, with separate master dim & strobe channels.
• 7CH: R+G+B+L can be set separately, with separate master dim, effect & strobe channels
• Once the correct option shows on the display, press the ENTER button to save it.
Remark: on RDM-compatible controllers this option can also be remotely set.
JB SYSTEMS
®
5/13
USER MANUAL
LED PAR64FC ZOOM
