OPERATING INSTRUCTIONS
A. Standalone 1unit:
• Just connect the projector to the mains.
• Select one of the automatic, sound or static color modes
• Refer to chapter HOW TO SETUP to learn how to make the settings.
B. Two or more units in master/slave setup:
• Connect the units together. Refer to the chapter "electrical installation" to learn how to do this.
• Select one of the automatic, sound or static color modes on the master (the first projector in the DMX
chain)
• Set all the other projectors in SLAVE mode
• The projectors will now follow the program of the master projector so they all work synchronously.
NOTE: you can use the wireless remote controller to select the functions on the master unit. The slaves
will follow.
C. Controlled by the wireless remote controller:
To be able to use the wireless remote control the projector has to be turned on and no DMX
should be connected.

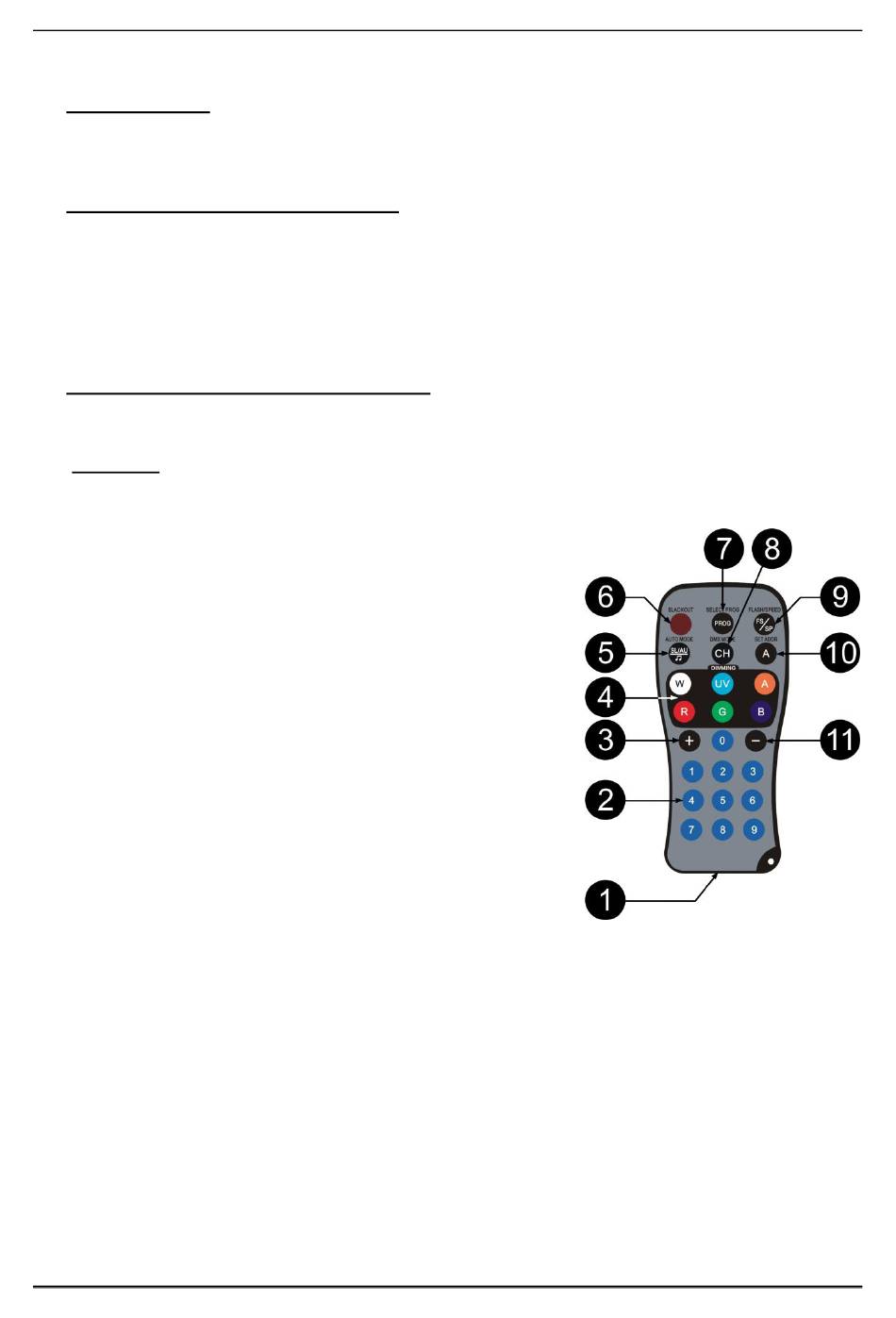

Functions:
1. Battery compartment: receives a CR2025 3V-battery (supplied).
Note: Maximum distance between the wireless remote and the fixture = +/- 10m
2. NUMBER buttons: no function.
3. + Button: used to increase the value of a selected function.
4. COLOR-buttons: used to select one of the pre-programmed
static colors of the projector.
- W (White)
UV (Ultra Violet – blacklight)
-
- A (Amber)
- R (Red)
- G (Green)
- B (Blue)
-button: used to put the projector in "AUTO-RUN",
5. SL/AU-
sound or "SLAVE" mode. Speed and sensitivity can be adjusted
with the "+" and "-" buttons.
6. BLACKOUT-button: used to switch the output ON/OFF
7. PROG-button: used to set a static color. With each press you go
to the next color. The value of the colors can be adjusted with the
"+" and "-" buttons.
8. CH-button: used to set the channel mode of the projctor.
9. FS/SP-button: used to switch the strobe function ON/OFF. The
speed can be adjusted with the "+" and "-" buttons. This function
only works when the projector is in a static color.
10. A-button: used to set the DMX-address of the projector.
11. – Button: used to decrease the value of a selected function.
