Thor Broadcast H-1SDI-ATSC-IPLL User Manual

1-4 sdi to qam modulators and iptv streaming encoders
Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual
1-4 SDI to QAM Modulators and
IPTV Streaming Encoders
H-1/2/4SDI-QAM-IPLL
Tel: (800) 521-8467
Email:
sales@thorfiber.com
http://www.thorbroadcast.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-1SDI-ATSC-IPLL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thor Broadcast H-1SDI-ATSC-IPLL

Summary of Contents for Thor Broadcast H-1SDI-ATSC-IPLL

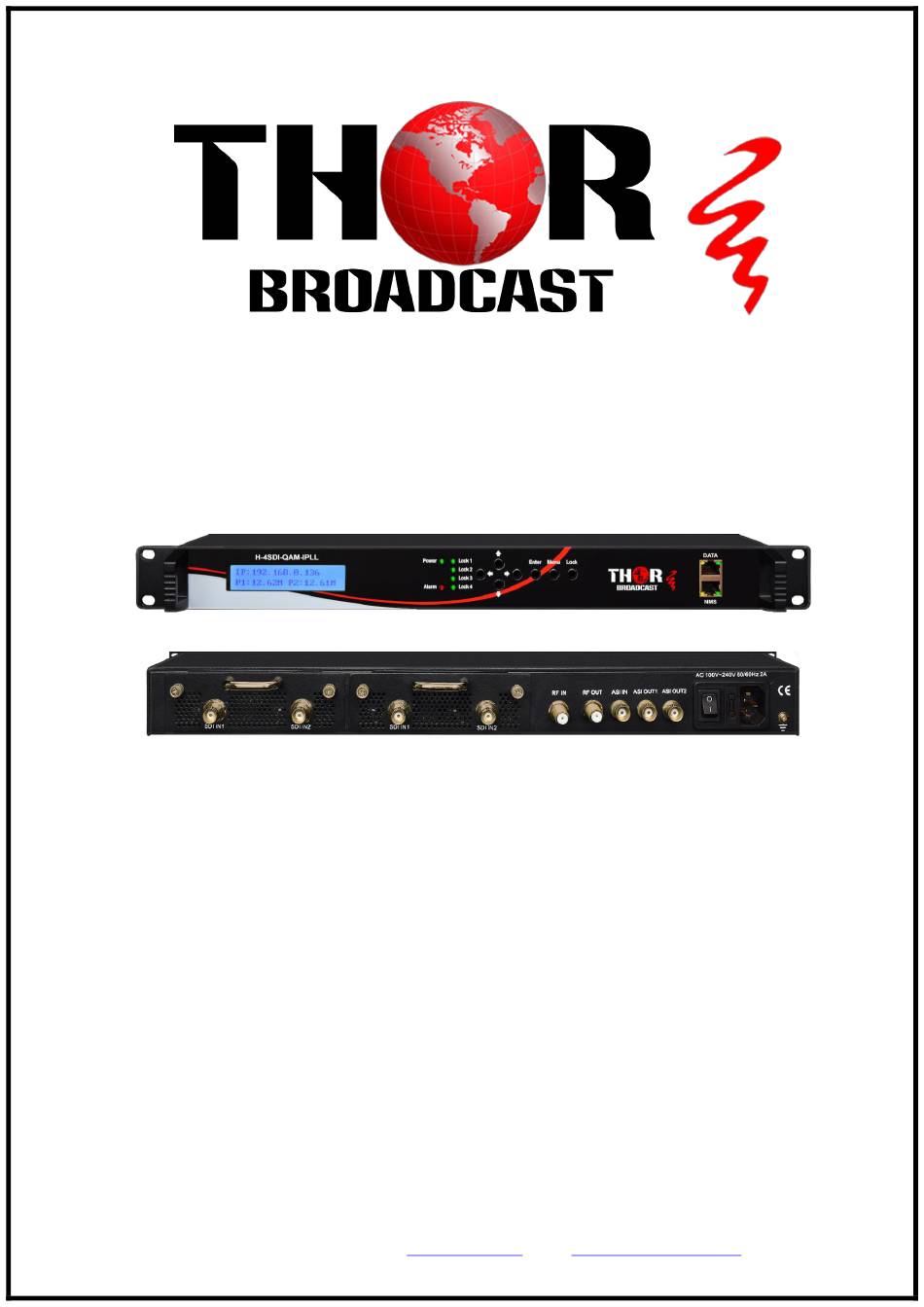

  • Page 1 User Manual 1-4 SDI to QAM Modulators and IPTV Streaming Encoders H-1/2/4SDI-QAM-IPLL Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 2 H-1/2/4SDI-QAM-IPLL DIRECTORY Chapter 1 Product Introduction......................1 1.6 Appearance and Illustration ......................5 Chapter 2 Installation Guide ......................6 2.1 Acquisition Check .......................... 6 2.2 Installation Preparation ........................ 6 2.3 Wire’s Connection .......................... 8 Chapter 3 Keyboard Operation ......................9 3.1 LCD Menu Tree ..........................
  • Page 3 H-1/2/4SDI-QAM-IPLL Chapter 1 Product Introduction 1.1 Outline H-1/2/4SDI-QAM-IPLL series products are Thors’s new breakthrough all-in-one devices which integrate encoding (MPEG-2 HD/SD, MPEG-4/AVC H.264 HD/SD) and modulating to convert V/A signals into Digital RF output. It is equipped with 4 HDMI (4 SDI optional) channels input and 1 ASI input(optional) and output via 2 ASI ports(optional) and 1 DATA (4*SPTS or 2 or 4 MPTS--as per carrier numbers) output over UDP, RTP/RTSP.
  • Page 4 H-1/2/4SDI-QAM-IPLL 1.3 Technical Specifications HDMI*2 Input MPEG2; MPEG4 AVC/H.264 Encoding Bitrate 1-19.5Mbps 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only) Resolution 1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P Video 720*480_60i, 720*576_50i 1920*1080_60i, 1920*1080_50i, Support object 1440*1080_60i, 1440*1080_50i, resolution 1280*720_60p, 1280*720_50P (for downscale conversion) HDMI Encoder Board 720*480_60i, 720*576_50i Low Delay Normal, Mode 1, Mode 2, Manual...
  • Page 5 H-1/2/4SDI-QAM-IPLL Standard DVB-T Bandwidth 6M, 7M, 8M Constellation QPSK, 16QAM, 64QAM Code rate 1/2, 2/3, 3/4, 5/6, 7/8. Guard Interval 1/32, 1/16, 1/8, 1/4 DVB-T Transmission Mode 2K, 4K, 8K ≥40dB RF frequency 50~960MHz, 1KHz step RF Out 4*DVB-T carriers(40MHz bandwidth) RF output level -20~ -3dbm, 0.1db step Standard...
  • Page 6 H-1/2/4SDI-QAM-IPLL 1.4 Principle Chart ASI Output(optional) 4*SPTS/ 2 or 4 MPTS Output HDMI/SDI MPEG-2 HD /MPEG-4 HD Encoding Carrier 1 HDMI/SDI MPEG-2 HD /MPEG-4 HD Modulating Encoding HDMI/SDI MPEG-2 HD /MPEG-4 HD RF out Encoding HDMI/SDI MPEG-2 HD /MPEG-4 HD Carrier X Encoding Modulating...
  • Page 7 H-1/2/4SDI-QAM-IPLL 1.6 Appearance and Illustration Front Panel Illustration: 7 8 9 1. LCD Screen 2. NMS Port 3. DATA Port 4. Power and Alarm Indicators 5. Lock 1 and Lock 2: SDI input locking status; Lock 3: ASI in locking status. Lock 4: useless Up and Down, Left and Right Buttons 7.
  • Page 8 H-1/2/4SDI-QAM-IPLL Chapter 2 Installation Guide 2.1 Acquisition Check When users open the package of the device, it is necessary to check items according to packing list. Normally it should include the following items:  Encoder Modulator  Power Cord  Ground lead If any item is missing or mismatching with the list above, please contact local dealer.
  • Page 9 H-1/2/4SDI-QAM-IPLL 2.2.2 Environment Requirement Item Requirement When user installs machine frame array in one machine hall, the Machine Hall Space distance between 2 rows of machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m. Electric Isolation, Dust Free Volume resistivity...
  • Page 10 2.2.4 Frame Grounding All the machine frames should be connected with protective copper strip. The grounding wire should be as short as possible and avoid circling. The area of the conduction between grounding wire and grounding strip should be no less than 25mm 2.2.5 Device Grounding Connecting the device’s grounding rod to frame’s grounding pole with copper wire.
  • Page 11 Chapter 3 Keyboard Operation This Encoder Modulator’s front panel is user-operating interface. Before operating, users can decide whether directly use the default setting or customize the input and output parameters setting. The detailed operations go as follows: Keyboard Function Description: ENTER: Activating the parameters which need modifications, or confirming the change after modification.
  • Page 12 H-1/2/4SDI-QAM-IPLL Status Video Format Aspect Ratio Field/Picture Enc Video Cache Video CC Switch Video Bitrate Low Delay DTS Delay GOP B Frame GOP P Frame H.264 Profile 1. SDI-Ch1 H.264 Level 1. SDI-Ch2 Out Resolution 2. SDI-Ch1 Share PCR PID Input Settings 2.
  • Page 13 H-1/2/4SDI-QAM-IPLL Data enable MPTS 1 Null PKT Filter MPTS 2 Output IP MPTS 3 Output Port MPTS 4 Output Protocol IP Stream Output Settings Data enable SPTS 1 Null PKT Filter SPTS 2 Output IP SPTS 3 Output Port Output Protocol SPTS 4 Bitrate ASI Settings...
  • Page 14 H-1/2/4SDI-QAM-IPLL Chapter 4 WEB NMS operation Users can not only use front buttons for setting configuration, but also control and set the configuration in computer by connecting the device to web NMS Port. User should ensure that the computer’s IP address is different from this device IP address; otherwise, it would cause IP conflict. 4.1 login The default IP of this device is 192.168.0.136.
  • Page 15 H-1/2/4SDI-QAM-IPLL Figure-2 Encoder 1 & 2 From the menu on left side of the webpage, clicking “Encoder 1 or Encoder 2”, it displays the information of the programs from the encoding boards as Figure-3. SDI 1& SDI 2 Figure-3 And check the box of Advanced Mode to get a more detailed parameter-setting menu as Figure- Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 16 H-1/2/4SDI-QAM-IPLL Not ticking “Auto”, users can set an output resolution not higher than the input resolution. General Settings for the input programs: Users can edit any item listed as needed. Ticking Share PCR PID means Video PID and PCR PID are the same one. Encoding status monitoring: Signal locking, input resolution, encoding bitrate etc...
  • Page 17 H-1/2/4SDI-QAM-IPLL 3. Mode 2: to activate the low delay function in the default Mode 2 configuration. 4. Manual: to configure DTS Delay, GOP B frame and GOP P frame to get a low delay result accordingly. The delay is mainly affected by the different combination of Video Format, Video Bit-rate, Low delay Mode and the Resolution of signal source etc.
  • Page 18 H-1/2/4SDI-QAM-IPLL Select the wanted input program(s) firstly and click this button to transfer the selected program(s) to output. Cancel the multiplexed programs from the output area after your program selection. To select all the input programs To select all the output programs To parse programs time limitation of parsing input programs Click the program name to get a pop-up window where users...
  • Page 19 H-1/2/4SDI-QAM-IPLL Figure-8 Set Web Insert for NIT Insert and Click “+” from this page, it will display the screen as Figure-9 where it requires to add NIT descriptor. Please follow your configuration in Modulator page to edit the NIT descriptor. Figure-9 Modulator This unit is equipped with 4 DVB-C frequencies output.
  • Page 20 H-1/2/4SDI-QAM-IPLL Figure-10 Output Settings Click “Output Settings” from the left menu, it will display the page as Figure-11 where to configure the 4 MPTS output and 4 SPTS Output by clicking the Figure-11 Network When user clicks “Network”, it will display the page as Figure-12. It displays the network information of the device.
  • Page 21 H-1/2/4SDI-QAM-IPLL Figure-12 Password From the menu on left side of the webpage, clicking “Password”, it will display the screen as Figure-13 where to set the login account and password for the web NMS. Figure-13 Configuration From the menu on left side of the webpage, clicking “Configuration”, it will display the page as Figure-14 where to save, restore, make factory set, backup and load your configurations.
  • Page 22 H-1/2/4SDI-QAM-IPLL Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 23 H-1/2/4SDI-QAM-IPLL Figure-14 Firmware From the menu on left side of the webpage, clicking “Firmware”, it will display the screen as Figure-15 where to update firmware for the device. Figure-15 Date | Time Users can set timezone and configure NTP server to update Date and Time in the device. Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 24 H-1/2/4SDI-QAM-IPLL Figure-16 Log: The Kernel and System log here are for the R&D debugging reference. Figure-17 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 25 H-1/2/4SDI-QAM-IPLL Chapter 5 Troubleshooting Our ISO9001 quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All of our products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by us.
  • Page 26 H-1/2/4SDI-QAM-IPLL Chapter 6 Packing list  Encoder Modulator 1 pc  Power cord 1 pc  Ground Lead 1 pc Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
