Thor Broadcast H-THUNDER-8 User Manual

8 channel hdmi/cvbs digital modulator dvb-c annex a/b qam - atsc - dvb-t -isdb-t
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

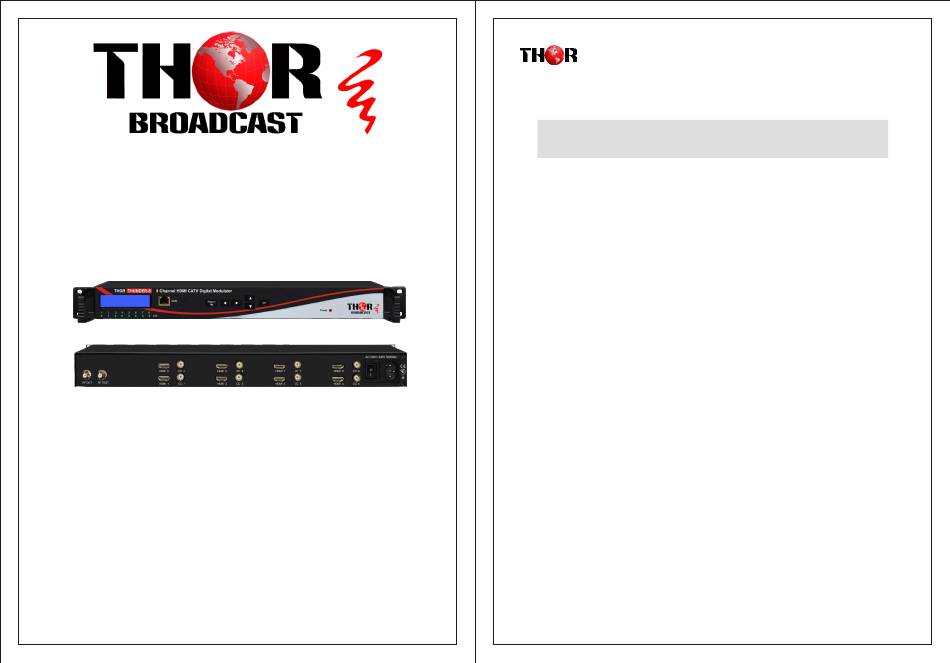

H-Thunder-8
A Note from Thor Broadcast about this Manual
Intended Audience
User Manual
This user manual has been written to help people who have to use, integrate and to install the
product. Some chapters require some prerequisite knowledge in electronics and especially in
broadcast technologies and standards.
Disclaimer
No part of this document may be reproduced in any form without the written permission of
Thor Broadcast.
The contents of this document are subject to revision without notice due to continued progress
in methodology, design and manufacturing. Thor shall have no liability for any error or damage
of any kind resulting from the use of this document.
Copy Warning
This document includes some confidential information. Its usage is limited to the owners of the
product that it is relevant to. It cannot be copied, modified, or translated in another language
without prior written authorization from Thor Broadcast.
Thor H-THUNDER-8 8 Channel HDMI/CVBS Digital Modulator
DVB-C Annex A/B QAM - ATSC - DVB-T -ISDB-T
Thor Fiber 2022
Tel: (800) 521-8467
Email: sales@thorfiber.com
http://www.thorbroadcast.com
Thor Fiber 2022
Tel: (800) 521-8467
Email: sales@thorfiber.com
http://www.thorbroadcast.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-THUNDER-8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thor Broadcast H-THUNDER-8

Summary of Contents for Thor Broadcast H-THUNDER-8

  • Page 1 H-Thunder-8 A Note from Thor Broadcast about this Manual Intended Audience User Manual This user manual has been written to help people who have to use, integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards.

  • Page 2: Table Of Contents

    H-Thunder-8 H-Thunder-8 Table of Contents Chapter 1 - Introduction CHAPTER 1 - INTRODUCTION 1.1 Product Overview TH8 encoder modulator is a all-in-one device integrating MPEG2 encoding and modulating to convert 1.1 PRODUCT OVERVIEW audio/video signals into DVB-C/T/ATSC/J.83B/ISDB-T RF out. It supports 8 HDMI inputs, and its pay 1.2 KEY FEATURES...

  • Page 3: Specifications

    H-Thunder-8 H-Thunder-8 1.3 Specifications 1.4 Appearance and Description HDMI Encoding Section Code rate 1/2, 2/3, 3/4, 5/6, 7/8 Input HDMI*8,CVBS*8 1/32, 1/16, 1/8, 1/4 Interface Guard Interval Front Panel Illustration Encoding MPEG2 2K, 8K Transmission Mode Input Output ≥35dB PAL,NTSC...

  • Page 4: Lcd Menu Structure

    H-Thunder-8 H-Thunder-8 Input Source 2 Encode 2.1 Channel 1 Bit Rate Chapter 2 - Operation Latency 2.2 Channel 2 Audio Format 2.3 Channel 3 PMT PID Keyboard Function Description: 2.4 Channel 4 Video PID OK: Activate the parameters which need modifications, or confirm the change after modification.

  • Page 5: General Settings

    H-Thunder-8 H-Thunder-8 4.1 IP Address 4 Network DVB-T/ DVB-C J.83A: 4.2 Subnet Mask Network ID 4.3 Gateway TS ID 5 System Setting 5.1 Save & Reboot ON ID 5.2 Restore Program Number Program Provider 5.3 Factory set Program Name 6 Soft Version 6.1 Web Version...
  • Page 6 H-Thunder-8 H-Thunder-8 J.83B: Channel 1 Standard Bit Rate Audio format RF Frequency Latency Constellation PMT PID Video PID Audio PID ATSC: PCR PID Standard RF Frequency 2.2.3 Modulate The TH8A has up to 8 RF carriers, press the up and down keys to switch the channels, then press OK key enter ISDB-T: the corresponding channel to set the relevant RF output parameters.

  • Page 7: Chapter 3 - Web Nms Operation

    H-Thunder-8 H-Thunder-8 3. 1 Login Save & Reboot The default IP of this device is 192.168.0.188. We can modify the IP through the front panel. Connect Sure? the PC and the device with net cable, and use ping command to confirm they are on the same network segment.
  • Page 8 H-Thunder-8 H-Thunder-8 AC3, AAC, Check the version information MPEG1 Layer2 Audio encoding format DVB-T Modulation Click any item here to enter the The modulate channels status summary corresponding interface to check information or set the parameters. Figure-2 Parameters → Encode:...
  • Page 9 H-Thunder-8 H-Thunder-8 System → Modulate: Click [ Modulate ], it displays the interface where users can configure the modulating parameters. ATSC Modulation J.83B Modulation The legend below shows the different standard in [ Channel 2/3/4/5 ] Channel 2: DVB-T modulation ISDB-T Modulation Channel 3: DVB-C(J.83A) modulation...
  • Page 10 H-Thunder-8 H-Thunder-8 Channel 4: ATSC modulation System→Password: Click [ Password ], it displays the screen where to set login password for the web NMS Channel 5: ISDB-T modulation System→Firmware: Click [ Firmware ], it displays the screen where to update the firmware on this modulator.
  • Page 11 H-Thunder-8 H-Thunder-8 Click [ Update MCU Firmware ] to put file up then auto start update. Click [ Update Web application ] to put file up then auto start update. Progress shown below. Progress shown below. Remark If the web application does not open, do the following: Click [ Update Modulator Firmware ] to put file up then auto start update.
  • Page 12 H-Thunder-8 H-Thunder-8 System → Configuration: Click [ Factory Set ], it displays the screen Click OK to Factory default Setting. Click [ Load Configuration ], it will jump a windows to upload the file that saved settings before. Chapter 4 - Packing List Click [ Save Configuration ], it saves parameter settings as a file to convenient uploading.
