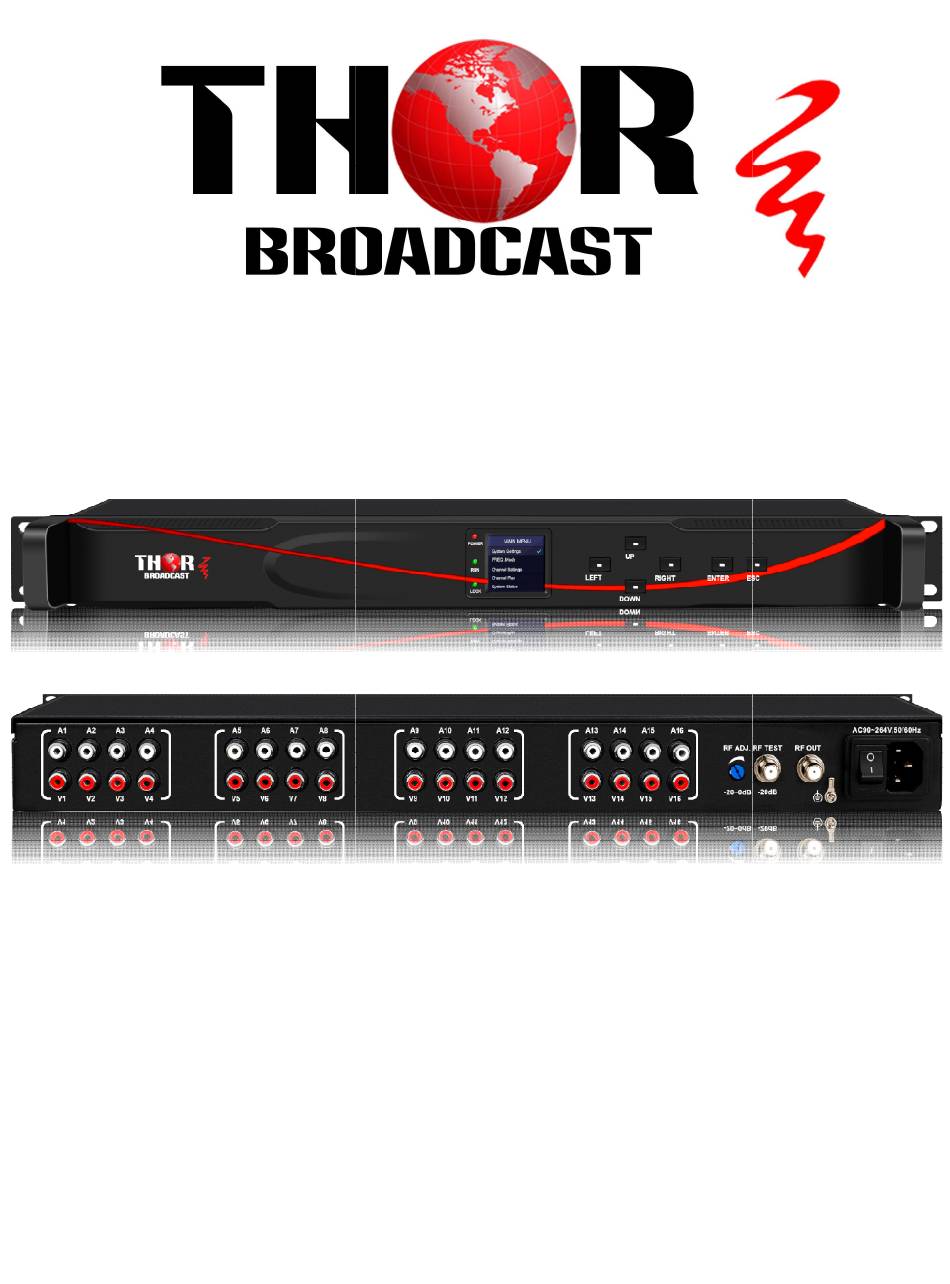

- Page 1 User Manual User Manual H-16RCA 16RCA-RF-MOD 16 CHANNELS AGILE MODULATOR 16 CHANNELS AGILE MODULATOR 16 CHANNELS AGILE MODULATOR...
-
Page 2: Table Of Contents
A Note from Thor Broadcast about this Manual Intended Audience This user manual has been written to help people who have to use, integrate and to install the product. Some chapters require some prior knowledge in, especially in broadcast technologies and standards. -
Page 3: Introduction
The H-16RCA-RF-AMOD is a professional quality agile modulator with 16 output channels in 1RU size. It is SAW filtered and microprocessor controlled with an output capability of 860MHz. The unit offers high performance, low cost and compact design for the system operators. 2. -
Page 4: Saft Introductions
TO REDUCE THE RISK OF ELECTRICAL SHOCK, TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER FROM THIS UNIT. DO NOT REMOVE COVER FROM THIS UNIT. NO USER NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. -
Page 5: Installation
Seller 6. INSTALLATION Please follow the instructions below to install the Please follow the instructions below to install the H-16RCA-RF-MOD 1. Connect the power plug to the power jack 1. Connect the power plug to the power jack 2. -
Page 6: Front Panel View
7. FRONT PANEL CONTROLS 1. NMS: Net management system port [IP:192.168.1. Net management system port [IP:192.168.1.10; USER NAME: user; PASSWORD: user] 2. INDICATORS: Indicate power on, running and signal locked Indicate power on, running and signal locked 3. LCD DISPLAY: To display all the setting information. The LCD will be locked without any action taken within 1 To display all the setting information. -
Page 7: System Interface
11 The Front Panel System There are three menus on the first page, which the first page, which the operator may choose to view and/or configure system sett may choose to view and/or configure system settings. System Settings 1. Language: Press ENTER to edit, and press LEFT and press LEFT or RIGHT to switch the language. - Page 8 12 WEB MANAGEMENT 12.1 LOGIN The H-16RCA-RF-AMOD has a friendly user interface for programming and monitoring interface for programming and monitoring the device. The user . The user can get access to the built-in web UI by logging into Google Chrome Google Chrome, Firefox or Microsoft Edge accounts.
-
Page 9: Troubleshooting
12.4 OUTPUT PARAMETERS On this page, you can set up the output frequencies. There are two input modes for setting up the output frequency: Setting from list and Manual Input. We suggestusing the Setting from listoption to save time. Setting from list: Select the channels from the drop box In the Setting from list, you can select the frequency in the drop box list. - Page 10 The Manual Input option allows you to input the frequency as needed. Quick Channel Edit: Quickly generate 16 channels by plan In the Setting from list mode In the Manual input mode Batch Edit: Quickly edit the attenuation, audio and video for all the channels. Other settings in the OUTPUT SETTING Enable: To enable or disable the RF output.
- Page 11 Audio: Adjust the sound level by the slide bar Adjust the sound level by the slide bar Video: Adjust the brightness for the picture 12.5 NETWORK PARAMETERS 1. DHCP: If you need to utilize the modulator on a router with DHCP a router with DHCP make sure you click the DHCP box.
- Page 12 Upgrade system from file: Upgrade the modulator with the latest software. Upgrade the modulator with the latest software. Restore to factory settings: The restore function will recover the input and output settings and the IP address to the The restore function will recover the input and output settings and the IP address to the The restore function will recover the input and output settings and the IP address to the factory mode.
- Page 13 13.2 Go to Windows Settings 13.3 Go to “ Network & Internet” 13.4 Go to “Ethernet” on the left side of the menu 13.5 Go to “ Change adapter options” 13.6 Double click on the Ethernet Source or Right Click and select “Properties” 13.7 Open Properties...
- Page 14 13.8 Go to “Internet Protocol Version 4 (TCP/IPv4) 13.9 Go to “Properties” 13.10 Go to “Use the following IP address”...
- Page 15 13.11 Set IP address...
- Page 16 Set IP address: 192.168.1.10 Set Subnet mask: 255.255.255.0 Set Default gateway: 192.168.1.1 15.12 Save all the settings. 14. Common Troubleshooting...
- Page 17 Symptom Recommended Action LED is not lit Check the power cord connection Can’t login to the NMS Check Chapter 13 The WEB UI is not in order and can’t save the settings Clear your browsing data Check the output setting No RF output Check the output modulation Check the cable connection...
