H-HYBRID-RF-8

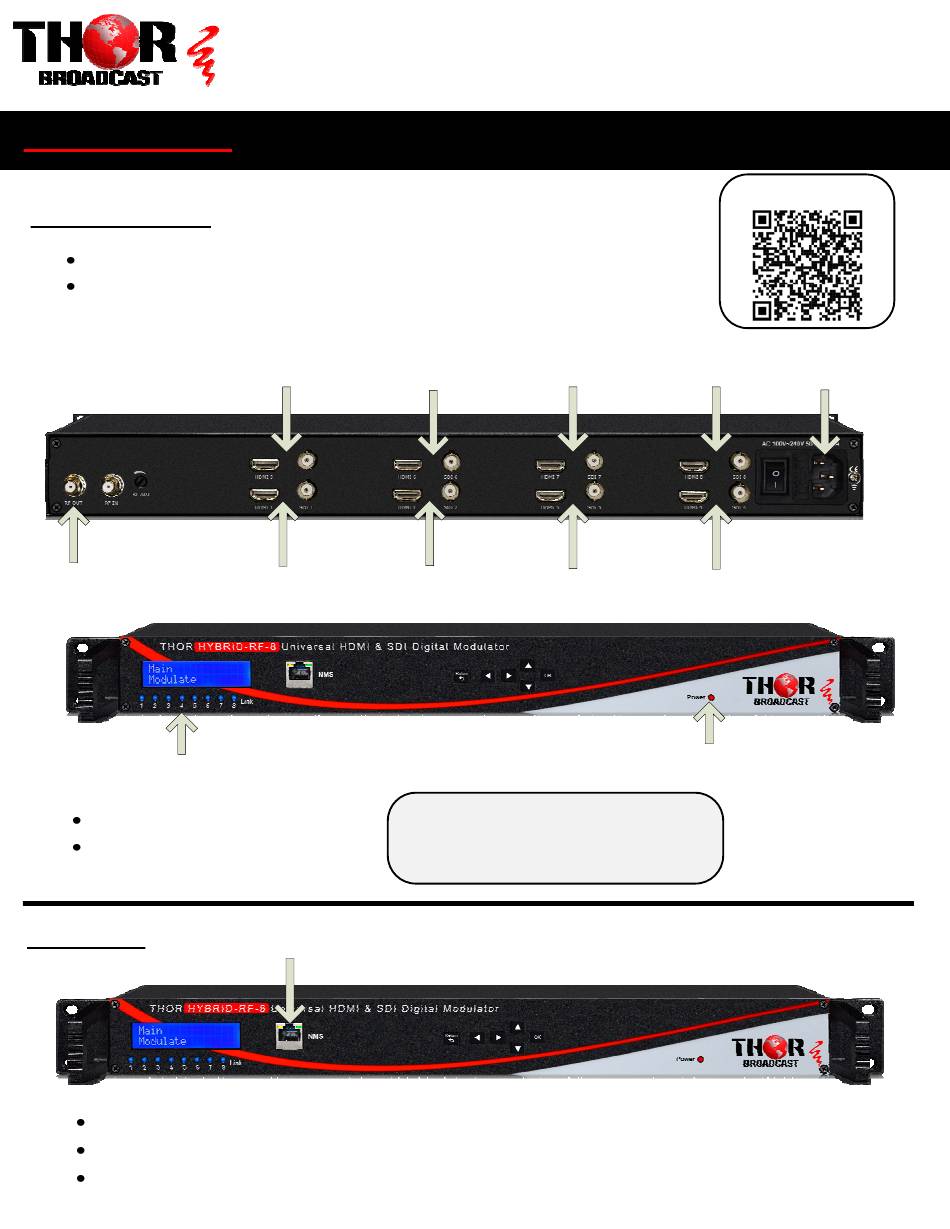

Step 1: Connections
Connect the included power supply
Power LED will indicate when power is connected properly
RF Out
Link Lights will indicate when
inputs are properly connected.
BLUE for HDMI
GREEN for SDI
Step 2: Login
Connect the NMS port to your PC using an ethernet cable (not included)
Open web browser and go to http://192.168.0.188
Login/Password: admin/admin
https://thorbroadcast.com
HDMI/SDI 1
HDMI/SDI 2
HDMI/SDI 5
HDMI/SDI 6
individually selectable for each of
the 8 total channels you can output.
NMS Port
800-521-8467
HDMI/SDI 3
HDMI/SDI 7
NOTE: HDMI or SDI Inputs are
sales@thorfiber.com
Quick Setup Guide
Scan for more Info:
HDMI/SDI 4
Connect Power
HDMI/SDI 8
Power LED
