Summary of Contents for Thor Broadcast H-IP-32RF

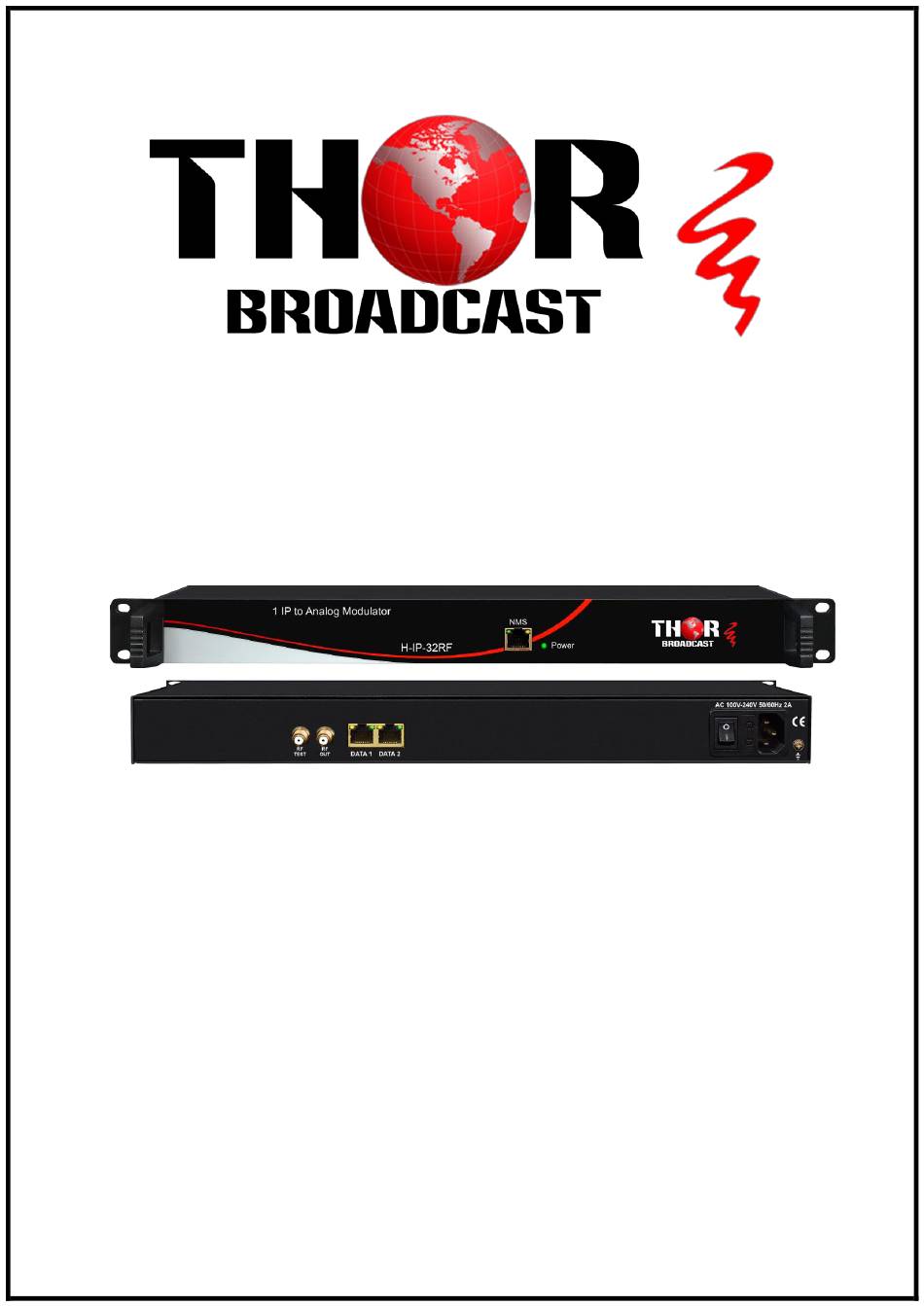

  • Page 1 User Manual 1 IP to Analog Modulator H-IP-32RF...
  • Page 2 H-IP-32RF About This Manual Intended Audience This user manual has been written to help people who have to use, to integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards.
  • Page 3: Table Of Contents

    H-IP-32RF Directory Chapter 1 Product Overview ............1 1.1 Key Features................1 1.2 Specifications ................1 1.3 Appearance and Illustration ..........2 Front panel Illustration ............... 2 Rear Panel Illustration: ............... 2 Chapter 2 Installation Guide ............4 2.1 Acquisition Check ..............4 2.2 Installation Preparation ............
  • Page 4: Chapter 1 Product Overview

    Chapter 1 Product Overview 1.1 Key Features  Support OSD (Logo and Caption) insertion, CC/Subtitle/Teletext  Support program info modify, multiple audio sele  2 GE ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each GE input  Support HEVC/H.265, H.264/AVC, MPEG-2 TS Decapsulation ...
  • Page 5: Appearance And Illustration

    Number of channels up to 32 Connectors 75Ω, F-jack 47 – 862MHz, digital modulation process Frequency range Output Bandwidth 400MHz Output level maximum 112dBμV Modulation ≥ 14dB Return loss ≥ 60dB Parameters Spurious frequency dist. Stereo cross talk > 55dB Residual carrier accuracy PAL B/G/D/K/M/N, NTSC M/J/4.43, TV standard...
  • Page 6 Rear Panel Illustration: NMS: network management port Power Indicator Grounding AC Power Socket Power switch Data Input RF output port RF test port sales@thorfiber.com Tel: (800) 521-8467 Email: https://thorbroadcast.com...
  • Page 7: Chapter 2 Installation Guide

    The main steps of the installation include:  Checking the possible device missing or damage during the transportation  Preparing relevant environment for installation  Installing H-IP-32RF, 32 in 1 IP to Analog Modulator  Connecting signal cables  Connecting communication port (if it is necessary) 2.2.1 Device’s Installation Flow Chart Illustrated as follows:...
  • Page 8 When user installs machine frame array in one machine hall, the distance Machine Hall between 2 rows of machine frames should be 1.2~1.5m and the distance Space against wall should be no less than 0.8m. Electric Isolation, Dust Free 10  Volume resistivity of ground anti-static material: 1X10 ~1X10 Machine...
  • Page 9 When the device adopts united way, the grounding resistance should be smaller than 1Ω.  Caution: Before connecting power cord to H-IP-32RF , user should set the power switch to “OFF”.
  • Page 10: Login

    Chapter 3 Web NMS Management This device does not support the LCD operation, and the modification can only be operated under Web NMS. 3.1 Login The factory default IP address is 192.168.0.136 and users can connect the device and web NMS through this IP address.
  • Page 11 Figure-2 3.2.2 Parameters Parameters → IP Input: Click “IP Input”, it displays the interface as Figure-3. Users can select the output TS channels. Click “+” to add IP input, and then select one channel to parse. It will display the interface where users can choose the programs to output and program info re-set.
  • Page 12 To refresh the input program information To refresh the output program information Select one input program first and click this button to transfer the selected program to the right box to output. Similarly, user can cancel the multiplexed programs from the right box. To select all the input programs To select all the output programs To parse programs...
  • Page 13 Figure-4 Parameters → Decoder: This function is to monitor status of decoding. It displays the interface as Figure-5. Figure-5 Parameters → OSD: Clicking “OSD”, it displays the interface where to configuration the OSD parameters (Figure-6) sales@thorfiber.com Tel: (800) 521-8467 Email: https://thorbroadcast.com...
  • Page 14 Select to configure logo, caption Click here to confirm the LOGO you selected Browse and select the Logo which has been created Figure-6 Move your caption on the screen Select the text color and background color Enter your text here Figure-7 sales@thorfiber.com Tel: (800) 521-8467...
  • Page 15 Select channel 1/2/3/…/32 apply the logo insertion, or you can select “all” to apply all channels Figure-8 3.2.3 System System → Network: Click ‘Network’, it displays the interface as Figure-9 where to set network parameters. To modify IP input address Set data port IP address Figure-9 System →...
  • Page 16 Figure-10 System → Configuration: Click “Configuration”, it displays the screen as Figure-11 where to set your configurations for the device. Select areas Figure-11 System → Firmware: Click “Firmware”, it displays the screen as Figure-12 where to update firmware for the device. Figure-12 System →...
  • Page 17 To select “Kernel log” and “System Log” Figure-13 System → Reboot: Click “Reboot”, it displays the screen as Figure-14 where to check the “Reboot”. Figure-14 sales@thorfiber.com Tel: (800) 521-8467 Email: https://thorbroadcast.com...
  • Page 18: Chapter 4 Troubleshooting

    Chapter 4 Troubleshooting Quality assurance system has been approved by CQC organization. For guarantee the products’ quality, reliability and stability. All THOR products have been passed the testing and inspection before ship out factory. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by THOR.
  • Page 19: Chapter 5 Packing List

    Chapter 5 Packing list  H-IP-32RF 1 pc  Power Cord 1 pc  Grounding Cable 1 pc sales@thorfiber.com Tel: (800) 521-8467 Email: https://thorbroadcast.com...
