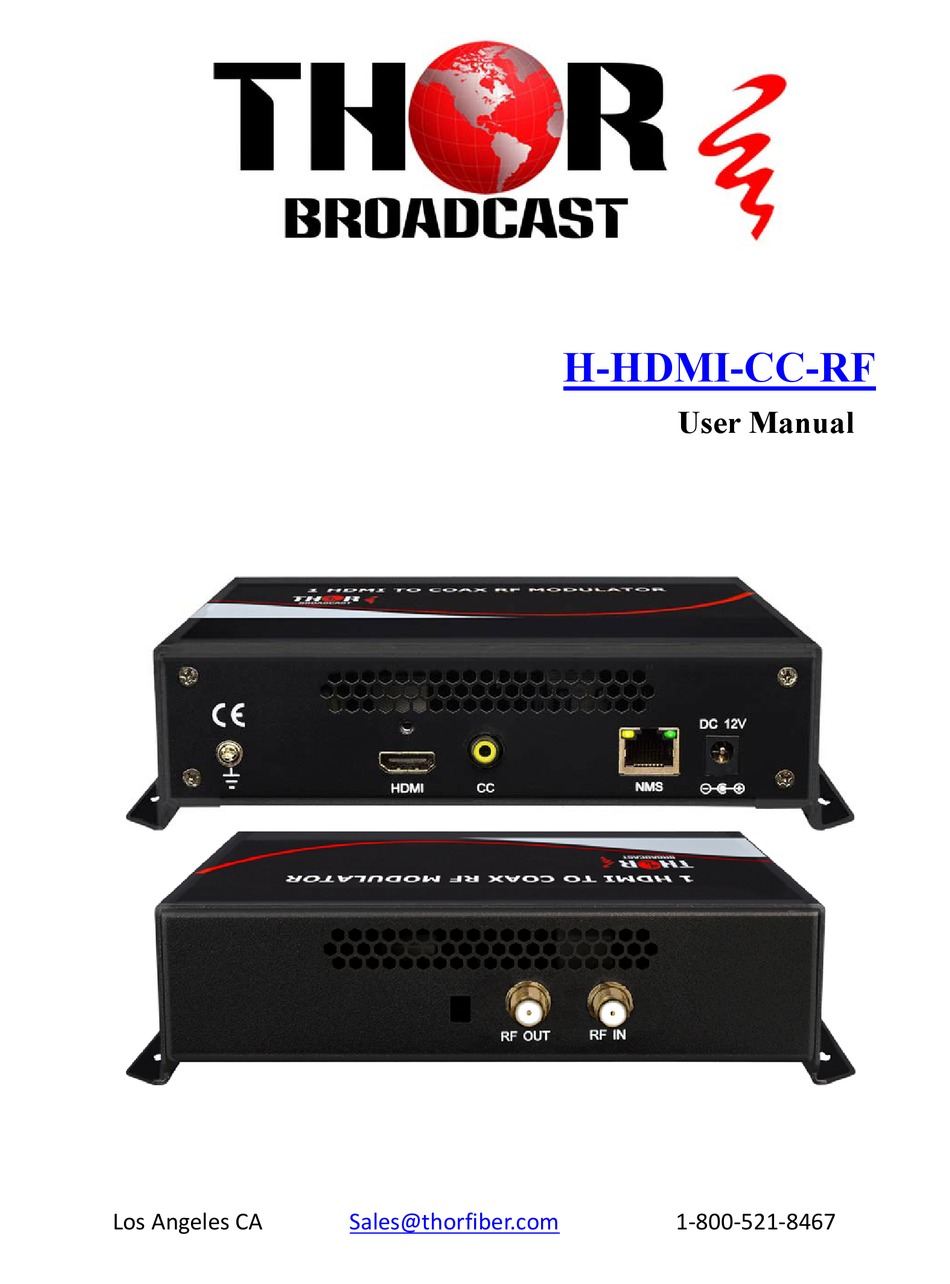

- Page 1 H-HDMI-CC-RF User Manual Los Angeles CA Sales@thorfiber.com 1‐800‐521‐8467...
- Page 2 H‐HDMI‐CC‐RF A Note from Thor about This Manual Intended Audience This user manual has been written to help people who have to use, integrate and to install the product. Some chapters require some prerequisite knowledge in electronics and especially in broadcast technologies and standards. ...
-
Page 3: Table Of Contents
H‐HDMI‐CC‐RF Directory Contents CHAPTER 1 INTRODUCTION ........................ 1 .......................... 1 RODUCT VERVIEW ............................ 1 EY EATURES ............................ 2 PECIFICATIONS ........................ 4 PPLICATION ESIGN RAWING ........................ 5 PPEARANCE AND ESCRIPTION CHAPTER 2 INSTALLATION GUIDE ...................... 6 ... -
Page 4: Chapter 1 Introduction
H‐HDMI‐CC‐RF Chapter 1 Introduction 1.1 Product Overview The most unique and cost effective Networked Digital HDMI RF modulator with CC (closed captioning). Designed to allow any HDMI source like an STB, satellite receiver, HDMI camera , DVD player, Computer, ROKU converted to any RF TV channel of your choice It is an all‐in‐one device integrating HD MPEG2 encoding with AC3 Dolby Audio and CC input with internal digital modulator. Converts HD audio / video signals from any device into DVB‐C/T/ATSC/ISDB‐T RF output. Unit supports any HD source with the following video resolutions: 720p, 1080i, 1080p The Closed Captioning input is CVBS ‐ baseband video analog RCA input, it reads CC form the CVBS NTSC Analog line 21 1.2 Key Features 1 HDMI channel in for encoding &1 CC input port MPEG‐2 video encoding MPEG1 Layer 2 audio encoding & Dolby AC3 DVB‐C/T/ATSC/ISDB RF output options Web management NMS via RJ45 Compact Form Factor Easy to setup ... -
Page 5: Specifications
H‐HDMI‐CC‐RF 1.3 Specifications HDMI Encoding Section Encoding MPEG2 Interface HDMI*1 Input Output 480@59.94/60i 480@30p 576@50i 576@25p 720@50/59.94/60p 720@25/30p Video Resolution 1080@50i 1080@25p 1080@59.94/60i 1080@30p 1080@50p 1080@25p 1080@59.94/60p 1080@30p Aspect 16:9 Ratio Bit rate 1.000~20.000 Mbps Encoding MPEGI layer 2, AAC, AC3 Audio Sample rate 48KHz... - Page 6 H‐HDMI‐CC‐RF Constellation QPSK, 16QAM, 64QAM Guard Interval 1/32, 1/16, 1/8, 1/4 Transmission Mode 2K, 4K, 8K Code rate 1/2, 2/3, 3/4, 5/6, 7/8 RF frequency 100~1000MHz, 1KHz step ATSC Modulator Section Standard ATSC A/53 Constellation 8 VSB RF output level 0~47dbm (44~90 dbµV), 1db step...
-
Page 7: Application Design Drawing
H‐HDMI‐CC‐RF 1.4 Application Design Drawing ... -
Page 8: Appearance And Description
H‐HDMI‐CC‐RF 1.5 Appearance and Description Power Supply Grounding HDMI in Port Web management and data ... -
Page 9: Chapter 2 Installation Guide
Mount the device in vertical position with the connectors located on the top side. When replacement parts are required, be sure the service technician has used replacement parts specified by Thor Broadcast. Unauthorized substitutes may result in fire, electric shock or severe malfunction which will not be covered by Thor’s Warranty. -
Page 10: Chapter 3 Web-Page Management
H‐HDMI‐CC‐RF Chapter 3 Web‐page Management You can alter the same settings through a computer by connecting the device to the web NMS Port. Always make sure that the computer’s IP address is different from the Units IP address; otherwise, it will cause an IP conflict. Below is an explanation of how you can adjust settings through a web portal. 3.1 Login The default IP address is 192.168.0.136 and you can connect the device and web NMS through this IP address. Connect the PC (Personal Computer) and the device with an Ethernet cable, and use ping command to confirm that they are on the same network segment. -
Page 11: Operation
H‐HDMI‐CC‐RF 3.2 Operation When we confirm the login, it displays the Homepage as in Figure-2 where you can have an overview of the device’s system information. User can click any item here to enter the corresponding interface to check information or... - Page 12 H‐HDMI‐CC‐RF System →: Network Click “Network, it will display the interface as in Figure-4 where to set network parameters. Here you can change the device network configuration as needed. Figure-4 System →: Firmware From the menu on left side of the webpage, clicking “Firmware”, it will display the screen as in Figure-5.
- Page 13 H‐HDMI‐CC‐RF Figure-6 System →: Log From the menu on left side of the webpage, click “Log”, it will display the screen as in Figure-7. Figure-7 ...
- Page 14 H‐HDMI‐CC‐RF Configuration: From the menu on left side of the webpage, click “Configuration”, it will display the screen as in Figure-8. Figure-8 ...
-
Page 15: Chapter 4 Packing List
H‐HDMI‐CC‐RF Chapter 4 Packing List H-HDMI-CC-RF User Manual Power Cord THOR BROADCAST LOS ANGELES CA 1-800-521-8467 ...
