Thor Broadcast H-THUNDER-4 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
4
H-THUNDER-
Modulator

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-THUNDER-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thor Broadcast H-THUNDER-4

Summary of Contents for Thor Broadcast H-THUNDER-4

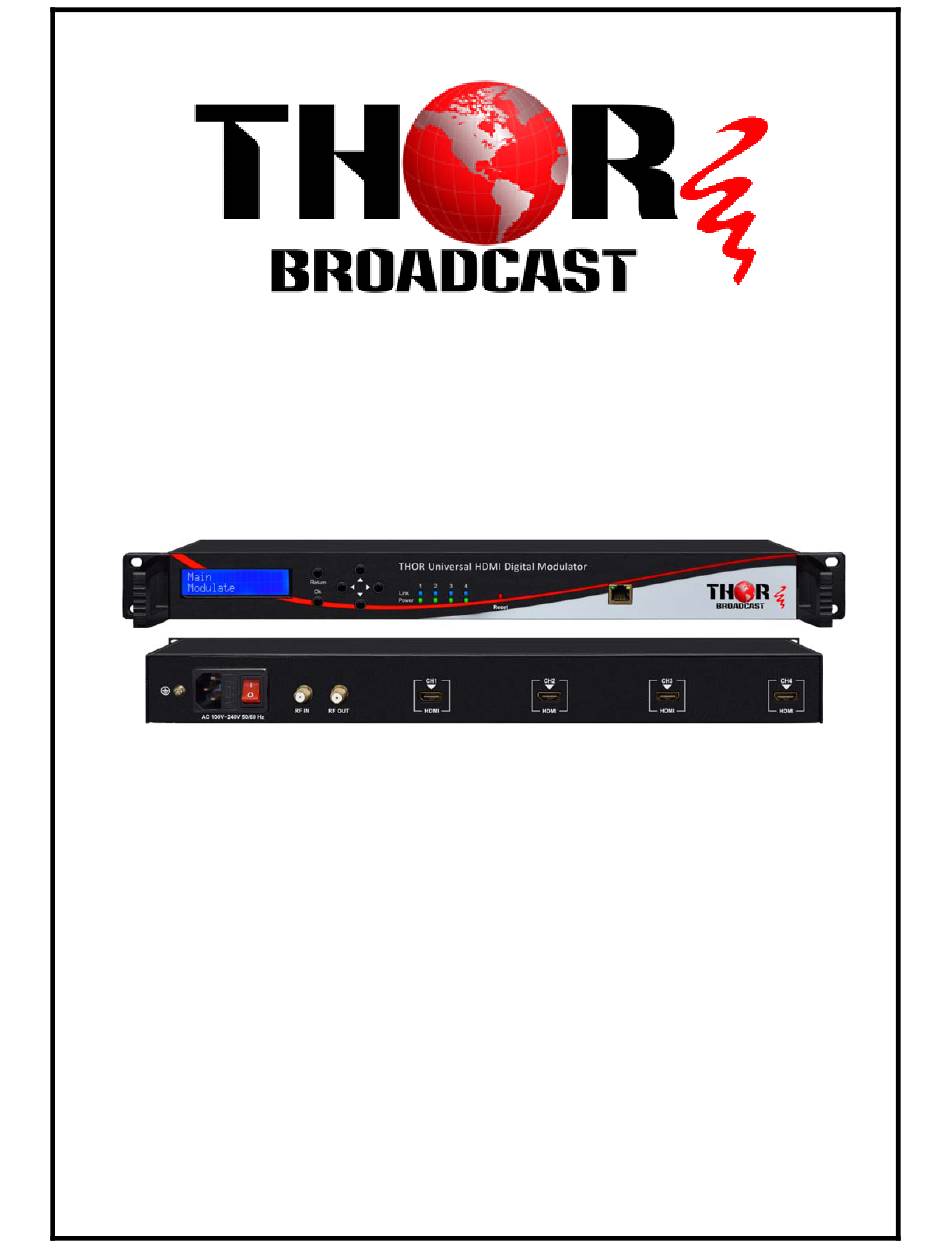

  • Page 1 User Manual H-THUNDER- Modulator...
  • Page 2 Disclaimer No part of this document may be reproduced in any form without the written permission of Thor Broadcast. The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Thor shall have no liability for any error or damage of any kind resulting from the use of this document.

  • Page 3: Table Of Contents

    H-THUNDER-4 Table of Contents CHAPTER 1 - INTRODUCTION PRODUCT OVERVIEW………………………………………………………………….……….……………………….……………………..…….…….. KEY FEATURES………………………………………….…………………………….……………………….…………………………..…..….…...…..SPECIFICATIONS………………………………………….…………………………………………………………………….………….…..……..….…. APPEARANCE AND DESCRIPTION………………………………………….………………………….………………………………….………...….. CHAPTER 2 -LCD OPERATION ………………………………………….………………………….………………….…………….….…... LCD MENU STRUCTURE………………………………………….………………………….……………………….…………………….……..…..…. GENERAL SETTINGS………………………………………….……………………….……………………………….………………….………….….. CHAPTER 3 - WEB NMS OPERATION ……………………………………………………………………………………….……..LOGIN………………………………………….………………………………………….………………………………………………….……………. OPERATION………………………………………….………………………………………………………………………………….……………..CHAPTER 4 - PACKING LIST ………………………………………….………………….…………………………………….…………...

  • Page 4: Product Overview

    Television with an RF tuner, STB, etc. The H-THUNDER-4 units are widely used everywhere such as the mall, market hall, theatre, hotels, restaurants, stadiums, race tracks, amphitheatres and etc. for advertising, monitoring, training and educating in company, schools, campuses, and healthcare.

  • Page 5: Specifications

    H-THUNDER-4 1.3 Specifications HDMI Encoding Section  Input  HDMI*4  Interface    Encoding  MPEG2    Input  Output      PAL,NTSC      720@50p    720@60p  Max.1080@30p  Video  1080@50i/p  1080@60i/p  Bit‐rate  2.000~20.000 Mbps  Rate Control  VBR  Aspect Ratio  16 :9    Encoding  MPEG1 layer 2, AAC, AC3    Sample rate  48KHz    MPEG1 layer 2(192kbps)  Audio ...

  • Page 6: Appearance And Description

    H-THUNDER-4 1.4 Appearance and Description Front Panel Illustration 1 - LCD Screen 5 - Directional Keys (up, down, left, right) 2 - OK (to Confirm) 6 - Power & Link Indicators 3 – Return (Escape) 7 - Reset Button 4 - NMS Ethernet Port...

  • Page 7: Chapter 2 -Lcd Operation

    H-THUNDER-4 Chapter 2 - LCD Operation Keyboard Function Description: OK: Activate the parameters which need modifications, or confirm the change after modification. RETURN: Cancel current entered value, resume previous setting; Return to previous menu. LEFT/RIGHT: Choose and set the parameters.
  • Page 8 H-THUNDER-4 2 Encode Input Source 2.1 Channel 1 Bit Rate Latency Audio Format PMT PID Video PID Audio PID 2.2 Channel 2 PCR PID 2.3 Channel 3 Same Contents as Channel 1 2.4 Channel 4 3 Modulate 3.1 Channel 1...

  • Page 9: General Settings

    Soft Version 2.2.1 TS Config The H-THUNDER-4 outputs up to 4 RF modulation carriers. Under this menu you can enter the corresponding channels (1-4) to set your relevant parameters. Select each channel and set your settings as you see fit.
  • Page 10 ON ID Program Number Program Provider Program Name 2.2.2 Encode This Broadcast H-THUNDER-4 is will allow you to alter audio and video settings as needed per channel 1/2/3/4 for variable results. Encode 2.1 Channel 1 Channel 1/2/3/4 The settings for the sub-menus are the same for Channels 1-4, so here we’ll show you one channel as an example.
  • Page 11 Audio PID PCR PID 2.2.3 Modulate The H-THUNDER-4 has up to 4 RF carriers, press the up and down keys to switch the channels, then press OK key enter the corresponding channel to set the relevant RF output parameters. Modulate...
  • Page 12 H-THUNDER-4 J.83B: Standard RF Frequency Constellation ATSC: Standard RF Frequency ISDB-T: Standard RF Frequency Constellation Guard Interval Code Rate Network Setting The Network Setting has 3 sub-menus as shown below. IP Address 192.168.0.188 Subnet Mask 255.255.255.0 Gateway 192.168.0.1 System Setting Save &...

  • Page 13: Chapter 3 - Web Nms Operation

    H-THUNDER-4 Save & Reboot Sure?  Restore In this menu, press OK key to restore the device the last saved configuration. Save & Reboot Sure?  Factory Set Choose press OK key to restore the device into factory’s default configuration.

  • Page 14: Login

    H-THUNDER-4 3. 1 Login The default IP of this device is 192.168.0.188. We can modify the IP through the front panel. Connect the PC and the device with net cable, and use ping command to confirm they are on the same network segment.
  • Page 15 H-THUNDER-4 Check the version information The modulate channels status summary  Click any item here to enter the corresponding interface to check information or set the parameters. Figure-2 Parameters → Encode: Click [ Encode ], it displays the information of the program from the 4 HDMI encoded channels, users select different modulating J.83B Modulation ...
  • Page 16 H-THUNDER-4 AC3, AAC, MPEG1 Layer2 Audio encoding format  DVB‐T Modulation  DVB-C(J.83A) Modulation Tel: (800) 521‐8467              Email: sales@thorfiber.com              http://www.thorbroadcast.com ...
  • Page 17 H-THUNDER-4 ATSC Modulation ISDB-T Modulation Tel: (800) 521‐8467              Email: sales@thorfiber.com              http://www.thorbroadcast.com ...
  • Page 18 H-THUNDER-4 System → Modulate: Click [ Modulate ], it displays the interface where users can configure the modulating parameters. J.83B Modulation Click [ Channel 2/3/4 ], it displays the interface where you can configure the modulating parameters. Channel 2: DVB-T modulation Channel 3: DVB-C(J.83A) modulation...
  • Page 19 H-THUNDER-4 Channel 4: ATSC modulation Channel 1: ISDB-T modulation System → Network: Click [ Network ], it displays the where to set network parameters. Tel: (800) 521‐8467              Email: sales@thorfiber.com              http://www.thorbroadcast.com ...
  • Page 20 H-THUNDER-4 System→Password: Click [ Password ], it displays the screen where to set login password for the web NMS System→Firmware: Click [ Firmware ], it displays the screen where to update the firmware on this modulator. [ Remark ] Read this carefully before starting the update operation Make sure the network connection is solid and stable before operation.
  • Page 21 H-THUNDER-4 Click [ Update MCU Firmware ] to put file up then auto start update. Progress shown below. Click [ Update Modulator Firmware ] to put file up then auto start update. Progress shown below. Tel: (800) 521‐8467              Email: sales@thorfiber.com              http://www.thorbroadcast.com ...
  • Page 22 H-THUNDER-4 Click [ Update Web application ] to put file up then auto start update. Progress shown below. If the web app cannot open, please try the following: First, turn off the power supply and press OK button to power on. Then it will be forced to enter the bootloader burning interface and select the file to burn again.
  • Page 23 H-THUNDER-4 System → Configuration: Click [ Factory Set ], it displays the screen, Click OK to Factory default Setting. Click [ Load Configuration ] it will jump a window to upload the file that saved settings before. Click [ Save Configuration ] it saves parameter settings as a file to convenient uploading.

  • Page 24: Chapter 4 - Packing List

    H-THUNDER-4 Chapter 4 ‐ Packing List    BROADCAST H-THUNDER-4 User's Manual HDMI Cable 4 PCS Power Cord   For Further Tech Support   1‐800‐521‐Thor(8467)  support@thorfiber.com  Tel: (800) 521‐8467              Email: sales@thorfiber.com              http://www.thorbroadcast.com ...
