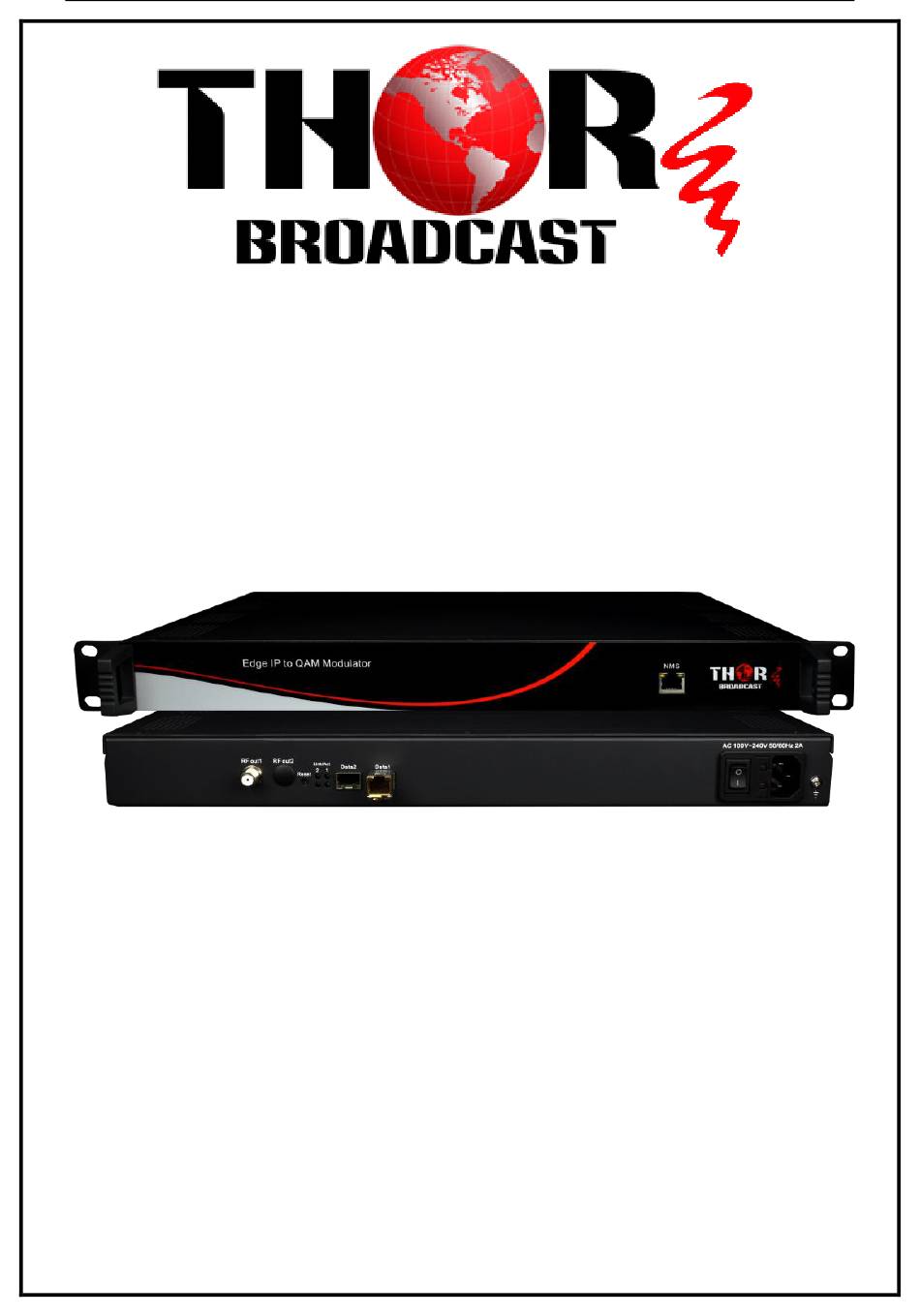

  • Page 1 User Manual H-IPRF-16QAM Revision 2017 Thor Fiber 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...
  • Page 2 Disclaimer No part of this document may be reproduced in any form without the written permission of Thor Broadcast. The contents of this document are subject to revision without notice due to continued progress in methodology, design and manufacturing. Thor shall have no liability for any error or damage of any kind resulting from the use of this document.

  • Page 3: Table Of Contents

    H-IPRF-16QAM Table of Contents CHAPTER 1 PRODUCT OVERVIEW ........................1 1.1 OUTLINE ..............................1 1.2 KEY FEATURES ............................1 1.3 GENERAL MAPPING ..........................2 1.4 CARRIER SETTING ILLUSTRATION ......................2 1.5 SPECIFICATIONS ............................3 CHAPTER 2 - APPEARANCE..........................4 2.1 FRONTAL VIEW: ............................4 2.2 REAR PANEL ILLUSTRATION: ........................

  • Page 4: Chapter 1 Product Overview

    1.1 Outline The Thor Broadcast new Edge QAM Modulator is a new 1 RU chassis headend in a box that will ingest IP feeds and convert to a QAM channel lineup of your choosing. The latest gen unit has an...

  • Page 5: General Mapping

    H-IPRF-16QAM 1.3 General Mapping 1.4 Carrier Setting Illustration Thor Fiber 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com http://www.thorbroadcast.com...

  • Page 6: Specifications

    H-IPRF-16QAM 1.5 Specifications Input 512×2 IP input, 2 100/1000M Ethernet Port (SFP) TS over UDP/RTP, unicast and multicast, IGMP Input Transport Protocol V2/V3 Transmission Rate Max 840Mbps for each GE input Input Channel 1024 Output Channel Max PIDs 180 per channel...

  • Page 7: Chapter 2 - Appearance

    H-IPRF-16QAM Chapter 2 - Appearance 2.1 Frontal View: 2.2 Rear Panel Illustration: NMS/CAS: network management port and CA data port RF output port Reset IP: Reset webmaster IP address, recover to default IP address Link/Act Indicators Data Input/Output 1/2 (SFP)

  • Page 8: Chapter 3 Installation Guide

     H-IPRF-16/32QAM  User’s Manual  Power Cord If any item is missing with the list above, please contact Thor Broadcast – 1-800-521-8467 3.2 Installation Preparation The main steps of the installation include:  Checking the possible device for missing pieces or damage from transport ...

  • Page 9: Environment

    H-IPRF-16QAM 3.2.2 Environment Item Requirement When installing unit on rack, the distance between 2 rows of Machine Hall Space machine frames should be 1.2~1.5m and the distance against wall should be no less than 0.8m. Electric Isolation, Dust Free, HVAC ,...

  • Page 10: Grounding

    H-IPRF-16QAM 3.2.3 Grounding  It is important to keep this device grounded to ensure all of the modules function correctly. Correctly grounding the device will also help prevent any electrical interference, lightening. Etc. Also it helps reject minor interference that may disrupt the devices ability to function smoothly.

  • Page 11: Chapter 4 Web Nms Management

    H-IPRF-16QAM Chapter 4 Web NMS Management This is literally how you control the device; there is no front interface with D-Pad 4.1 Login The factory default IP address is 192.168.0.136 and users can connect the device and web NMS through this IP address.

  • Page 12: Operation

    H-IPRF-16QAM 4.2 Operation 4.2.1 Summary When we confirm the login, it displays the summary interface as Figure-2. Click any item here to enter the corresponding interface to check information or set the parameters. Figure-2 4.2.2 Parameters Parameters → TS Config: Click “TS Config”, it displays the interface where users can configure the output TS parameters in...
  • Page 13 H-IPRF-16QAM Figure-3  Output TS X From the menu on top of the webpage, click “Output TS X”, it’ll display the interface as in Figure-4. Select the output TS channels. To select output TS channel 1-16 Figure-4  Stream Select From the menu on top of the webpage, click “Stream Select”, it displays the interface where...
  • Page 14 H-IPRF-16QAM Input Area Output Area Operation Area Figure-5 Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are as below: ：Enable/disable the CA Filter function. By clicking the box, you can filter the input CA to avoid disturbing the devices scrambling function.
  • Page 15 H-IPRF-16QAM Figure 6  General From the menu on the top of the webpage, click “General”, it displays the interface where you can set parameters for each output channel. (Figure-7) Add description Figure-7 Click and then click to apply the modified parameters.(Figure-8)
  • Page 16 H-IPRF-16QAM Figure-8  PID Pass From the menu on the top of the webpage, click “PID Pass”, to display the interface where to add the PIDs which need pass through. (Figure-9) Figure-9 Parameters → Scrambler: From the menu on left side of the webpage, clicking “Scrambler”, it displays the interface where users can choose the programs to scramble.
  • Page 17 H-IPRF-16QAM Scramble channel select carrier select CA channel select EMMG and ECMG working state, green means it works normally, while red means communication error or no This field indicates the communication. current outputting programs. The programs selected will be scrambled.
  • Page 18 H-IPRF-16QAM Parameters → IP Stream: Thor’s Edge QAM supports TS to output in IP (16*MPTS) format through the DATA port. Click ‘IP Stream’, it will display the interface as shown in Figure-12 where to set IP out parameters. Figure-12 Thor Fiber 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com...
  • Page 19 H-IPRF-16QAM System → Network: Click ‘Network’, it will display the interface as shown in Figure-13 where to set network parameters. Figure-13 System → Password: From the menu on left side of the webpage, click “Password”, it will display the screen as shown in Figure-14 where to set the login account and password for the web NMS.
  • Page 20 H-IPRF-16QAM System → Configuration: From the menu on left side of the webpage, click “Configuration”, it will display the screen as Figure- 15 where to set your configurations for the device. Select areas Figure-15 System → Firmware: From the menu on left side of the webpage, click “Firmware”, it will display the screen as shown in Figure-16 where to update firmware for the device.
  • Page 21 H-IPRF-16QAM Figure-16 System → Log: From the menu on left side of the webpage, click “Log”, it will display the screen as shown in Figure-17 where to check the “Log”. To select “Kernel log” and “System Log” Figure-17 Thor Fiber 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com...

  • Page 22: Chapter 5 - Troubleshooting

    H-IPRF-16QAM Chapter 5 - Troubleshooting THOR’s ISO9001 quality assurance system has been approved by the CQC organization. We guarantee the products’ quality, reliability and stability. All THOR products haven passed all testing and manual inspections before they are shipped out. The testing and inspection scheme already covers all the Optical, Electronic and Mechanical criteria which have been published by THOR.

  • Page 23: Chapter 6 Packing List

    H-IPRF-16QAM Chapter 6 Packing list  Thor Broadcast IP QAM Modulator 1 pc  User’s Manual 1 pc  Power Cord 1 pc Thor Fiber & Thor Broadcast Los Angeles CA 1-800-521-8467 ext 2 for Support Thor Fiber 2016 Tel: (800) 521-8467 Email: sales@thorfiber.com...
