Thor Broadcast H-4ADHD-QAM-IP-LL Quick Setup Manual

Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
H-4ADHD-QAM-IP-LL
Step 1: Connections
CVBS1
HDMI 1
Connect the NMS port to your PC using an ethernet cable
Open web browser and go to http://192.168.0.136
Login/Password: admin/admin
Step 2: Encoders
Recommended Settings:
https://thorbroadcast.com
HDMI 3
HDMI 2
CVBS2
Lock lights indicate the inputs are properly connected
1). Select
"Encoder 1"
from the
main menu
2). Select Channel
800-521-8467
CVBS3
CVBS4
NMS
DATA
4). Click
"Apply"
sales@thorfiber.com
Quick Setup Guide
HDMI 4
RF OUT
3). Select Input
Repeat these steps as
neccesary for CH1/CH2
and "Encoder 2"
Connect Power

Advertisement

loading
Need help?

Need help?

Do you have a question about the H-4ADHD-QAM-IP-LL and is the answer not in the manual?

Questions and answers

Related Manuals for Thor Broadcast H-4ADHD-QAM-IP-LL

Summary of Contents for Thor Broadcast H-4ADHD-QAM-IP-LL

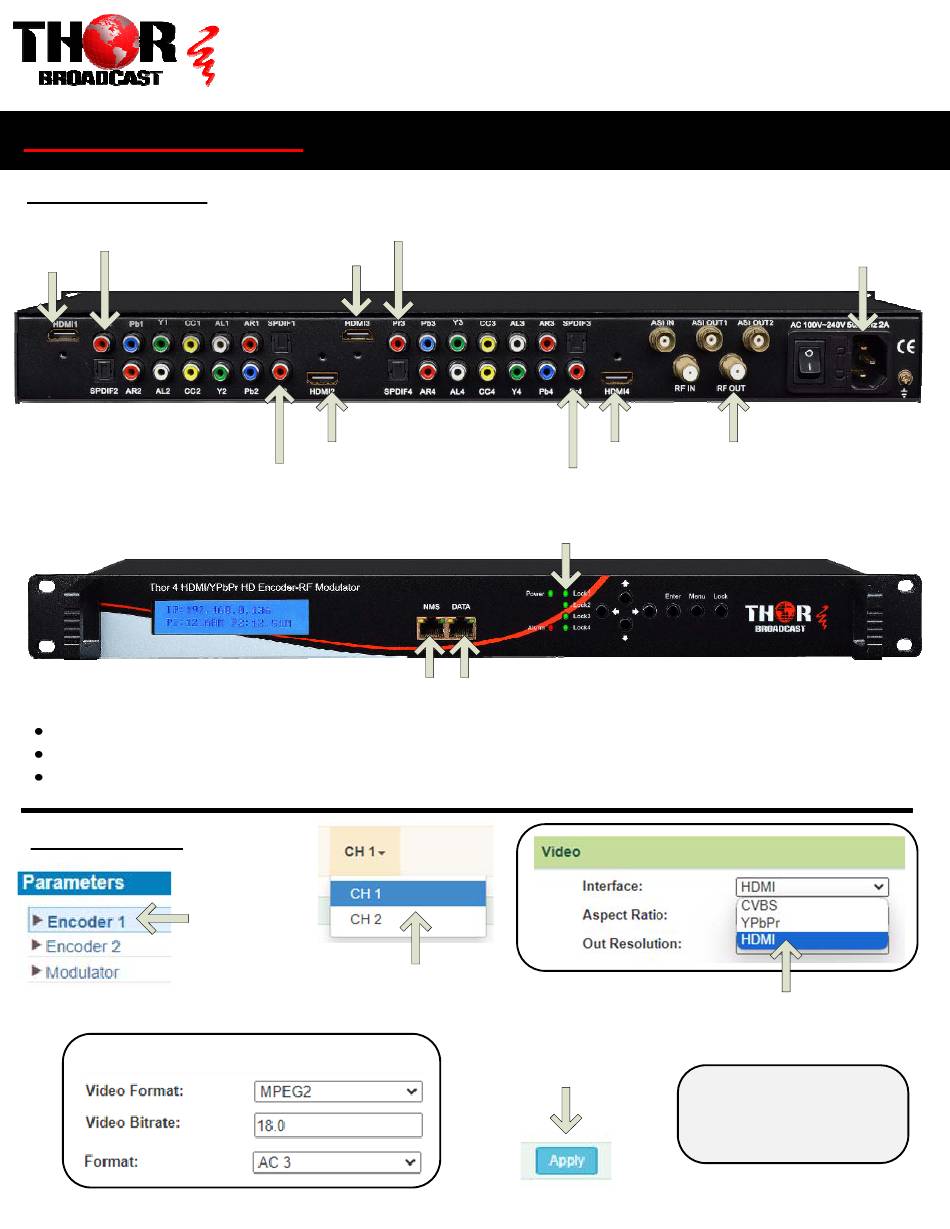

  • Page 1 800-521-8467 sales@thorfiber.com H-4ADHD-QAM-IP-LL Quick Setup Guide Step 1: Connections CVBS3 CVBS1 Connect Power HDMI 3 HDMI 1 HDMI 2 HDMI 4 RF OUT CVBS2 CVBS4 Lock lights indicate the inputs are properly connected DATA Connect the NMS port to your PC using an ethernet cable Open web browser and go to http://192.168.0.136...
  • Page 2 Step 3: Modulator Settings IMPORTANT: Encoder 1/CH1 = #1 Encoder 1/CH2 = #2 Encoder 2/CH1 = #3 Select “Modulator” Encoder 2/CH2 = #4 from the main menu Select top pencil icon to edit all Default frequencies for Select pencil icon Status lights viewing on TV channels on the same line to...
  • Page 3 Step 4: IP Streaming IMPORTANT: TO ACCESS STREAMS, CONNECT DEVICES TO THE DATA PORT USING AN ETHERNET CABLE Select “Output Settings” from the main menu Select top pencil icon to edit all Check box to Enable Channel Status lights Select pencil must be green icon on the same line to...

  • Page 4: Step 5: Ts Config

    Step 5: TS CONFIG IMPORTANT: Output TS 1 = Encoder 1/CH1 = TV-101 Output TS 2 = Encoder 1/CH2 = TV-102 Select “TS Config” from Output TS 3 = Encoder 2/CH1 = TV-201 the main menu Output TS 4 = Encoder 2/CH2 = TV-202 Select Output TS (1-4) Assigned programs will display under output.
  • Page 5 Step 6: Save Configuration Select “Configuration” from the main menu Click “Save config” Confirmation message will appear briefly until saving is complete. H-4ADHD-QAM-IP-LL Quick Setup Guide https://thorbroadcast.com 800-521-8467 sales@thorfiber.com...
