Thor Broadcast H-HDMI-RF-PETIT Quick Setup Manual

Hide thumbs Also See for H-HDMI-RF-PETIT:
1
2
3
4

Advertisement

Table of Contents

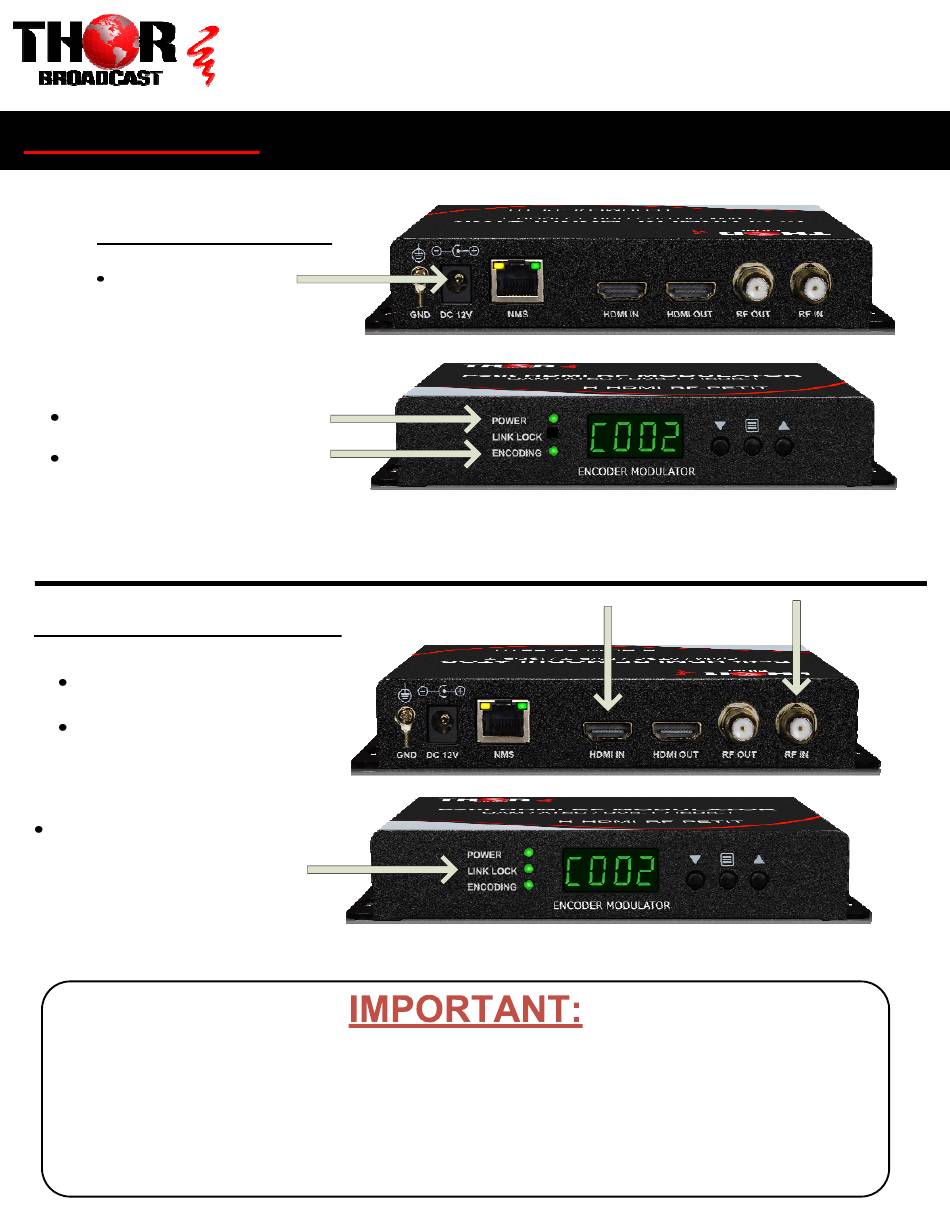

H-HDMI-RF-PETIT

Step 1: CONNECT POWER

Connect the DC 12V
power adapter
"POWER" LED will go GREEN
"ENCODING" LED will go GREEN
when the unit is ready for input

Step 2: CONNECT VIDEO SOURCE

Connect "HDMI IN" to input
from an HDMI source
Connect "RF IN" to input
from an RF source
When the unit recognizes
the correct Video resolution,
the "LINK LOCK" LED will
go GREEN.
The "LINK LOCK" indicator MUST go GREEN. If not, check troubleshooting steps.
Please note that the unit supports 480i, 720p, 1080i and 1080p
Make sure your video source is set to the STATIC VIDEO RESOLUTION for any of those
https://thorbroadcast.com
After the boot-up sequence the front Digital display will
show C002 indicating default modulation channel #2
59.94 and 60Hz incoming video resolution.
formats. Do not set your video source resolution "Auto".
800-521-8467
sales@thorfiber.com
Quick Setup Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-HDMI-RF-PETIT and is the answer not in the manual?

Questions and answers

Related Manuals for Thor Broadcast H-HDMI-RF-PETIT

Summary of Contents for Thor Broadcast H-HDMI-RF-PETIT

  • Page 1 800-521-8467 sales@thorfiber.com H-HDMI-RF-PETIT Quick Setup Guide Step 1: CONNECT POWER Connect the DC 12V power adapter "POWER" LED will go GREEN "ENCODING" LED will go GREEN when the unit is ready for input After the boot-up sequence the front Digital display will...
  • Page 2 Step 3: CONNECT OUTPUT Connect the RF OUT to your TV with coaxial cable Optionally, you can connect to your TV using the HDMI OUT as a pass-through port Step 4: SCAN FOR CHANNELS Scan the TV on CABLE and it should find With all 3 LED indicators green and the LCD displaying C002, the unit will output the default channel 2-1...
  • Page 3 TO CONSOLE WITH PC: Connect the NMS port to your PC using an ethernet cable Open web browser and go to http://192.68.1.10 Login/Password: user/user Select “Modulation Parameters” from the Main Menu Select “Air” or “Cable” Select Channel # (02 - 69) Click “Submit”...
  • Page 4 Check if all 3 LEDs are GREEN, the LINK LOCK Must by ON, indicating incoming Video Press center HOME button 1x For J83b scan your TV for CABLE channels For ATSC scan your TV for AIR channels H-HDMI-RF-PETIT Quick Setup Guide https://thorbroadcast.com 800-521-8467 sales@thorfiber.com...
