IC400 PRO ASSEMBLY
The bike has been assembled and tested at the factory, so you shouldn't have any
problems putting all the parts together. Components are designed to fit together, and
only basic tools are required for the assembly process. Inside the box you will find a Tools
Pack (Hex Allen Key, Multi-tool, Washers and Bolts). See previous page.
To assemble your JLL IC400 PRO please follow these easy steps:

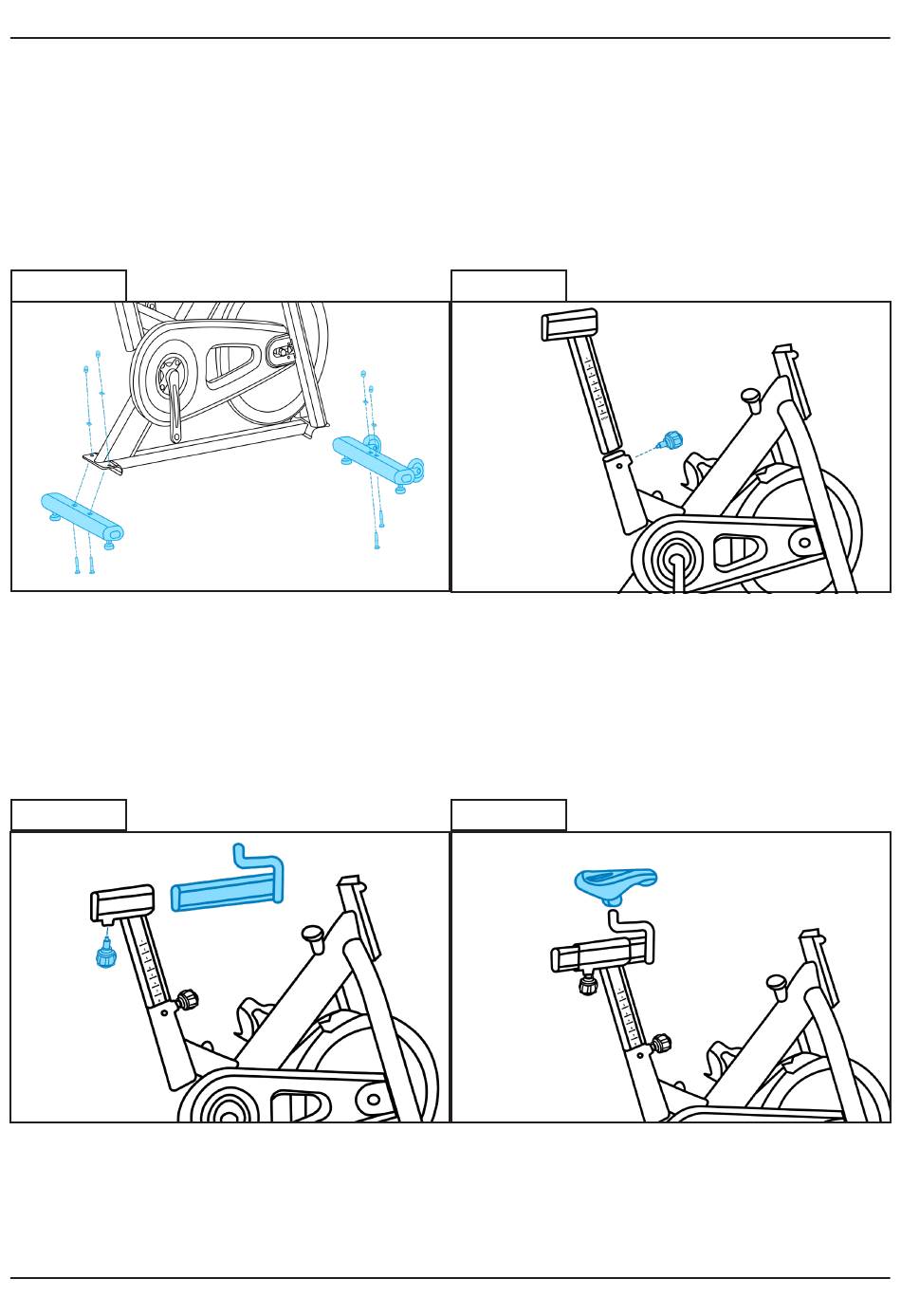

STEP 1
Attach the front and rear stabilisers to
the main frame using 4 x M8*52 car-
riage bolts, 4 x flat
washers and 4 x M8 domed nuts.
STEP 3
Attach the horizontal seat post to the
vertical seat post and secure using a
spring loaded knob and large washer.
12
STEP 2
Slide the vertical seat post into the
frame and secure using the spring
loaded knob.
STEP 4
Attach the saddle to the seat post and
tighten both sides using the mutli-tool
and wrench.
