Congatec conga-HPC/uATX-Server User Manual page 37

COM-HPC
Connector

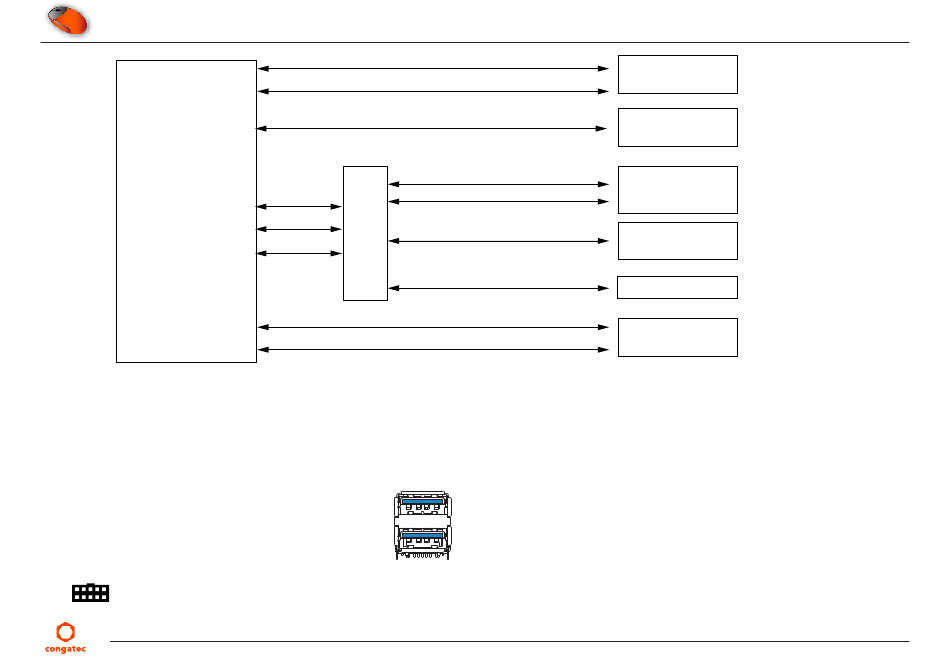

4.5.1 Dual-stacked USB 3.1 Type-A
The conga-HPC/uATX-Server provides two USB 3.1 ports via a dual-stacked USB Type-A connector X15. Port 0 is on the lower slot while port 1
is on the upper slot. Each port supports a maximum current of one ampere.
Connector Type
X15: USB Type-A plug
Copyright © 2024 congatec GmbH
USB 3.1 Port 0
USB 3.1 Port 1
USB 3.1 Port 2
USB Hub Port 1 (SSTX±1/SSRX±1/USB 2.0)
USB Hub Port 2 (SSTX±2/SSRX±2/USB 2.0)
USB3_SSTX±
USB3_SSRX±
USB
USB Hub Port 3 (SSTX±3/SSRX±3/USB 2.0)
Hub
USB 2.0 Port 3
USB Hub Port 4 (USB 2.0)
USB 2.0 Port 4
USB 2.0 Port 5
X15
X15 - Dual Stacked
X59 - High Rise
X60 - USB 3.1 Type-C
X9 - M.2 Key B
BMC (AST2600)
X16 - USB 2.0 Header
Port 1
Port 0
HATXm001
USB 3.1 Type A
USB 3.1 Type A
