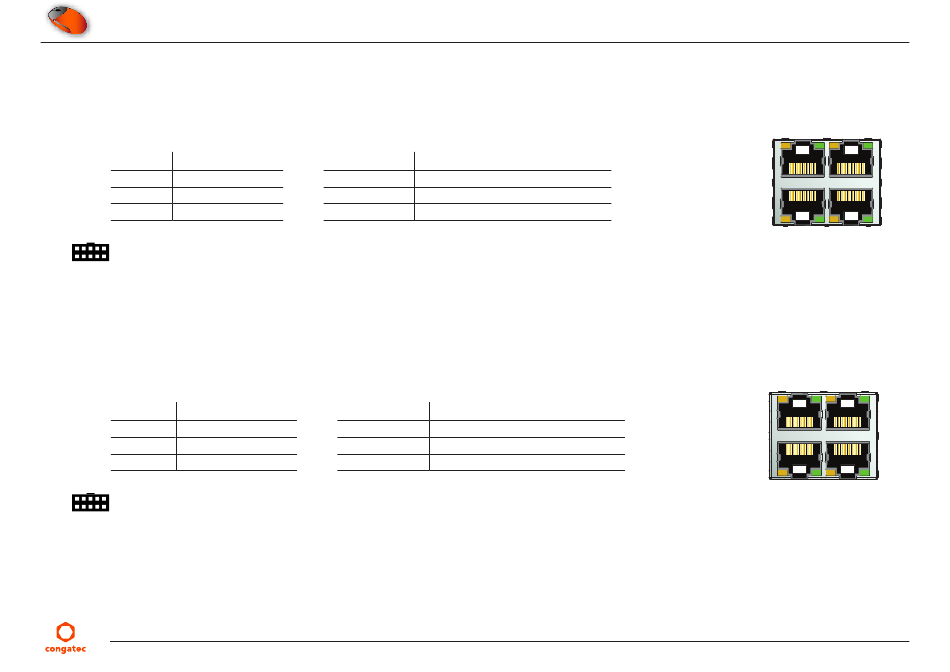

4.3.1 BMC Gigabit Ethernet
The conga-HPC/uATX-Server provides a gigabit BMC management interface on standard RJ45 connector (X19B). The BMC management
interface does not support network connectivity.
Table 25 X19B Status LED
Left LED Description
Off 10 Mbps link speed
Green 100 Mbps link speed
Yellow 1000 Mbps link speed
Connector Type
X19: 8-pin RJ45 plug
4.3.2 Onboard Gigabit Ethernet
The conga-HPC/uATX-Server provides two 2.5 GbE interface on standard RJ45 connectors (X19A and X19D) via the Intel i226 Ethernet controller.
Table 26 X19A/X19D Status LED
Left LED Description
Off 10/100 Mbps link speed
Green 1 Gbps link speed
Yellow 2.5 Gbps link speed
Connector Type
X19: 8-pin RJ45 plug
Copyright © 2024 congatec GmbH
Right LED Description
Off No link
Steady on (green) Link established but no activity detected
Blinking (green) Link established and activity is detected
Right LED Description
Off No link
Steady on (green) Link established but no activity detected
Blinking (green) Link established and activity is detected
