SW2.3 OFF
ON
SW2.4 OFF
ON

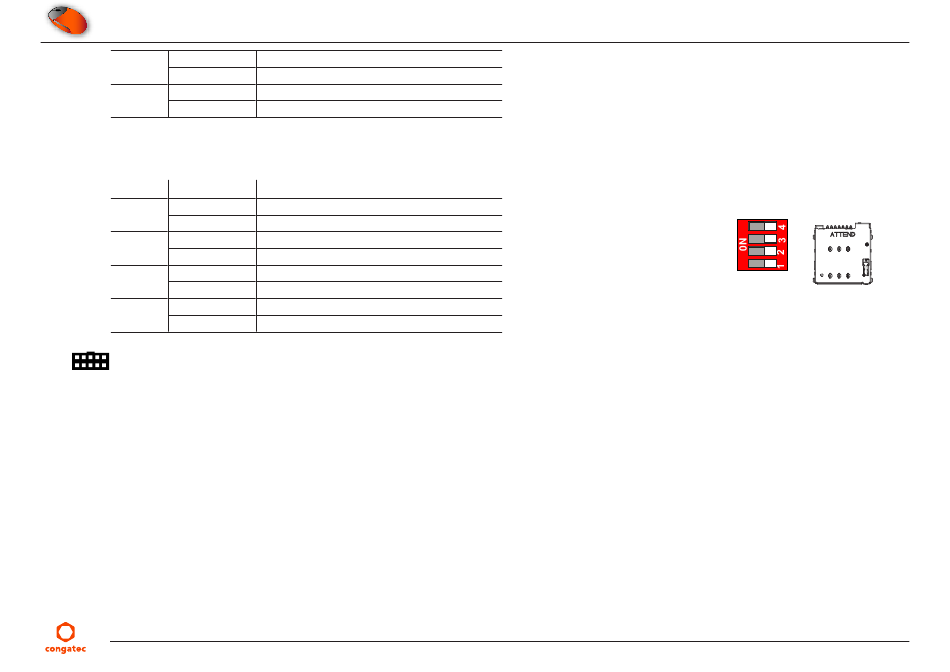

Table 24 SW3 - M.2 WWAN Configuration
Switch Configuration Description
SW3.1 OFF
ON
SW3.2 OFF
ON
SW3.3 OFF
ON
SW3.4 OFF
ON
Connector Type
X9: PCIe M.2 key B card size 2242, 2280, 3042, 3052
X10: Nano SIM card
4.3 Ethernet Connectors
The conga-HPC/uATX-Server provides the following Ethernet connectors:
• four RJ45 gigabit Ethernet connectors
– a gigabit BMC management interface (X19B)
– two 2.5 GbE via onboard Intel i226 Ethernet controller (X19A and X19D)
– a 2.5 GbE from COM-HPC module (X19C)
• four SFP28 (10 GbE or 25 GbE) connectors
Copyright © 2024 congatec GmbH
Disconnect WOWWAN# from WAKE1 (default)
Connect WOWWAN# to WAKE1
Disconnect M.2 SMB_DAT/CLK (default)
Connect M.2 SMB_DAT/CLK
Deactivate M.2 WDIS1# control - wireless 1 (default)
Activate M.2 WDIS1# control
Deactivate M.2 WDIS2# control - wireless 2 (default)
Activate M.2 WDIS2# control
Deactivate M.2 reset control (default)
Activate M.2 reset control
Deactive M.2 full card power-off control (default)
Activate M.2 full card power-off control
