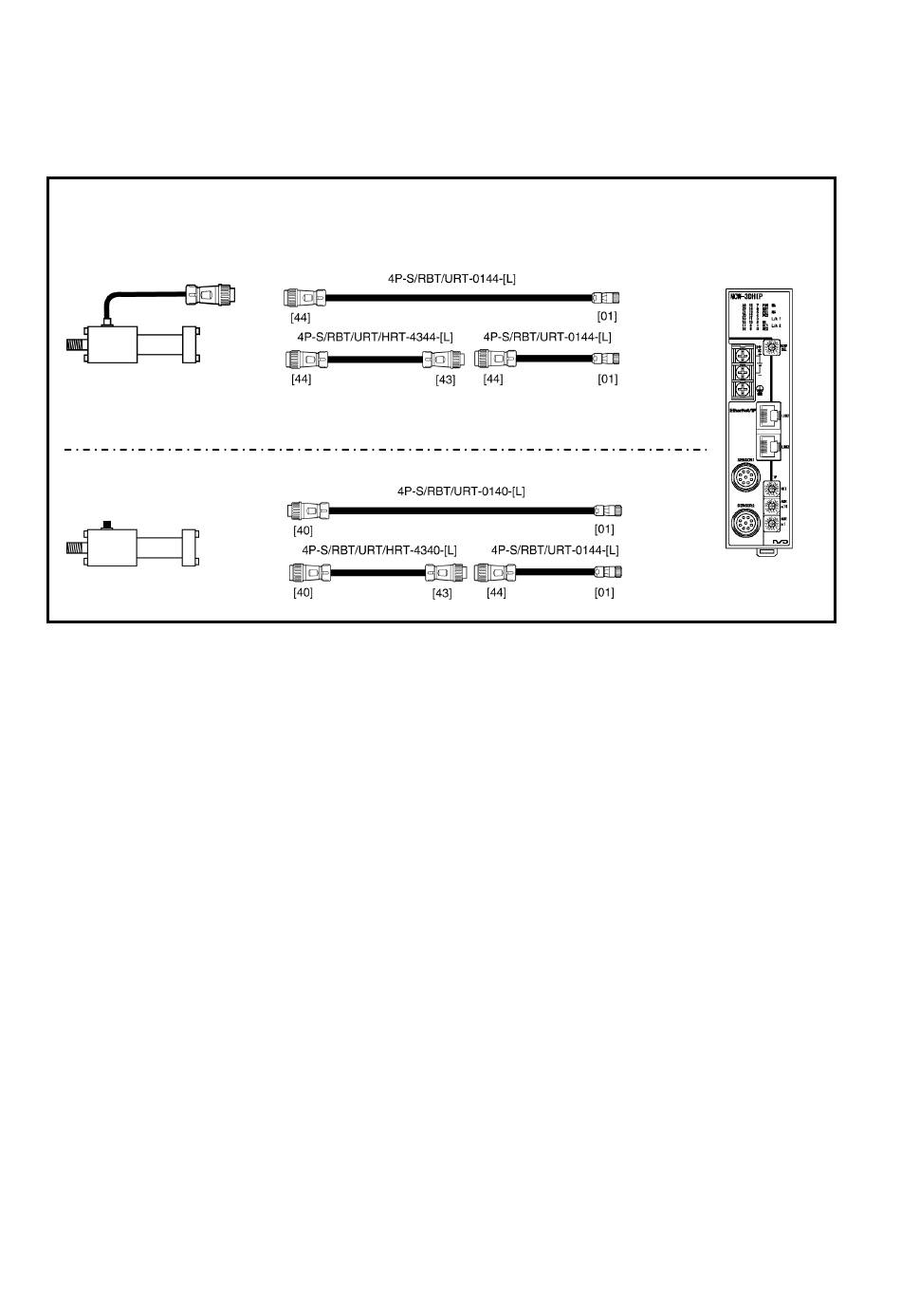

7-1-1. Connection configure example of the sensor cable
● In the case of using the NSD special cable
ABSOCODER sensor
Extension sensor cable
Converter
With interconnecting cable
Without interconnecting cable
24
