NSD ABSOCODER NCW-3DHIPLC Specifications & Instruction Manual page 12

2. MODEL SELECTION WHEN ORDERING

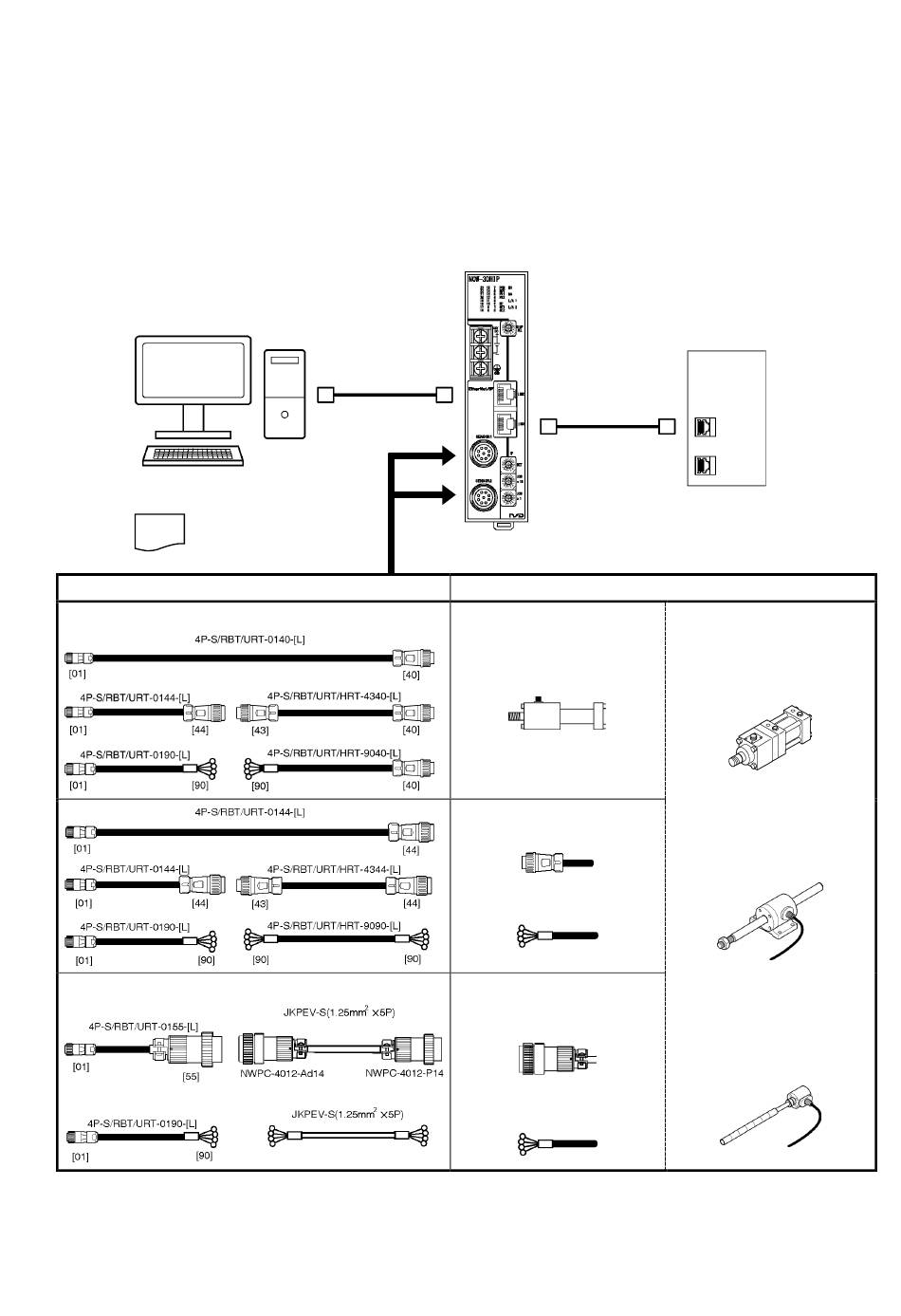

The following figure indicates the connection configuration of NCW-3DHIP.
Before ordering, refer to the connection configuration and model list. Please prepare by customer except (1) to (4) in
the connection configuration.
● Connection configuration
EtherNet/IP master
( PLC, Industrial PC )
Configuration Tool
(4) EDS File
(3) Extension sensor cable
In the case of using the NSD special cable
In the case of using the commercially available cable
(1) NCW-3DHIP
( EtherNet/IP slave)
(2) ABSOCODER sensor
No cable
(SCM,SCJ,SCMJ,SCJJ)
Connector type
B
R
P
R
4
EtherNet/IP slave
CYLNUC Cylinder
CYLNUC MarkⅡ Cylinder
VLS-12.8PRA28
VLS-12.8MHP28
IRS-51.2P
IRS-32.8P
