NSD ABSOCODER NCW-3DHIPLC Specifications & Instruction Manual page 24

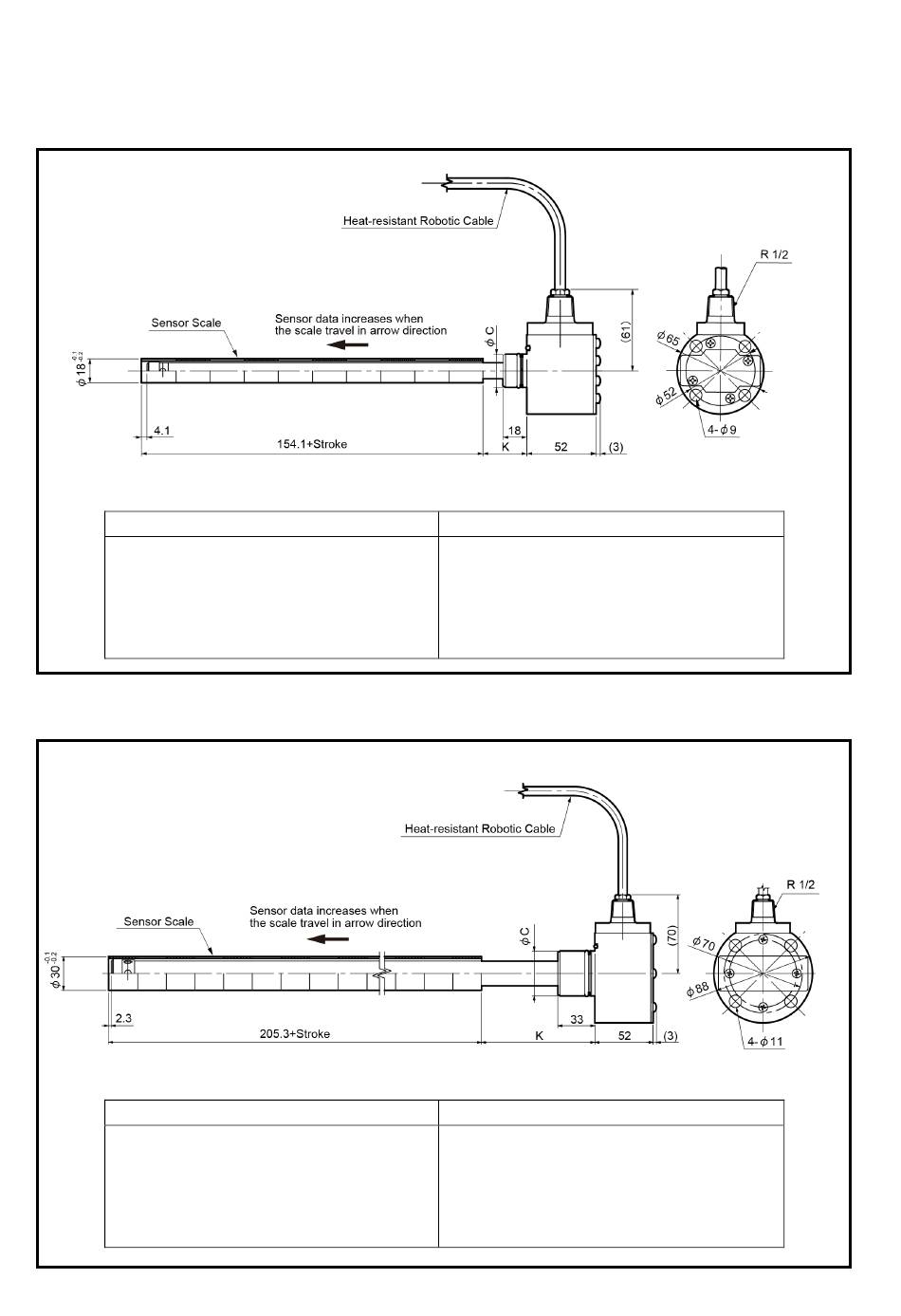

(4) Inrodsensor (IRS-51.2P)
◆ IRS-51.2P18[ ], IRS-51.2PA18[ ]
K: Backward limit
One of following values is designated on "K"
by the sensor model.
IRS-51.2P(A)18A: 33mm
IRS-51.2P(A)18B: 58.6mm
IRS-51.2P(A)18C: 84.2mm
IRS-51.2P(A)18D: 109.8mm
◆ IRS-51.2P30[ ], IRS-51.2PA30[ ]
K: Backward limit
One of following values is designated on "K"
by the sensor model.
IRS-51.2P(A)30A: 50mm
IRS-51.2P(A)30B: 75.6mm
IRS-51.2P(A)30C: 101.2mm
IRS-51.2P(A)30D: 126.8mm
φC: Mounting dimension of the sensor head
0
IRS-51.2P18: 25
－0.05
0
IRS-51.2PA18: 25
－0.02
φC: Mounting dimension of the sensor head
0
IRS-51.2P30: 40
－0.05
0
IRS-51.2PA30: 40
－0.02
16
Units: mm
