Is possible to insert directly the Unit (using its unique number) by
compiling the "Selected BACnet Engineering Unit" field; or by
selecting with the fields "Select the Type" and "Select unit" the
Type/Unit desired. If the second way is used, is necessary to press the
"Select Engineering Unit" button for confirm the choice.

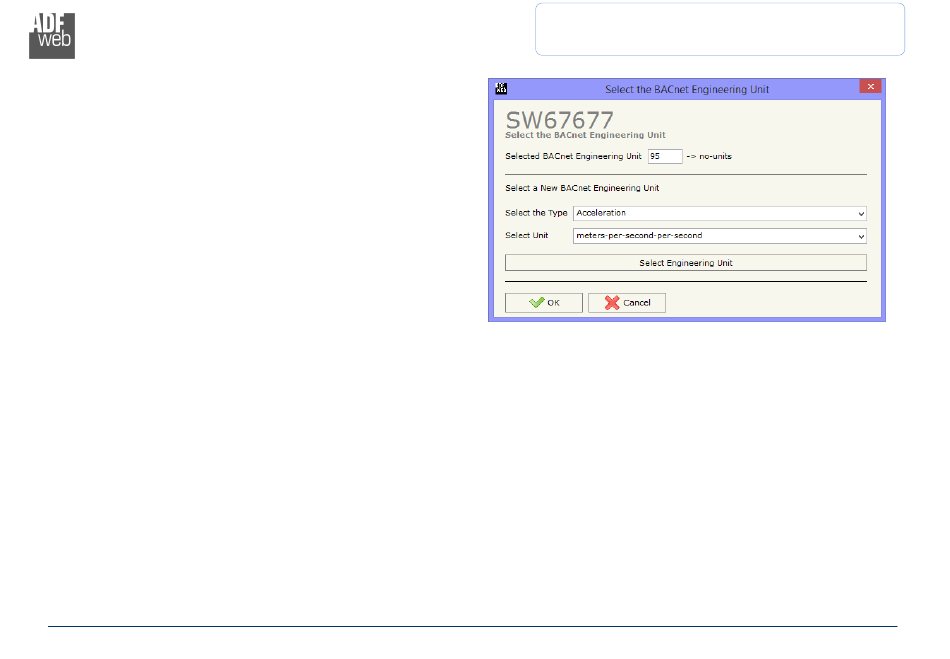

Figure 9: "Select the BACnet Engineering Unit" window
OBJECTS MAP:
By Pressing the "Objects Map" button from the main window for SW67677 (Fig. 2) is possible to create a .csv document with the map of
BACnet Objects.
