SEND FRAMES:
By pressing the "Send Frames" button from the main window for SW67677 (Fig. 2) the "Send CAN frames" window appears (Fig. 6).
The COB inserted in this table contains the data writeable by BACnet. These frames are sent by the Converter.
The data of the columns have the following meanings:
In the field "Cob-ID" insert the COB of the CAN frame;
In the field "Type" is possible to select which type of CAN packet use for this Cob-ID; or 2.0A (11 bits) or 2.0B (29 bits);
In the field "Dimension" insert the number of byte of the COB (from 1 to 8);
In the field "Send Frame
Change", the frame is sent when the data changes; the second is "On Times" and the frame is send cyclically;
In the field "Timer Send" insert the interval used for the "Send Frame Type On Times". The time is in milliseconds;
In the field "Mnemonic" it is possible to insert a brief description.

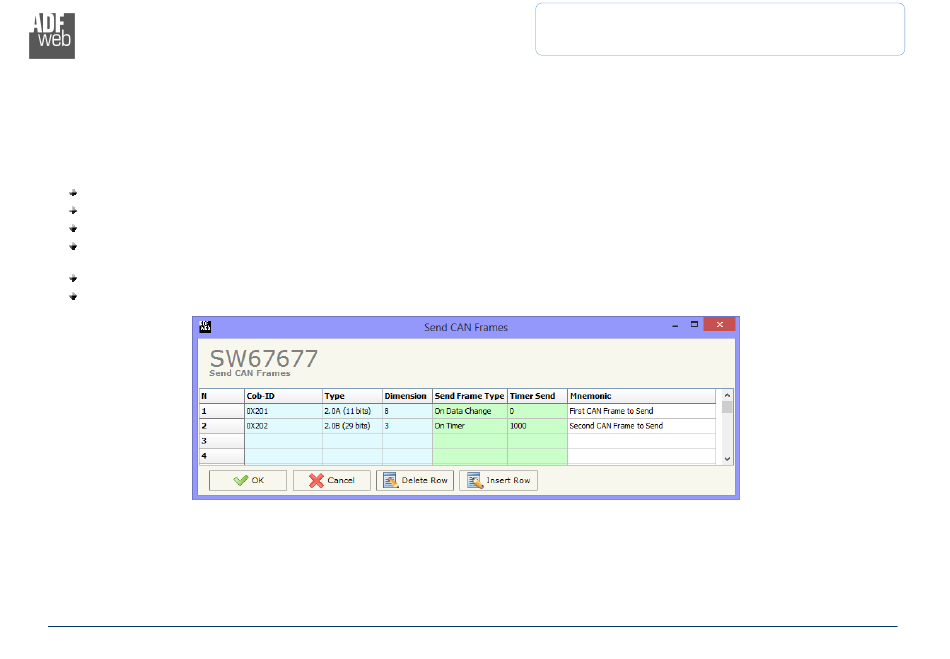

Figure 6: "Send CAN Frames" window
