SET BACNET ACCESS:
By Pressing the "Set BACnet Access " button from the main window for SW67677 (Fig. 2) the window "BACnet Set Access" appears (Fig.
8).
The window is divided in two parts, the "BACnet in Read" that contains the BACnet objects readable by a BACnet master (the CAN data
associated to these objects arrives to the converter); and "BACnet in write" that contains the BACnet objects writeable by a BACnet master
(the CAN data associated to these objects are sent by the Converter).

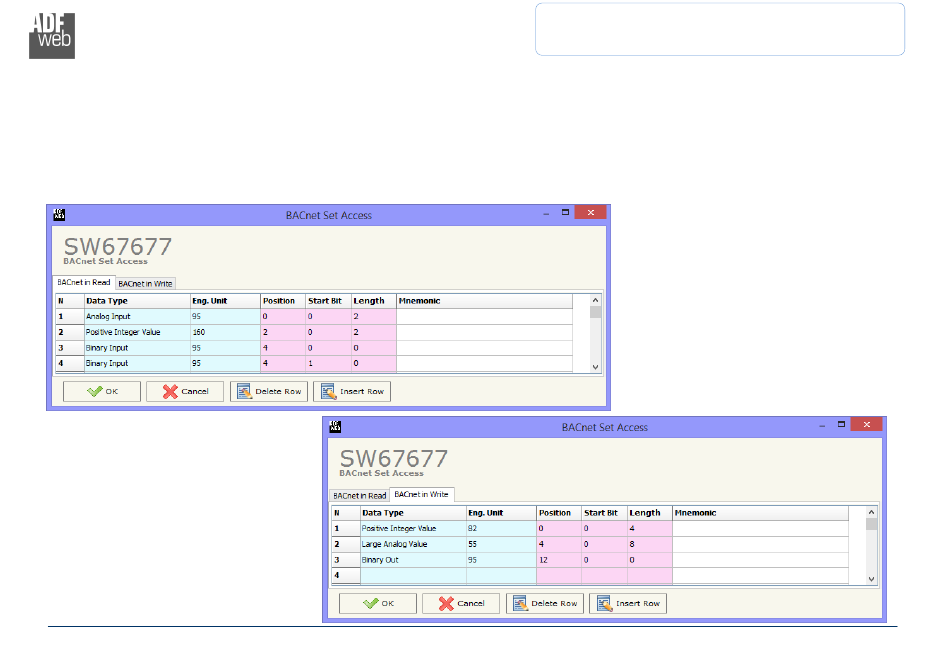

Figure 8: "BACnet Set Access" window
