RECEIVE FRAMES:
By pressing the "Receive Frames" button from the main window for SW67677 (Fig. 2) the "Receive CAN Frames" window appears (Fig. 4).
The COB inserted in this table contains the data readable by the BACnet master. These frames are accepted by the Converter.
The data of the columns have the following meanings:
In the field "Cob-ID" insert the COB of the CAN frame;
In the field "Type" is possible to select which type of CAN packet use for this Cob-ID; or 2.0A (11 bits) or 2.0B (29 bits);
In the field "Dimension" insert the number of byte of the COB (from 1 to 8);
The field "TimeOut" is used for put at zero the data into BACnet if the CAN frame don't arrives with a frequency less than the time
expressed in the field. If the value in the field is 0, means that you don't want to use this feature, and so the value is never deleted;
In the field "Mnemonic" it is possible to insert a brief description.

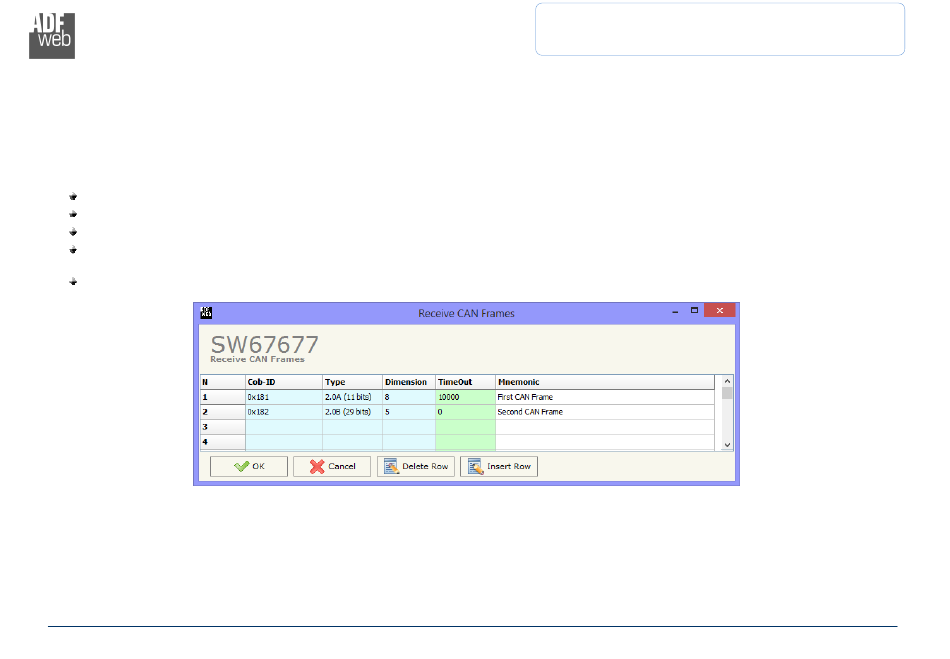

Figure 4: "Receive CAN Frames" window
