CAN:

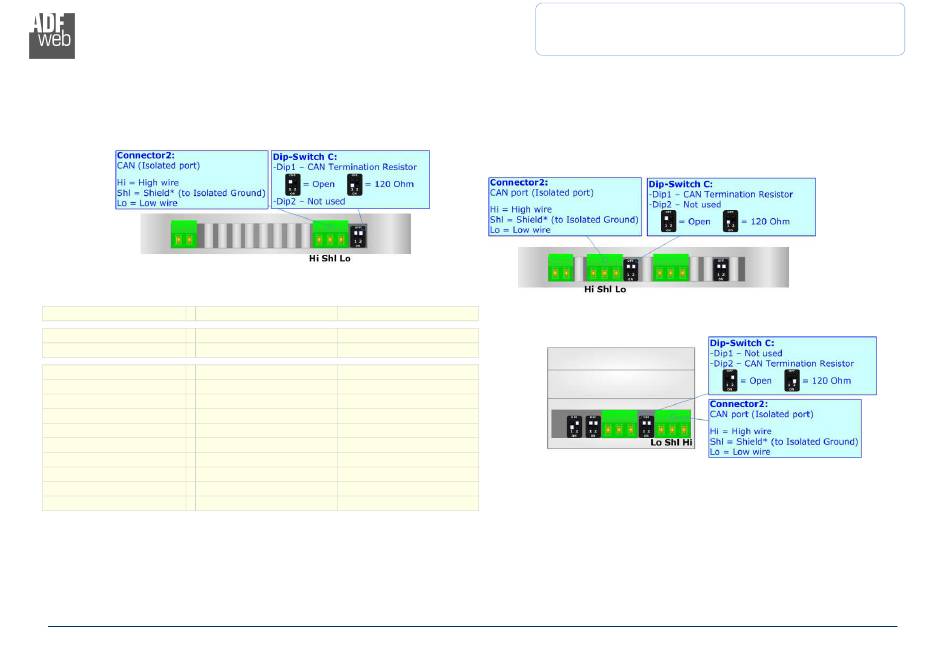

For terminating the CAN line with a 120Ω resistor it is necessary to put Dip1 of 'Dip-Switch C' (for codes HD67677-IP-A1 and HD67677-
MSTP-A1) or Dip2 of 'Dip-Switch C' (for code HD67677-MSTP-B2) at ON position.
Cable characteristics:
DC parameter:
AC parameters:
Length Baud Rate [bps]
ADFweb.com S.r.l.
Impedance 70 Ohm/m
Impedance 120 Ohm/m
Delay 5 ns/m
Length MAX [m]
10 K 5000
20 K 2500
50 K 1000
100 K 650
125 K 500
250 K 250
500 K 100
800 K 50
1000 K 25
