INFO RECEIVE:

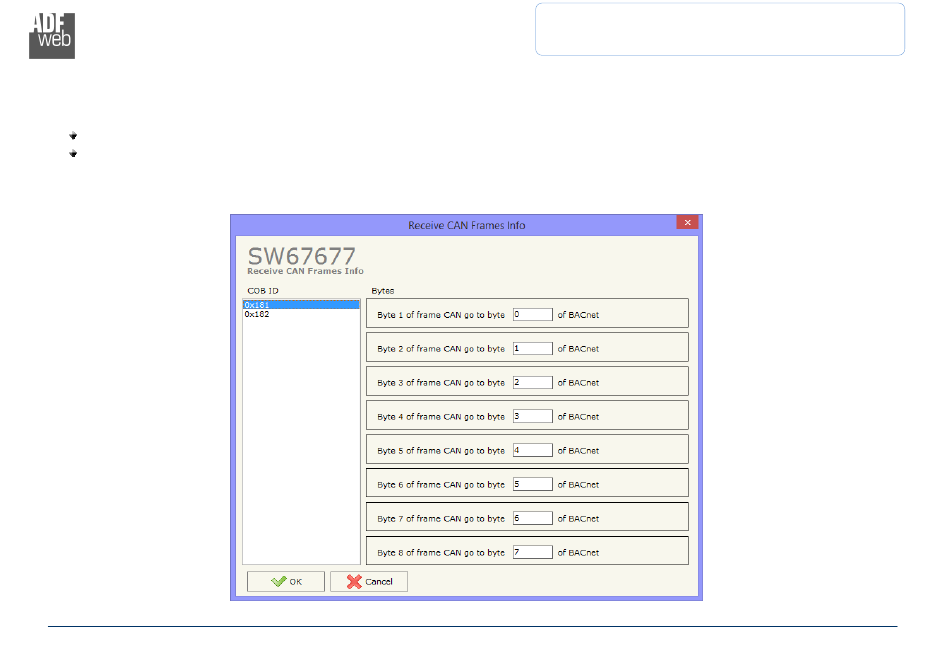

By pressing the "Info Receive" button from the main window for SW67677 (Fig. 2) the "Receive CAN Frames Info" window appears (Fig. 5).
In the "COB ID" field there are the COB ID that you have inserts in the "Receive CAN Frames" window;
In the "Bytes" field select the correspondence of the byte in BACnet.
For example:
Byte 1 of frame CAN go to byte 0 in BACnet: the first byte of CAN frame is 0x11 in the byte 0 of BACnet I can read 0x11.
