INFO SEND:
By pressing the "Info Send" button from the main window for SW67677 (Fig. 2) the "Send CAN Frames Info" window appears (Fig. 7).
In the "COB ID" field there are the COB ID that you have inserts in the "Send CAN frames" window;
In the field "Bytes" select the correspondence of the byte in BACnet.
For example:
Byte 1 of frame CAN is byte 0 in BACnet: the byte 0 of BACnet is 0x22, the first byte of CAN frame with COB=0x201 will be 0x22.
ADFweb.com S.r.l.

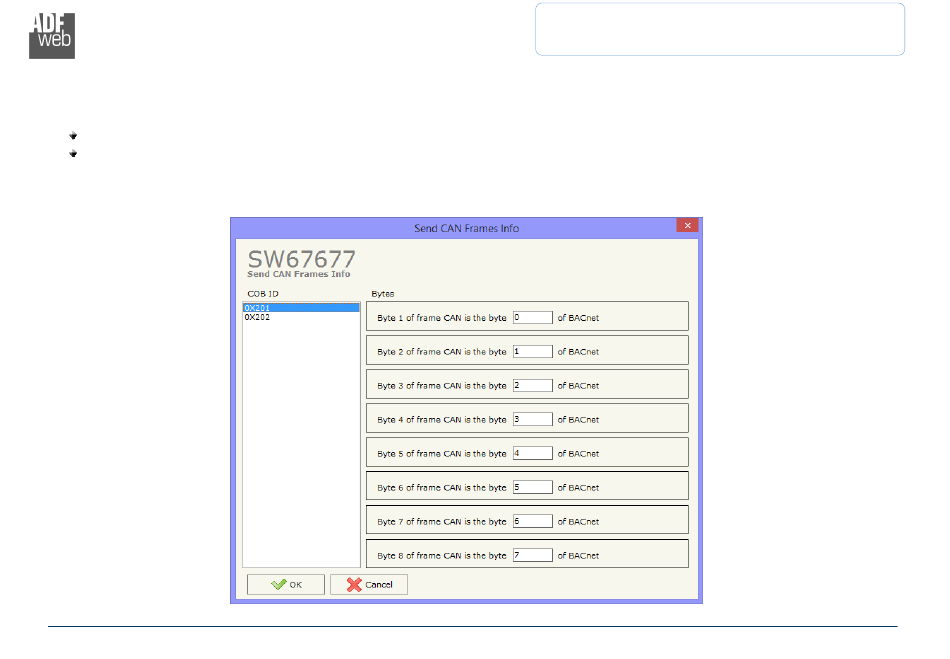

Figure 7: "Send Frames Info" window
