CONFIGURATION:
You need Compositor SW67251 software on your PC in order to perform the following:
Define the parameters of two buses;
Define which NMEA 2000 frames are reading from the
DeviceNet;
Define which NMEA 2000 frames are writing from the DeviceNet.
USE OF COMPOSITOR SW67251:
To configure the Gateway use the available software that runs with
Windows, called SW67251. It is downloadable on the site
www.adfweb.com and its operation is described in this document.
When launching SW67251 the window on the right appears (Fig. 2).
ADFweb.com Srl – IT31010 – Mareno – Treviso
User Manual NMEA 2000 / DeviceNet
Document code: MN67251_ENG

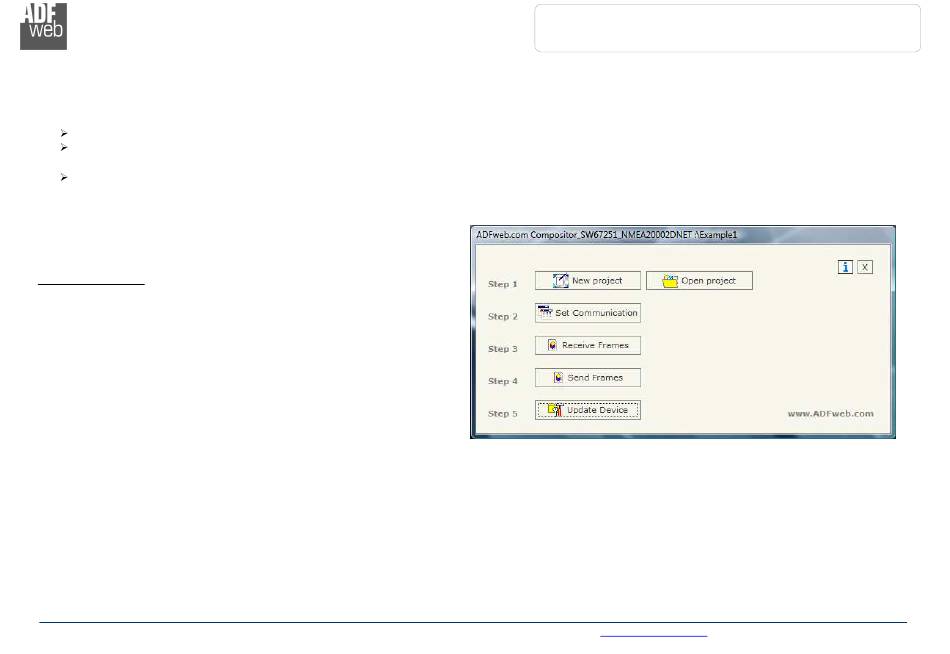

Figure 4: Main window for SW67251
