Industrial Electronic Devices
User Manual
Revision 1.000
English

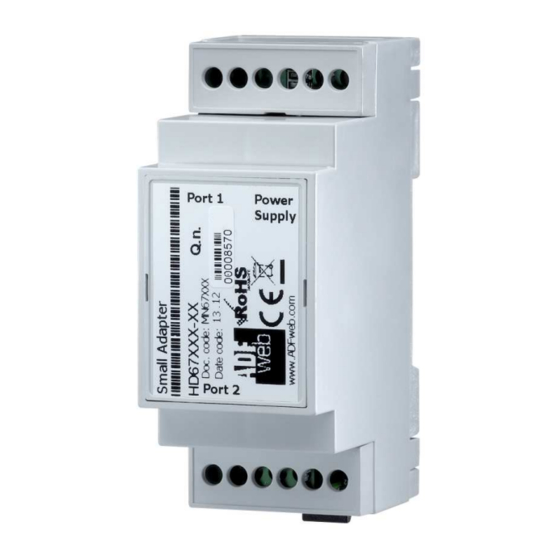

Serial / MQTT - Converter
(Order Code: HD67932-x-B2)
For Website information:
www.adfweb.com?Product=HD67932-B2
For Price information:
www.adfweb.com?Price=HD67932-2-B2
www.adfweb.com?Price=HD67932-4-B2
Benefits and Main Features:
Very easy to configure
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual Serial / MQTT
Document code: MN67932_ENG
For others MQTT products, see also the following links:
Converter MQTT to
www.adfweb.com?Product=HD67930
www.adfweb.com?Product=HD67931
www.adfweb.com?Product=HD67933
www.adfweb.com?Product=HD67934
www.adfweb.com?Product=HD67935
www.adfweb.com?Product=HD67936
www.adfweb.com?Product=HD67937
www.adfweb.com?Product=HD67938
www.adfweb.com?Product=HD67939
www.adfweb.com?Product=HD67940
www.adfweb.com?Product=HD67941
www.adfweb.com?Product=HD67942
www.adfweb.com?Product=HD67943
www.adfweb.com?Product=HD67944
www.adfweb.com?Product=HD67945
www.adfweb.com?Product=HD67946
www.adfweb.com?Product=HD67947
www.adfweb.com?Product=HD67948
www.adfweb.com?Product=HD67949
www.adfweb.com?Product=HD67950
www.adfweb.com?Product=HD67951
www.adfweb.com?Product=HD67952
www.adfweb.com?Product=HD67953
www.adfweb.com?Product=HD67954
Do you have an your customer protocol?
www.adfweb.com?Product=HD67003
Do you need to choose a device? do you want help?
www.adfweb.com?Cmd=helpme
Revision 1.000
Page 1 of 32
(Ethernet)
(M-Bus)
(Modbus Master)
(Modbus Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
(BACnet Master)
(BACnet Slave)
(CAN)
(CANopen)
(DALI)
(DeviceNet Master)
(DeviceNet Slave)
(DMX)
(EtherNet/IP)
(J1939)
(KNX)
(NMEA 0183)
(NMEA 2000)
(PROFIBUS Master)
(PROFIBUS Slave)
(PROFINET)
(SNMP Manager)
(SNMP Agent)
Advertisement
Table of Contents
Related Manuals for ADF Web HD67932-B2 Series
Summary of Contents for ADF Web HD67932-B2 Series

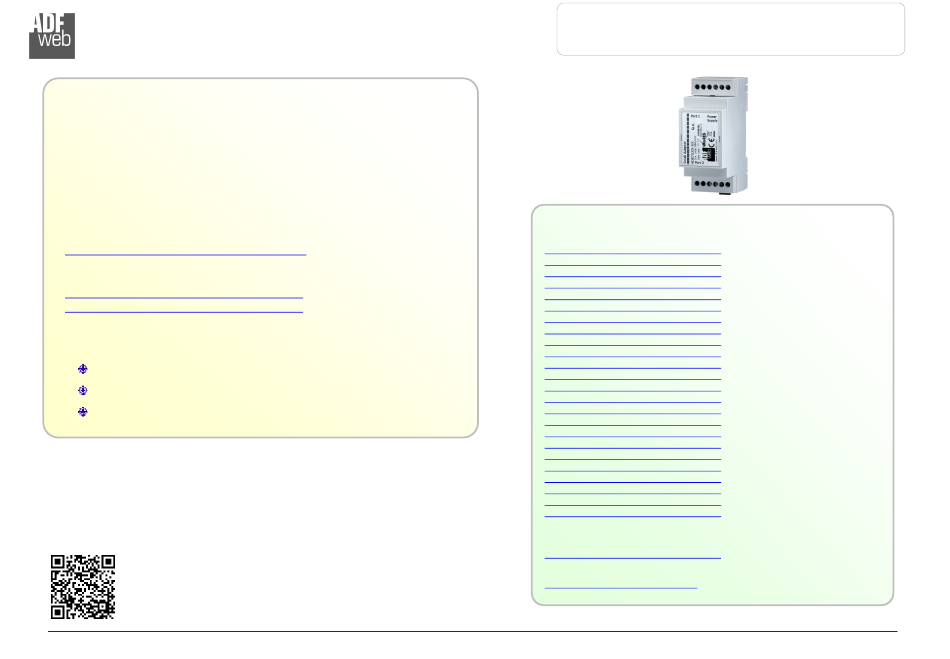

- Page 1 User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 1 of 32 Industrial Electronic Devices User Manual Revision 1.000 English Serial / MQTT - Converter (Order Code: HD67932-x-B2) For others MQTT products, see also the following links: For Website information: Converter MQTT to www.adfweb.com?Product=HD67932-B2 www.adfweb.com?Product=HD67930...
-
Page 2: Table Of Contents
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 2 of 32 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 3 of 32 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 4 of 32 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 5 of 32 Industrial Electronic Devices CONNECTION SCHEME: Figure 1a: Connection scheme for HD67932-2-B2 ADFweb.com S.r.l. - Page 6 User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 6 of 32 Industrial Electronic Devices Figure 1b: Connection scheme for HD67932-4-B2 ADFweb.com S.r.l.
-
Page 7: Characteristics
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 7 of 32 Industrial Electronic Devices CHARACTERISTICS: The HD67932-B2 is a Serial / MQTT Converter. It allows the following characteristics: Electrical isolation between Ethernet / Serial port / Power Supply; Mountable on 35mm Rail DIN;... -
Page 8: Power Supply
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 8 of 32 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC:... -
Page 9: Function Modes
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 9 of 32 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 10: Leds
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 10 of 32 Industrial Electronic Devices LEDS: The device has got five LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 11: Rs232
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 11 of 32 Industrial Electronic Devices RS232: The connection from RS232 socket to a serial port (example one from a personal computer) must be made with a NULL MODEM cable (a serial cable where the pins 2 and 3 are crossed). -
Page 12: Rs485
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 12 of 32 Industrial Electronic Devices RS485: For terminate the RS485 line with a 120Ω resistor it is necessary to put ON dip 1, like in figure. The maximum length of the cable should be 1200m (4000 feet). Here some codes of cables: Belden: p/n 8132 - 2x 28AWG stranded twisted pairs conductor + foil shield + braid shield;... -
Page 13: Ethernet
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 13 of 32 Industrial Electronic Devices ETHERNET: The Ethernet port is used for programming the device and for MQTT communication. The Ethernet connection must be made using Connector2 of HD67932-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. -
Page 14: Use Of Compositor Sw67932
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 14 of 32 Industrial Electronic Devices USE OF COMPOSITOR SW67932: To configure the Converter, use the available software that runs with Windows called SW67932. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 15: New Configuration / Open Configuration
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 15 of 32 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “Serial / MQTT - Converter”... -
Page 16: Software Options
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 16 of 32 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 17 User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 17 of 32 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software. ADFweb.com S.r.l.
-
Page 18: Set Communication
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 18 of 32 Industrial Electronic Devices SET COMMUNICATION: By Pressing the “Set Communication” button from the main window for SW67932 (Fig. 2) the window “Set Communication” appears (Fig. 3). The window is divided in different sections in order to define the different parameters of the converter: Serial... - Page 19 User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 19 of 32 Industrial Electronic Devices ERIAL This section is used to define the main parameters of Serial line. The means of the fields are: In the field “Serial” the serial port to use is defined (RS232 or RS485); In the field “Baudrate”...
- Page 20 User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 20 of 32 Industrial Electronic Devices In the field “QoS Will” the QoS type for Will message is defined; Im the field “Username” the username for the connection to the MQTT server is defined; In the field “Password”...
- Page 21 User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 21 of 32 Industrial Electronic Devices This section is used to define the general parameters of Wi-Fi. It is possible to defined the type of Wi-Fi communication: Access Point; Client.
- Page 22 User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 22 of 32 Industrial Electronic Devices The means of the fields for Client configuration are: If the field “Obtain an IP Address automatically” is checked, the converter gets the IP Address using DHCP. Otherwise, the IP Address is defined as static;...
- Page 23 User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 23 of 32 Industrial Electronic Devices NTP (N ETWORK ROTOCOL This section is used to define the parameters of NTP protocol. The means of the fields are: In the field “Server URL”...
-
Page 24: Mqtt Set Topic
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 24 of 32 Industrial Electronic Devices MQTT SET TOPIC: By Pressing the “MQTT Set Topic” button from the main window for SW67932 (Fig. 2) the window “Set MQTT Topics” appears (Fig. 4). This section is used to define the MQTT topics where the converter will publish the data from Serial and the topic that the converter will subscribes for writing the data to Serial. -
Page 25: Update Device
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 25 of 32 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 26 User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 26 of 32 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67932 device. Warning: If Fig. 6 appears when you try to do the Update try these points before seeking assistance: Check if the serial COM port selected is the correct one;...
-
Page 27: Template String: Ethernet And Mqtt Payload
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 27 of 32 Industrial Electronic Devices TEMPLATE STRING: ETHERNET AND MQTT PAYLOAD In the section “MQTT Set Topic” of the SW67932, it is possible to define the expected format of the Ethernet message received/transmitted. This feature allows to define a fixed part of the Ethernet message and some parts to map from/to MQTT side. - Page 28 User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 28 of 32 Industrial Electronic Devices At this point, it is possible to define the “Template” as preferred. An example can be using JSON format: “ID”: “$ID$”, “REG”: “$REG$”, “DESC”: “$DESC$”, “DATA”: “$DATA$”...
-
Page 29: Mechanical Dimensions
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 29 of 32 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 7: Mechanical dimensions scheme for HD67932-x-B2 ADFweb.com S.r.l. -
Page 30: Ordering Informations
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 30 of 32 Industrial Electronic Devices ORDERING INFORMATIONS: The ordering part number is formed by a valid combination of the following: HD67932 - x – B 2 Connectors Type 2: Fixed Screw Terminal Enclosure Type B: Modulbox 2M, 35mm DIN Rail mounting... -
Page 31: Disclaimer
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 31 of 32 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 32: Warranties And Technical Support
User Manual Serial / MQTT Document code: MN67932_ENG Revision 1.000 Page 32 of 32 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
