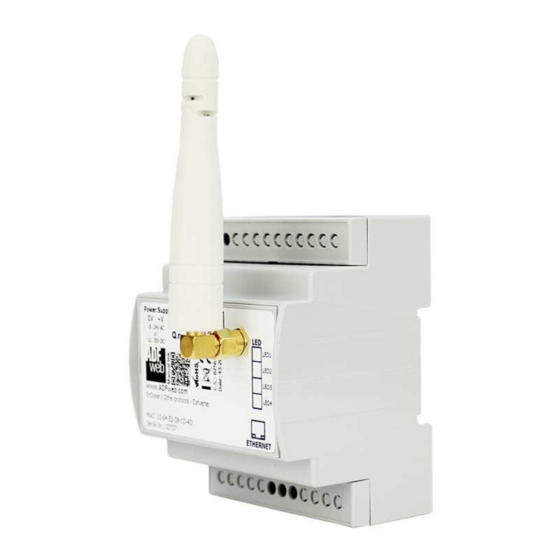

- Page 1 Revision 1.000 Page 1 of 29 Industrial Electronic Devices User Manual Revision 1.000 English LoRaWAN / KNX - Converter (Order Code: HD67D27-B2-868MHz) For others LoRaWAN products, see also the following links: For Website information: www.adfweb.com?Product=HD67D27-B2 Converter LoRaWAN to www.adfweb.com?Product=HD67D01 (Modbus Master) www.adfweb.com?Product=HD67D02...
-
Page 2: Table Of Contents
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 2 of 29 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is: INDEX UPDATED DOCUMENTATION Updated... -
Page 3: Security Alert
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 3 of 29 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application. -
Page 4: Example Of Connection
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 4 of 29 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l. -
Page 5: Connection Scheme
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 5 of 29 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67D27-B2-xxxMHz ADFweb.com S.r.l. -
Page 6: Characteristics
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 6 of 29 Industrial Electronic Devices CHARACTERISTICS: The HD67D27-B2 is a LoRaWAN / KNX Converter. It allows the following characteristics: Electrical isolation between KNX and Power Supply; Mountable on 35mm Rail DIN; Wide power supply input range: 12…35V DC and 8…24V AC;... -
Page 7: Power Supply
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 7 of 29 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin Vmax Vmin Vmax Consumption at 24V DC:... -
Page 8: Function Modes
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 8 of 29 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device. The second, with ‘Dip1 of Dip-Switch A’... -
Page 9: Leds
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 9 of 29 Industrial Electronic Devices LEDS: The device has got four LEDs that are used to give information of the functioning status. The various meanings of the LEDs are described in the table below. Normal Mode Boot Mode Blinks quickly: Boot state... -
Page 10: Lorawan
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 10 of 29 Industrial Electronic Devices LORAWAN: The LoRaWAN® specification is a Low Power, Wide Area (LPWA) networking protocol designed to wirelessly connect battery operated ‘things’ to the internet in regional, national or global networks, and targets key Internet of Things (IoT) requirements such as bi- directional communication, end-to-end security, mobility and localization services. -
Page 11: Knx
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 11 of 29 Industrial Electronic Devices KNX: KNX is the standard that allows the automated and decentralized management of the technologic plans of a big typology of structures: commercial buildings, factories, houses, public locals, schools and so on. KNX can be used in all the applications and functions for the building automations: from lighting to control dampers, to the security, to the heating monitoring, to the conditioning, to the hydric control and alarms, to energy management and so on. -
Page 12: Ethernet
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 12 of 29 Industrial Electronic Devices ETHERNET: The Ethernet port is used for programming the device. The Ethernet connection must be made using Connector2 of HD67D27-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. -
Page 13: Use Of Compositor Sw67D27
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 13 of 29 Industrial Electronic Devices USE OF COMPOSITOR SW67D27: To configure the Converter, use the available software that runs with Windows called SW67D27. It is downloadable on the site www.adfweb.com and its operation is described in this document. -
Page 14: New Configuration / Open Configuration
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 14 of 29 Industrial Electronic Devices NEW CONFIGURATION / OPEN CONFIGURATION: “New Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “LoRaWAN / KNX - Converter”... -
Page 15: Software Options
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 15 of 29 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor. - Page 16 User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 16 of 29 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software. ADFweb.com S.r.l.
-
Page 17: Set Communication
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 17 of 29 Industrial Electronic Devices SET COMMUNICATION: By Pressing the “Set Communication” button from the main window for SW67D27 (Fig. 2) the window “Set Communication” appears (Fig. 3). The means of the fields for the “LoRaWAN”... - Page 18 User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 18 of 29 Industrial Electronic Devices The means of the fields for “KNX” are: In the field “Type” the type of KNX is defined (fixd to ‘KNX TP’); In the field “ID Device”...
-
Page 19: Lorawan Access
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 19 of 29 Industrial Electronic Devices LORAWAN ACCESS: By Pressing the “LoRaWAN Access” button from the main window for SW67D27 (Fig. 2) the window “Set LoRaWAN Access” appears (Fig. This section is used to define the LoRAWAN messages where the converter will place the data read from KNX (Uplink) and the LoRAWAN messages that the converter will take (Downlink) for writing the data to KNX. - Page 20 User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 20 of 29 Industrial Electronic Devices WAN D OWNLINK Figure 4b: “LoRAWAN Access LoRaWAN Downlink” window The means of the fields are: If the field “Enable” is checked, the LoRaWAN message is enabled; In the field “Start Byte”...
-
Page 21: Knx Access
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 21 of 29 Industrial Electronic Devices KNX ACCESS: By pressing the “KNX Access” button from the main window for SW67D27 (Fig. 2) the “KNX Access” window appears (Fig. 5). The means of the fields are: If the field “Enable”... - Page 22 User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 22 of 29 Industrial Electronic Devices In the field “Bit Mode” insert the start bit of the first byte of the field “Position” where start to insert the data read; In the field “Lenght”...
-
Page 23: Update Device
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 23 of 29 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port. - Page 24 User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 24 of 29 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67D27 device. Warning: If Fig. 7 appears when you try to do the Update try these points before seeking assistance: Try to repeat the operations for the updating;...
-
Page 25: Lorawan Payload
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 25 of 29 Industrial Electronic Devices LORAWAN PAYLOAD The LoRAWAN messages in Uplink and Downlink are structured into a defined format in order to recognize them from LoRaWAN gateway side and to understand to which KNX messages they are associated. -
Page 26: Mechanical Dimensions
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 26 of 29 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 8: Mechanical dimensions scheme for HD67D27-B2 ADFweb.com S.r.l. -
Page 27: Ordering Informations
Enclosure Type B: Modulbox 4M, 35mm DIN Rail mounting Device Family HD67D27: LoRaWAN / KNX - Converter Order Code: HD67D27-B2-868MHz LoRaWAN / KNX – Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –... -
Page 28: Disclaimer
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 28 of 29 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal. For losses due to fire, earthquake, third party access or other accidents, or intentional or accidental abuse, misuse, or use under abnormal conditions repairs are charged to the user. -
Page 29: Warranties And Technical Support
User Manual LoRaWAN / KNX Document code: MN67D27_ENG Revision 1.000 Page 29 of 29 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com RETURN POLICY: If while using your product you have any problem and you wish to exchange or repair it, please do the following: Obtain a Product Return Number (PRN) from our internet support at www.adfweb.com.
