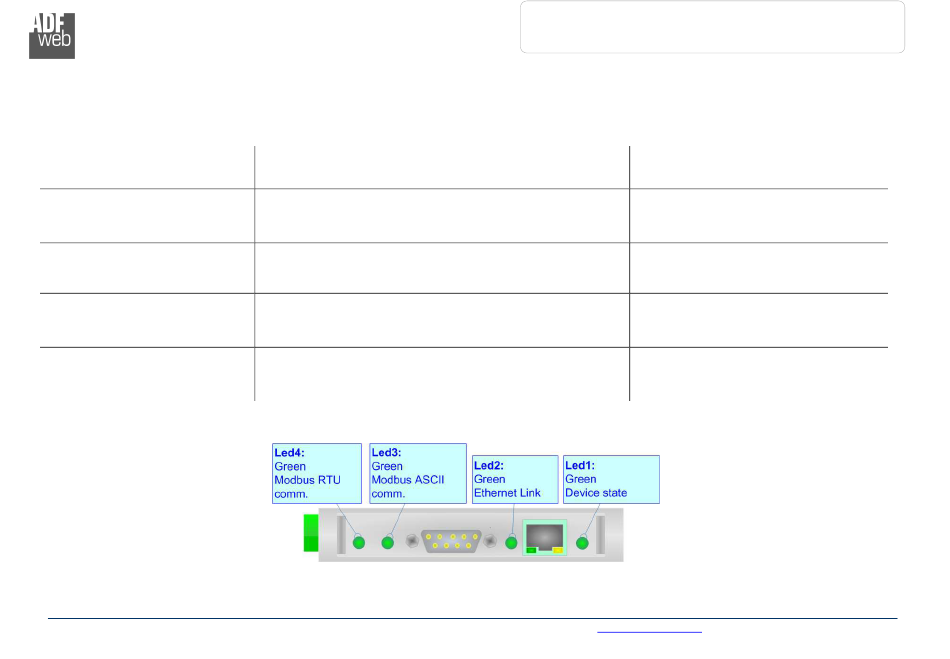

LEDS:

The device has got four LEDs that are used to give information of the functioning status.
The various meanings of the LEDs are described in the table below.
LED
1: Device State (green)
2: Ethernet Link (green)
3: Modbus ASCII comm. (green)
4: Modbus RTU comm. (green)
ADFweb.com Srl – IT31010 – Mareno – Treviso
Normal Mode
Blink slowly
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
It blinks when a correct Modbus ASCII frame is received
It blinks when a correct Modbus RTU frame is received
User Manual Modbus RTU / Modbus ASCII
Document code: MN67075_ENG
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update
in progress
ON: Ethernet cable connected
OFF: Ethernet cable disconnected
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update
in progress
Blinks quickly: Boot state
Blinks very slowly (~0.5Hz): update
in progress
INFO: www.adfweb.com
Revision 1.100 Page 9 of 23
Boot Mode
