Prodys PortaNet Hardware And Reference Manual page 35

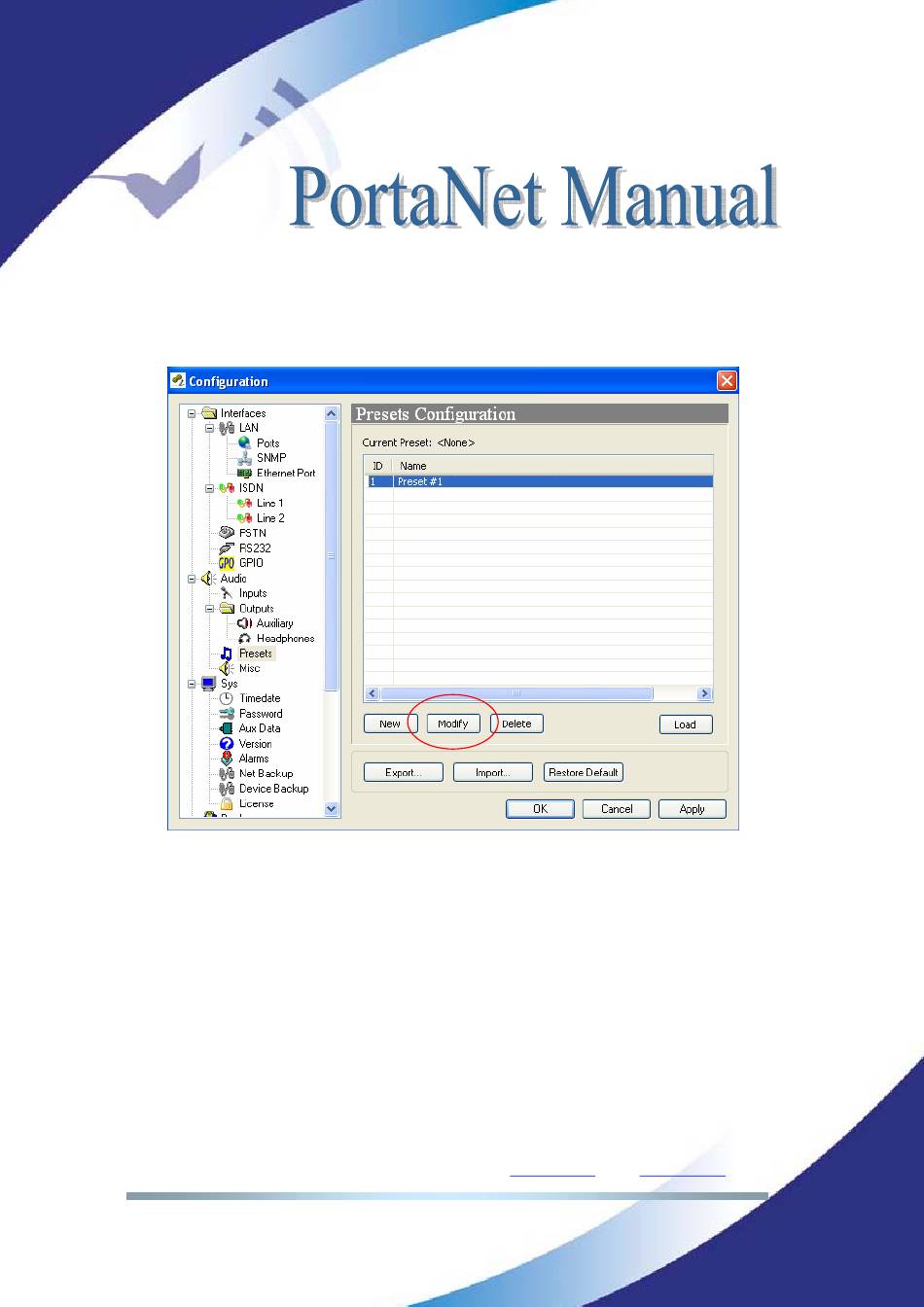

IV.3 Modifying a preset
To modify an audio preset, just select one entry of the Audio Presets table and
click on modify.
The configuration window for that preset will appear with the current values for
that Preset. Edit or modify the values as required and press the "OK" button for
the changes to take effect.
IV.4 Loading a preset
Once a preset has been selected, its configuration can be applied by clicking on
the "Load" button. The new configuration can be checked by moving through the
different audio configuration menus. Until the "Apply" or "Ok" buttons are not
pressed, the new audio configuration won't take effect.
