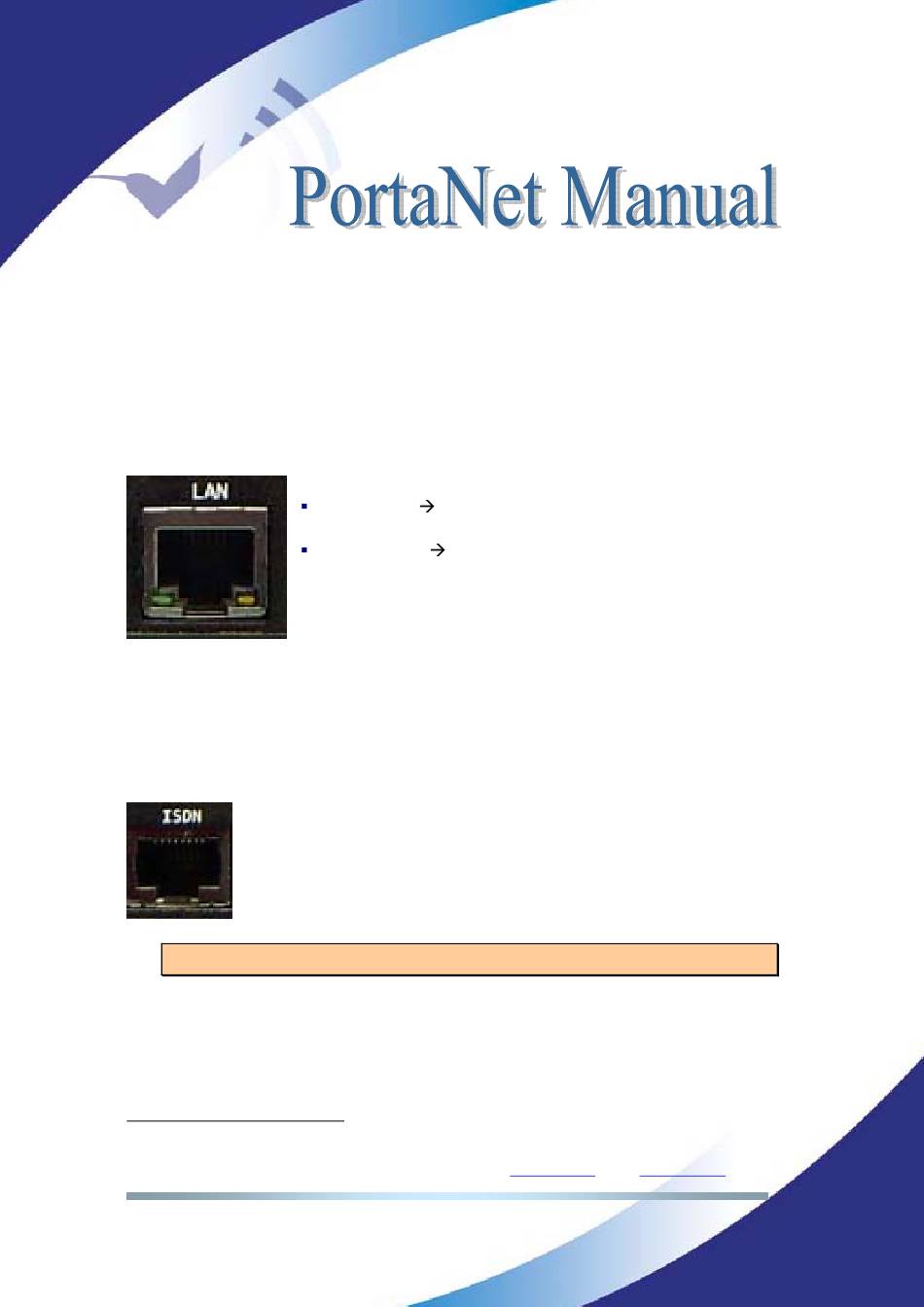

Prodys PortaNet Hardware And Reference Manual page 19

II.4.5 Ethernet port – the LAN Connector
The LAN socket is an standard 100Base-Tx (10/100 Mbps) Ethernet connection
that takes a RJ45 plug. Through this Ethernet port it is possible to transmit and
receive audio, as well as manage the equipment. Next to the socket there are
three LEDs that indicate different states for the connection and these are very
useful in problem-solving situations.
LAN LED's:
From the web interface and the front panel menu it is possible to set the speed
and duplex configuration to the following values: AUTO, 10HD, 10FD, 100HD,
1
100FD .
II.4.6 ISDN Port
The PortaNet incorporates an ISDN terminal adapter that allows
connection to a basic rate ISDN line (2B+D). It supports different
ISDN protocols (EURO_ISDN, DMS100, AT&T 5ESS and NAT1).
There is one RJ45 connector for connecting to an S/T interface
S/T (S
0
There is available a special version with U ISDN interface.
1
This option is available from version 5.2.1 onwards.
Prodys S.L. Tel: +34 91 6896880 Θ Fax: +34 91 6943777 Θ Email:
Green LED LINK STATUS: ON = Connected
Orange LED RECEIVE STATUS: On = Receiving Data.
).
Page 19
