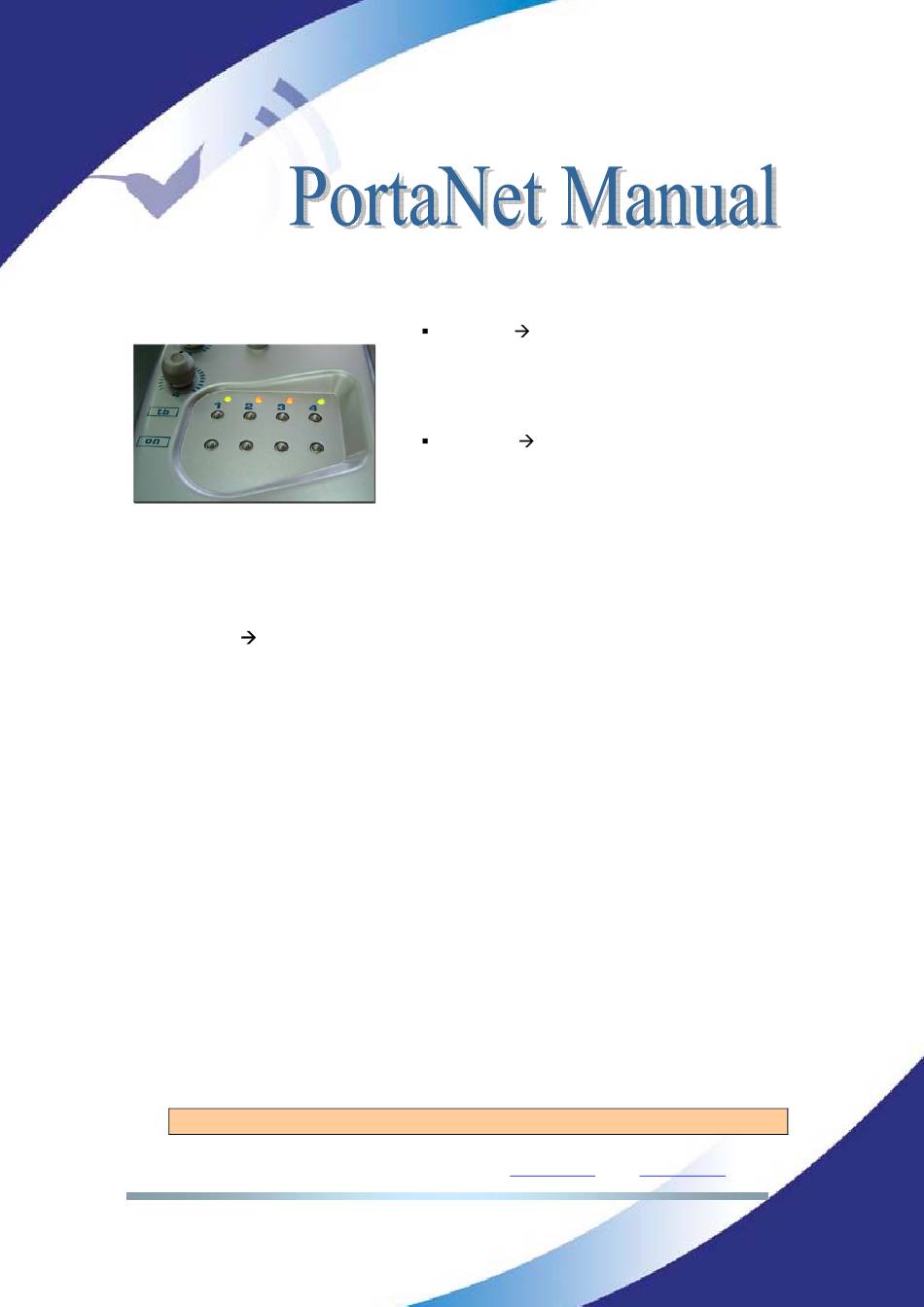

II.2.6 Input audio control keypad.
be sent through the program line (line 1) or through the coordination or
TalkBack line (line 2). Pressing the Tb key for one input causes this input
to be mixed with those signals assigned to the coordination or TalkBack
line (line 2).
LED´s There is a led related to the status of each input:
• OFF: Input disabled.
• Green: Input enabled and connected to the program line
(line 1).
• Red: Input enabled and connected to the TalkBack line (line
2).
II.2.7 Power LED
Shows the power supply status and also battery status.
-GREEN: The external power converter is powering the unit. The battery is
not connected.
-BLINKING ORANGE: The external power converter is powering the unit.
The battery is connected and it is being charged on the system.
-ORANGE: The external power converter is not powering the unit. The
battery is connected and powering the unit.
-BLINKING RED: The external power converter is not powering the unit.
The battery is connected and powering the unit, but it is about to run out
(about 20 minutes / 10% of battery capacity).
When the unit is starting, the Power LED will be blink green.
Prodys S.L. Tel: +34 91 6896880 Θ Fax: +34 91 6943777 Θ Email:
On Key Each audio input has a key to
enable/disable it. When an audio input is
enabled, it is connected to the program
line (line 1).
Tb Key PortaNet allows the user to
establish
communications, using either IP or
ISDN. Each input can be configured to
sales@prodys.net
Page 12
two independent
