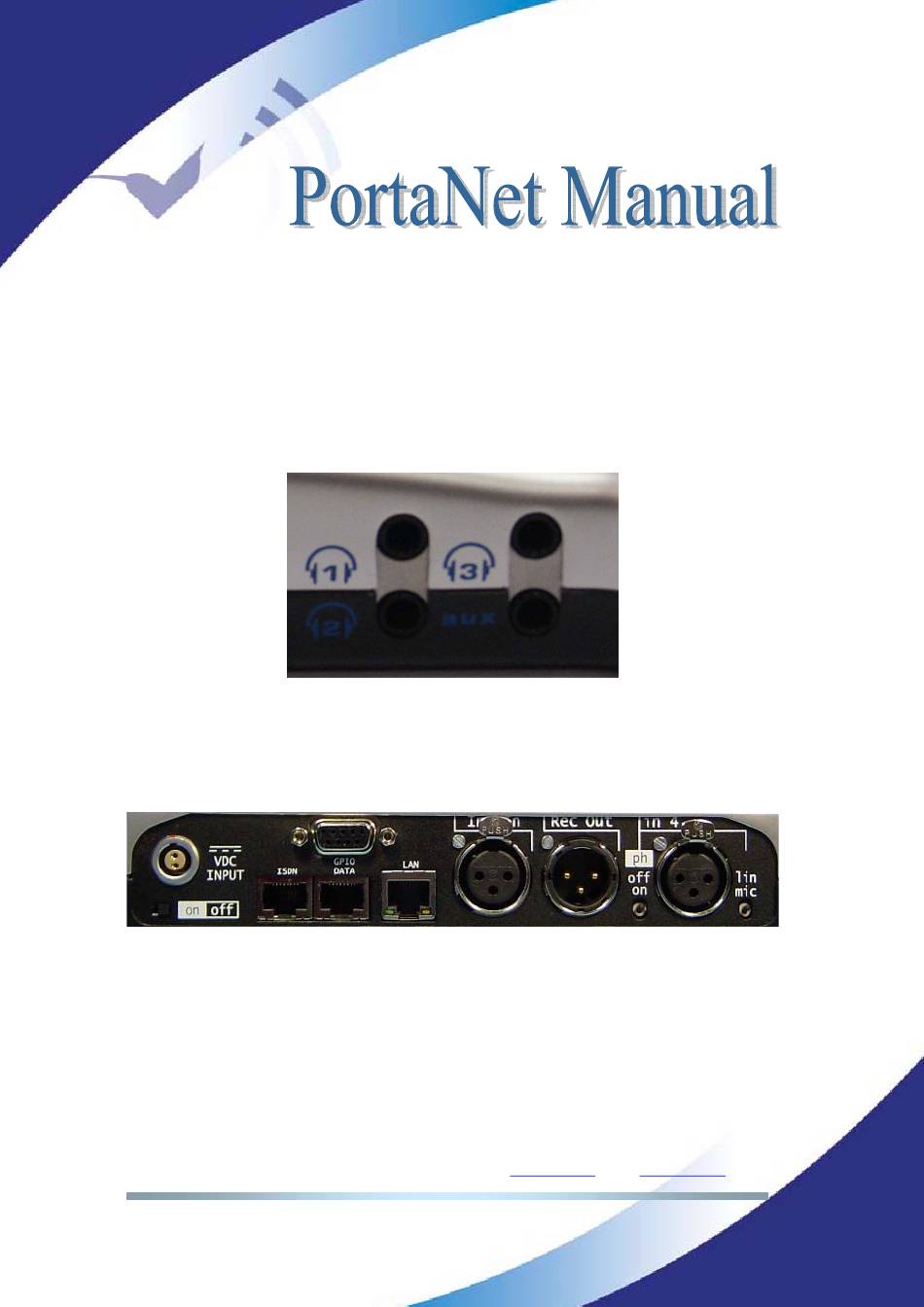

II.3.3 Line level balanced auxiliary audio output
Along with the three headphone outputs, there is a fourth output called 'aux'.
This audio output is totally independent from the headphone outputs, and it is
placed together with these only for space saving reasons. This output is a
balanced line level output, with a maximum level of +20 dBu. This output is user
configurable; that means that it is possible to define which audio signals will be
present in this output.
II.4 Rear Panel
The rest of connections are located on the rear panel:
II.4.1 Fourth MIC/LINE audio input (in 4)
The same as the inputs from the front panel, it can be configured as LINE or MIC
level, and has the possibility to be phantom powered (48 volts.) However, it
doesn't have a headphone output related. For this purpose, the 'aux' output
might be used.
