II.3 The front panel and its connectors
In the front panel there are two areas: Audio inputs and Headphone outputs.
Because of space restrictions the Auxiliary output level control is also there.
There is an additional fourth input in the rear panel. This
input doesn't have an associated headphone output.

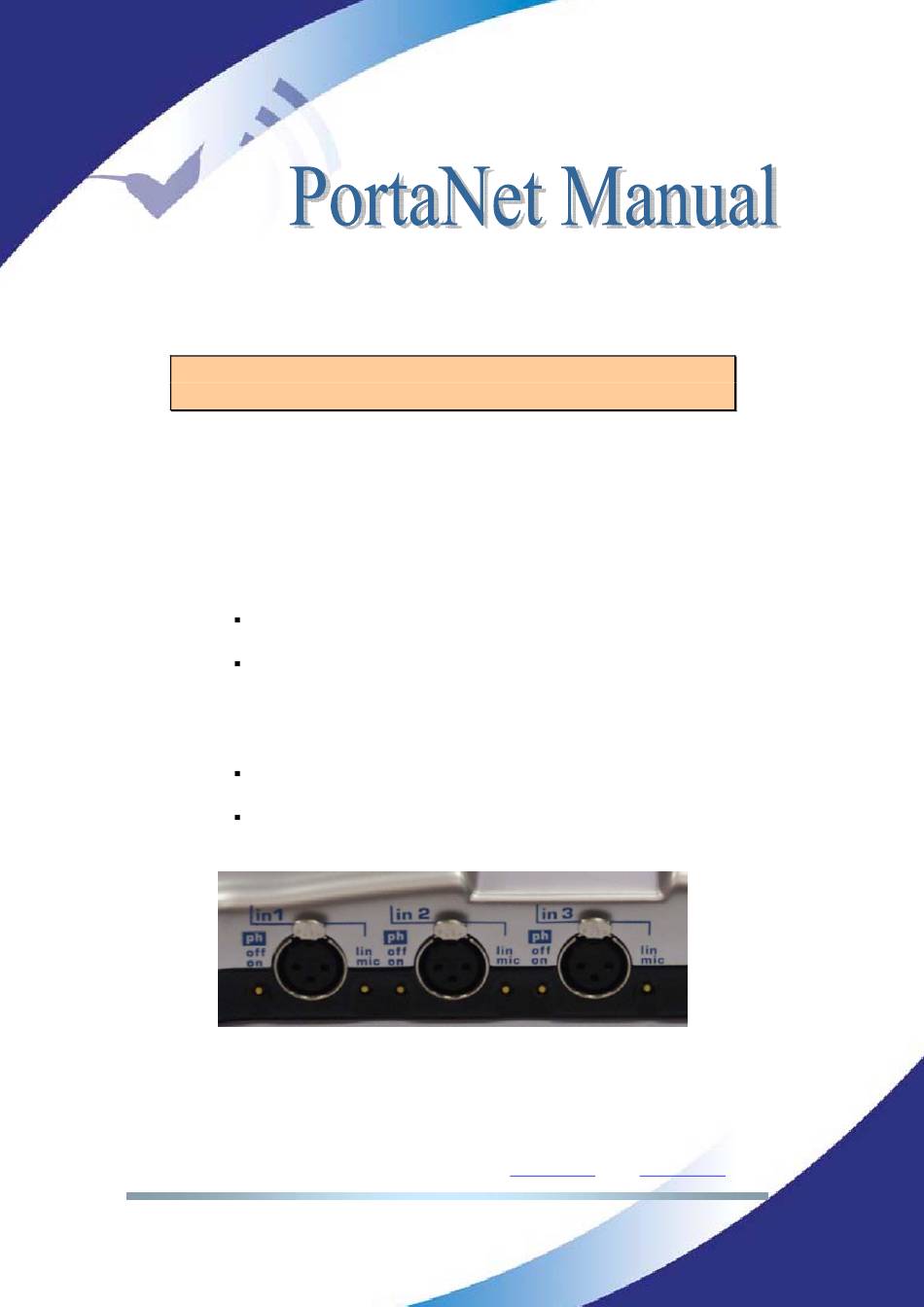

II.3.1 MIC/LINE Audio inputs
There are four MIC/LINE audio inputs. Each audio input includes a switch to
select MIC or LINE level, and another one for selecting whether to supply 48
volts. phantom power to the MIC.
line/mic switch:
When this switch is in the UP position, the line level input is
selected (maximum input level +20 dBu).
When this switch is in the DOWN position, this input is
configured to work as a MIC level input.
ph
swtich(48 volts. Phantom powered):
When this switch is in the UP position (OFF), this option is
disabled.
When this switch is in the down position (ON), this option is
enabled.
Each audio input can be adjusted independently, either locally with the knobs on
the left area of the front panel, or remotely from the following window on the
web page:
Prodys S.L. Tel: +34 91 6896880 Θ Fax: +34 91 6943777 Θ Email:
sales@prodys.net
Page 13
Θ Web:
www.prodys.com
