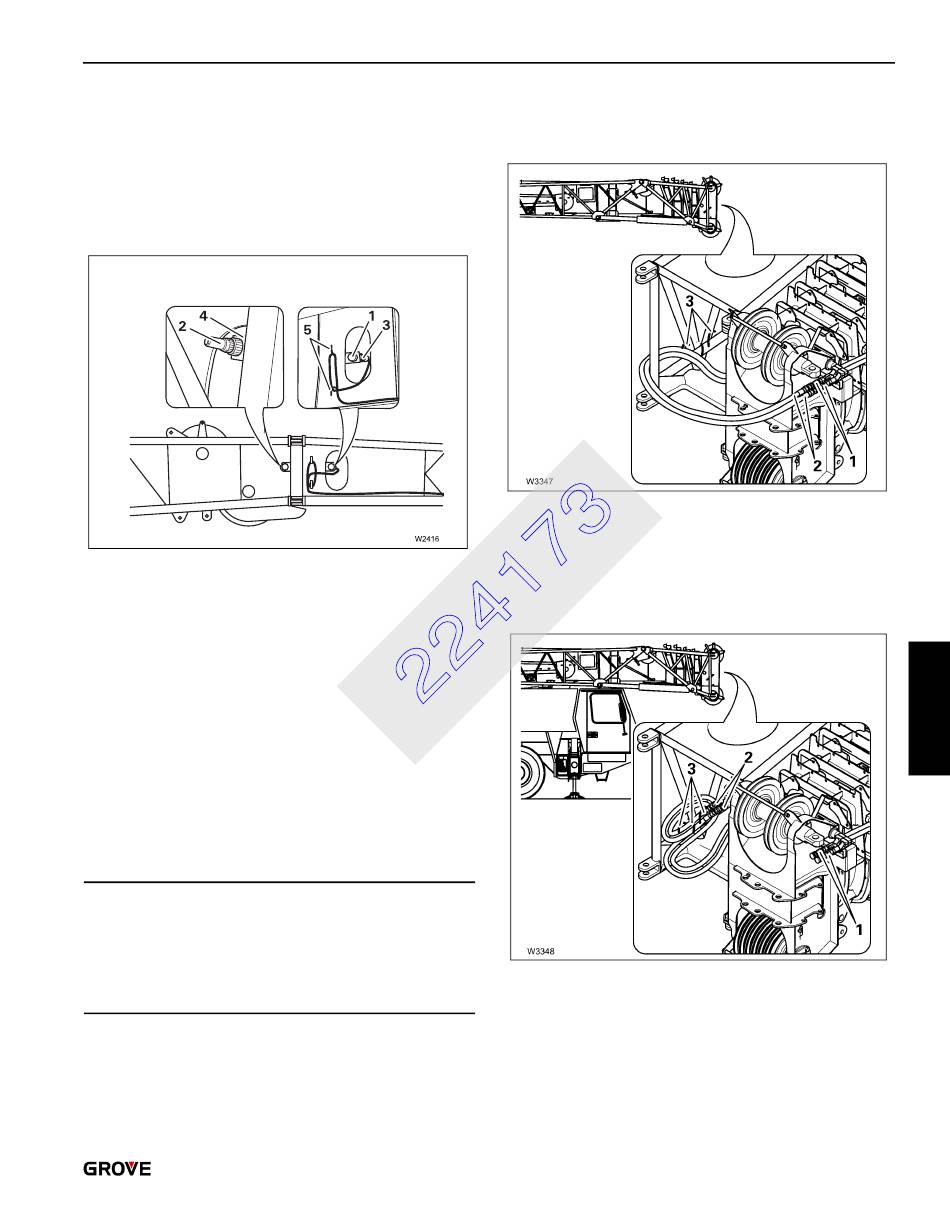

• Remove the dummy plug (2) from the socket (4) on the
33 ft (10.1 m) section and insert it in the dummy socket
(1) on the 23 ft (7 m) section.
• Insert the plug (3) in the socket (4) on the 33 ft (10.1 m)
section.
Disconnecting electrical connection
• Remove the plug (3) from the socket (4) on the 33 ft
(10.1 m) section.
• Remove the dummy plug (2) from the dummy socket (1)
on the 23 ft (7 m) section and insert it in the socket (4) on
the 33 ft (10.1 m) section.
• Insert the plug (3) in the dummy socket on the 23 ft (7 m)
section.
• Wind the cable onto the take-up reel (5).
Establishing/Disconnecting the Hydraulic
Connection
The hydraulic supply is required for derricking the lattice
extension. Before establishing the connection, the
connections on the hose drum must be in the working with
the lattice extension position.
CAUTION
Risk of damage to hydraulic hoses!
When establishing the connection, always move the
hoses right out of the 33 ft (10.1 m) section. If the hoses
are moved out of the front of the 33 ft (10.1 m) section,
they will be damaged if the lattice extension turns.
SET-UP AND INSTALLATION
Establishing the Hydraulic Connection
• Take the hose line (2) out of the holders (3) on the 33 ft
(10.1 m) section and remove the protective cap.
• Pull the hose lines right out of the 33 ft (10.1 m) section
and guide the hose lines to the left side of the main
boom head.
• Remove the protective caps from the quick couplings (1)
and connect the hose lines there (observe color code).
Remove the Hydraulic Connection
• Remove the hose pipes (3) from the quick couplings (2)
on the main boom head.
• Seal the quick couplings with the protective caps.
• Squeeze the hose pipes into the holders (1) on the 33 ft
(10.1 m) section.
• Close the hose ends with the protective caps.
